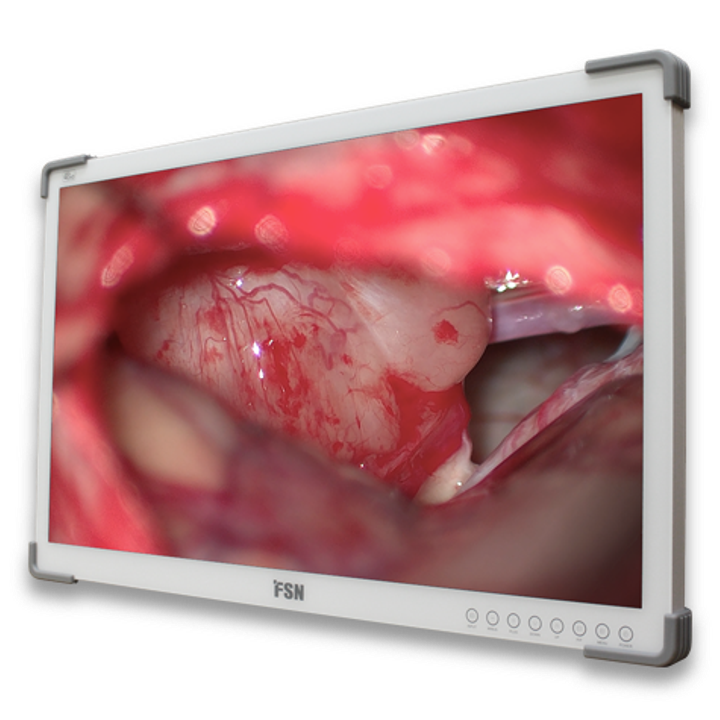

FSN 32" LED VIDEO MONITOR FS-L3202D | C.R. Kennedy

FSN 32" LED VIDEO MONITOR

FSN 32" LED VIDEO MONITOR

PRODUCT ENQUIRY
FSN monitors are designed to reproduce multi-modality imaging, using an extensive selection of input connections, and comprehensive signal timing tables.
Brand: FSN Monitors   |    Code: FS-L3202D
APN: 8809278920223   |    Supplier Code:



FSN monitors are designed to reproduce multi-modality imaging, using an extensive selection of input connections, and comprehensive signal timing tables. Picture-in-picture or picture-by-picture screen layouts can be fully adjusted for size and position, giving surgeons the flexibility to work with video images tailored to their preference. FSN display monitors are designed without an internal fan. This eliminates the spread of contaminates and makes the monitor better suited for the sterile field in an operating room.Displays live medical video signals at peak resolutionImage control includes size, position, over scan, zoom, pan, freezeArtifact-free images for confident decision making during surgeryConforms to Electromagnetic Directive 2004/108/EC and 93/42/EECCompatible with analog or digital video sourcesA high-end visualization system with in-service dependabilityReduce cable clutter with the back cover plate

  • 32 inch TFT LCD (LED)
  • 1920 x 1080 pixel
  • Aspect Ratio 16:9
  • Active Area 698.4 (W) X 392.9 (H) (mm)
  • Surface Luminance 450 cd/m2
  • Contrast Ratio 1300 : 1 typical
  • Response Time (G-to-G) 22 ms (avg.)
  • Input Signal: 2 x DVI-D 2 x SD/HD/3G-SDI (BNC) 2 x SOG 1 x VGA (D-sub) 1 x C-Video (BNC) 1 x S-Video (DIN) 1 x Component (RGBS, YPbPr) (5 x BNC)
  • Output Signal: 2 x DVI-D 2 x SD/HD/3G-SDI (BNC) 2 x SOG 1 x C-Video (BNC) 1 x S-Video (DIN) 1 x Component (RGBS, YPbPr) (5 x BNC)
  • Power Supply AC/DC Adaptor (AC 100-240V~, DC 24V 6.25A)
  • Unit Dimension 770 (W) x 471.5 (H) x 80.5 (D) (mm)
  • Weight 12.8 kg, 28.2 lbs
  • Pixel Pitch 0.27 (W) x 0.27 (H)
  • Mounting 100 x 100 mm, 200 x 100 mm, 300 x 100 mm, M4 400mm x 200mm, M6
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

FEATURES



FSN monitors are designed to reproduce multi-modality imaging, using an extensive selection of input connections, and comprehensive signal timing tables. Picture-in-picture or picture-by-picture screen layouts can be fully adjusted for size and position, giving surgeons the flexibility to work with video images tailored to their preference. FSN display monitors are designed without an internal fan. This eliminates the spread of contaminates and makes the monitor better suited for the sterile field in an operating room.Displays live medical video signals at peak resolutionImage control includes size, position, over scan, zoom, pan, freezeArtifact-free images for confident decision making during surgeryConforms to Electromagnetic Directive 2004/108/EC and 93/42/EECCompatible with analog or digital video sourcesA high-end visualization system with in-service dependabilityReduce cable clutter with the back cover plate

SPECIFICATIONS

  • 32 inch TFT LCD (LED)
  • 1920 x 1080 pixel
  • Aspect Ratio 16:9
  • Active Area 698.4 (W) X 392.9 (H) (mm)
  • Surface Luminance 450 cd/m2
  • Contrast Ratio 1300 : 1 typical
  • Response Time (G-to-G) 22 ms (avg.)
  • Input Signal: 2 x DVI-D 2 x SD/HD/3G-SDI (BNC) 2 x SOG 1 x VGA (D-sub) 1 x C-Video (BNC) 1 x S-Video (DIN) 1 x Component (RGBS, YPbPr) (5 x BNC)
  • Output Signal: 2 x DVI-D 2 x SD/HD/3G-SDI (BNC) 2 x SOG 1 x C-Video (BNC) 1 x S-Video (DIN) 1 x Component (RGBS, YPbPr) (5 x BNC)
  • Power Supply AC/DC Adaptor (AC 100-240V~, DC 24V 6.25A)
  • Unit Dimension 770 (W) x 471.5 (H) x 80.5 (D) (mm)
  • Weight 12.8 kg, 28.2 lbs
  • Pixel Pitch 0.27 (W) x 0.27 (H)
  • Mounting 100 x 100 mm, 200 x 100 mm, 300 x 100 mm, M4 400mm x 200mm, M6
