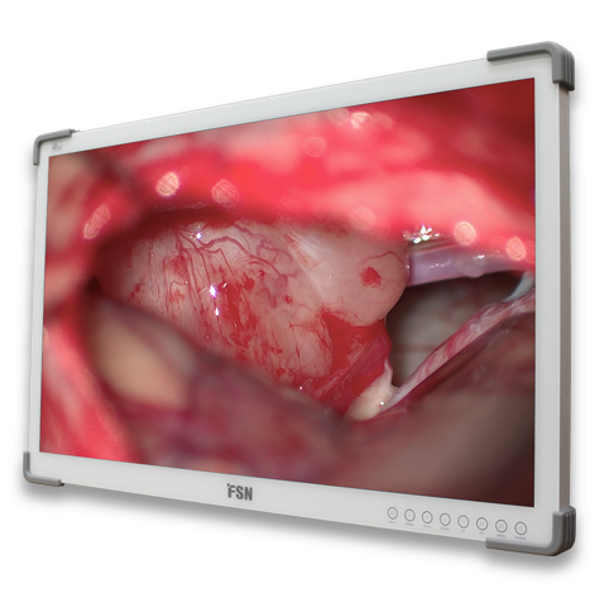

FSN 32 inch 4K Medical Display
FSN monitors are designed to reproduce multi-modality imaging, using an extensive selection of input connections, and comprehensive signal timing tables.
| Item | Description |
|---|---|
| Panel | 32 inch TFT LCD (LED) |
| Resolution | 3840 x 2160 pixels |
| Aspect Ratio | 16 : 9 |
| Active Area | 708.48 (H)mm x 398.82 (V)mm |
| Pixel Pitch (mm) | 0.1845 x 0.1845 |
| Response Time (typical) | 8 ms (rise time) |
| Number of Colors | 1.07 Billion |
| Brightness (typical) | 700 cd/m2 |
| Gamut | BT.709 and BT.2020 compatible |
| Contrast Ratio (typical) | 1350 : 1 |
| Surface Treatment | Anti-glare |
| Viewing Angle (CR>10) | R/L 178°, U/D 178° |
| Input Signal FM-E3203D | 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI (single link) |
| Input Signal FM-E3203DG | 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI (single link), 4 x SDI (3G), 2 x SDI (12G) |
| Output Signal FM-E3203D | 1 x DP 1.2 (SST), 1 x DVI (single link) |
| Output Signal FM-E3203DG | 1 x DP 1.2 (SST), 1 x DVI (single link), 4 x SDI (3G), 2 x SDI (12G) |
| Power Supply | AC/DC Adaptor (AC 100~240V, DC 24V/6.6A) |
| Power Consumption FM-E3203D | 105W max |
| Power Consumption FM-E3203DG | 125W max |
| Accessories Included | User manual, AC-DC adaptor, AC power cord, DP cable, HDMI cable, DVI-D cable, BNC cable (SDI models), Screw BH M4 x 14 |
| Unit Dimension | 773(W) x 478(H) x 75.2(D) mm, 30.43(W) x 18.82(H) x 2.96(D) inch |
| Package Dimension | 914.4(W) x 749.3(H) x 234.95(D) mm, 36(W) x 29.5(H) x 9.25(D) inch |
| IP Rating | IP33 - overall, IP44 - front side only |
| IK Rating | IK07 with 5H AR glass |
| Weight FM-E3203D | 11.56 kg, 25.49 lbs. (monitor with cover), 16.83 kg, 37.10 lbs. (shipping package) |
| Weight FM-E3203DG | 11.80 kg, 26.01 lbs. (monitor with cover), 17.5 kg, 38.58 lbs. (shipping package) |
| Certifications | ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device |
| Datasheets | |
|---|---|
| FSN 32 inch 4K Medical Display - Datasheet |
Brand: FSN Monitors |
Code: FM-E3203DG
Supplier Code: FM-E3203DG-DD1
Brand: FSN Monitors |
Code: FM-E3203DG
Supplier Code: FM-E3203DG-DD1
At a glance
FSN monitors are designed to reproduce multi-modality imaging, using an extensive selection of input connections, and comprehensive signal timing tables.
Related Categories Medical Grade Monitors
