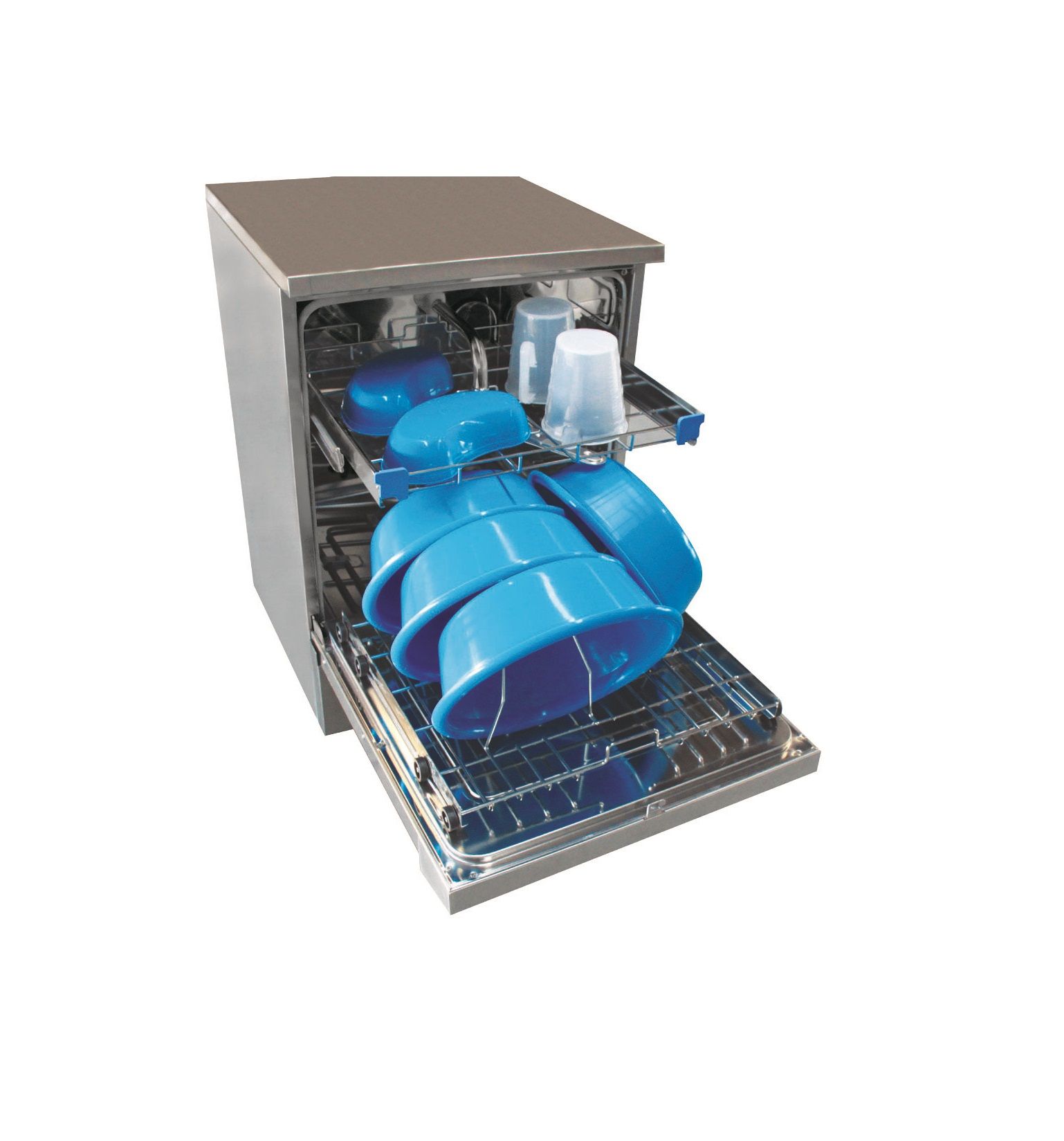

DS 500 LED

DS 500 LED

PRODUCT ENQUIRY
Hygiene within hospitals, nursing homes, geriatric wards, rehabilitation centres
Brand: Steelco   |    Code: STEEL-9920228
APN: 9319499761578   |    Supplier Code: STEEL-9920228

Automatic Washing and Sanitizing Contrary to domestic or industrial dishwashers, Mercer medical devices have been certified for the reprocessing of medical items.

Hygiene requirements within nursing homes, geriatric wards, rehabilitation centres and private clinical shall be very high in order to protect patients, particularly the eldest, who are exposed to great risks of infections due to their weakened immune system.

Professional washing together with sanitization of all common-use items which could be potentially contaminated (such as bedpans, Urinals, wash bowls, kidney dishes, vases and other small accessories) can improve hygiene standards within those facilities, ensuring the patients' health as well as that of staff and guests.

Key Features

  • Double wall construction and thorough insulation reduce electricity consumption and heat loss.
  • Washing and disinfection temperature are fully adjustable up to 93°C. Temperature is monitored by two independent sensors
  • Standard steam condenser prevents vapours from entering into the washing area.
  • Heavy washing pump ensures high flow rate combined with effective spray pressure.
  • Inner cabinet, washing arms and tank filters made of high quality AISI 316 L stainless steel.
  • Accurate dosing system of liquid chemicals.
  • Two automatic liquid dispensers are standard and equipped with level control.
  • Three water connections are available, cold, warm and DI water.
  • RS 232 port connection for monitoring and validating washing phases.

Dimensions and connections

  • Chamber volume: ~171 lt / 45.17 Gal Us
  • Basket volume: ~151 lt / 39.89 Gal US
  • Standard electrical connection (International): 230V/~/50Hz
  • Power: 3050 W
  • Pump power: 550 W
  • Noise: 52 dB(A)
  • Permitted room temperature: +5°C/41°F - +40°C/104°F
  • Electrical Connection Fuse Rating Total connected power - Voltage: 240V – 50 Hz, 20 Amps HPA, 4300 W
  • Water Supply Pressure: Minimum: 100 Kpa, Maximum 500 Kpa Drain connection: 25mm Connection size - Water (cold & warm): .”

*other electrical connections also available as optional Dimensions and connections

Long lasting devices

  • Inner cabinet, washing arms and tank filters made of high quality AISI 316L stainless steel (DIN 1.4404).
  • External cabinet made of AISI 304 stainless steel (DIN 1.4301).
  • Construction system with total removal of angles.
  • Self cleaning tank with rounded edges.
  • Water filtering system in three levels.
