The principle of operation is based on fine forced circulation of air in connection with patent-protected powerful cooling located in the chamber. The cooling system together with multi-processor control automatics offers exact and economical simulation of selected natural processes and it reduces samples evaporation.
Programmable Exposition Lighting
New generation of the FRIOCELL® device offers wide possibilities of selected lighting use. The variability of placement, selection of light sources, user friendliness and possibility of fluent intensity control meet even the most demanding requirements towards applications with exposure lighting.
- Fluorescent tubes in doors
- Fluorescent Tubes in shelves
- LED lighting in the door
- White LED lighting in shelves
Product Series Description
The FRIOCELL® product line can be used in biotechnology, botany, zoology, food industry, cosmetics, chemical industry, etc. The patented system of cooling and air flow in the chamber guarantee a rapid and precise reaching of the selected temperature profile in the chamber and consequently an ideal process of sample heating.
The FRIOCELL product line offers high operating comfort, precise regulation, and possibility to reach even extreme short times of temperature changes and short times of temperature recovery in the chamber after the door opening. It is therefore suitable for demanding and exact tests and sample cultivation processes.
Meeting the requirements of regulations 2014/35/EU, 2014/30/EU, ICH 279/95 Option 2, FDA 21 Part 11, 2011/65/EU, 517/2014/EU.
Basic Design Components

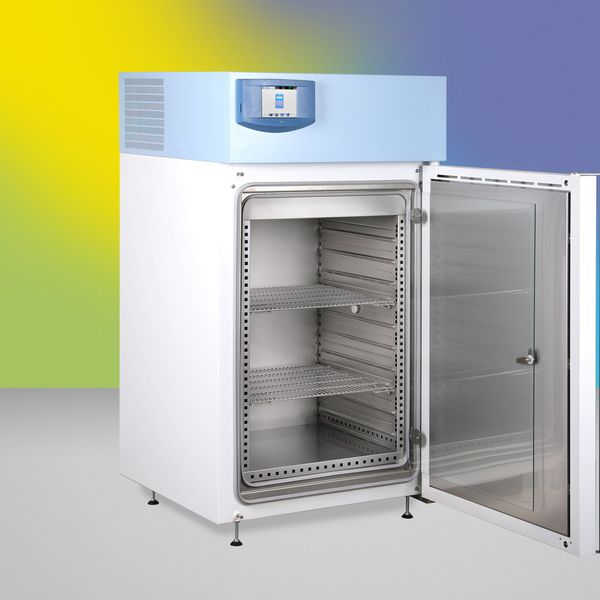

Sturdy design and perfect protection against corrosion are ensured by a self-supporting outer jacket made of galvanized steel sheet with hard and resistant baking varnish on the outer side. The inner double-jacket chamber and the door panel are made of high-quality stainless steel (DIN 1.4301, AISI 304). For the purposes of energy saving and minimizing the heat radiated to the ambient air, the chamber is perfectly insulated with an ecological insulating material. The inner walls of the chamber can be easily removed without using any tool, e.g. for the purposes of cleaning. On top of that the chamber has a fan with a speed regulation, and an inner glass door. The door is secured at four points for perfect tightening.
