FSN monitors are designed to reproduce multi-modality imaging, using an extensive selection of input connections, and comprehensive signal timing tables.

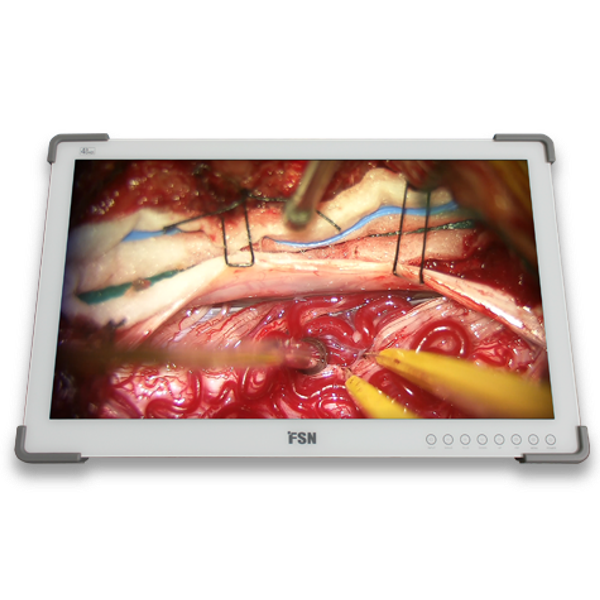

FM-B2702D series are designed to show the finest details during minimally invasive procedures such as endoscopy or laparoscopy. This monitor will accept multiple video signals, and has layout options for PIP and PBP. When two images are displayed, they can be swapped, re-sized, or moved to a different section of the screen.
FM-B2702D has video connections for HDMI, DisplayPort, and DVI. FM-B2702DG adds support 3G and 12G SDI, giving it the ultimate in current and future video signal compatibility. FSN monitors are designed for fast detection of incoming signals thanks to robust mode tables.
Unique design features include flush-front glass (ingress protection 33 rating) and touch menu control for easy cleaning and disinfection. There are no recessed areas on the front screen, thus eliminating collection points for unwanted material. These monitors come with built in protective bumpers on the bezel corners to guard against accidental contact.
Item | Description |
---|---|
Panel | 27 inch TFT LCD (LED) |
Resolution | 3840 x 2160 pixel |
Aspect Ratio | 16 : 9 |
Active Area | 596.74 (H)mm x 335.66 (V)mm |
Pixel Pitch (mm) | 0.1554 x 0.1554 |
Response Time (typical) | 11 ms (rise time) |
Number of Colors | 1.07 billion |
Brightness (typical) | 800 cd/m2 |
Gamut | BT.709 and BT.2020 compatible |
Contrast Ratio (typical) | 1400 : 1 |
Surface Treatment | Anti-glare |
Viewing Angle (CR>10) | R/L 178°, U/D 178° |
Input Signal FM-B2702D | 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI (single link) |
Input Signal FM-B2702DG | 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI (single link), 4 x SDI (3G), 2 x SDI (12G) |
Output Signal FM-B2702D | 1 x DP 1.2 (SST), 1 x DVI (single link) |
Output Signal FM-B2702DG | 1 x DP 1.2 (SST), 1 x DVI (single link), 4 x SDI (3G), 2 x SDI (12G) |
Power Supply | AC/DC Adaptor (AC 100~240V, DC 24V/6.6A) |
Power Consumption FM-B2702D | 85W max |
Power Consumption FM-B2702DG | 100W max |
Accessories Included | User manual, AC-DC adaptor, AC power cord, DP cable, HDMI cable, DVI-D cable, BNC cable (SDI models), Screw BH M4 x 14 |
Unit Dimension | 673(W) x 425(H) x 75.2(D) mm, 26.50(W) x 16.73(H) x 2.96(D) inch |
Package Dimension | 755.65(W) x 654.05(H) x 234.95(D) mm, 29.75(W) x 25.75(H) x 9.25(D) inch |
IP Rating | IP33 - overall, IP44 - front side only |
IK Rating | IK07 with 5H AR glass |
Weight FM-B2702D | 8.73 kg, 19.25 lbs. (monitor with cover), 13.45 kg, 29.65 lbs. (shipping package) |
Weight FM-B2702DG | 9.2 kg, 20.28 lbs. (monitor with cover), 14.1 kg, 31.09 lbs. (shipping package) |
Certifications | ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device |
