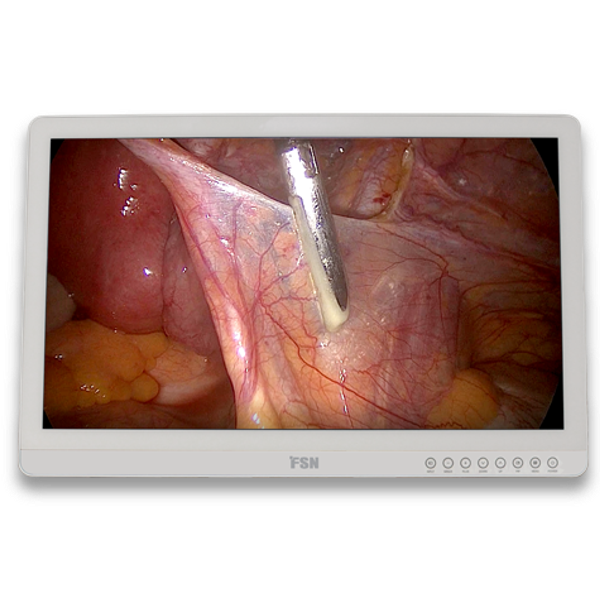

FSN monitors are designed to reproduce multi-modality imaging, using an extensive selection of input connections, and comprehensive signal timing tables.
FSN monitors are designed to reproduce multi-modality imaging, using an extensive selection of input connections, and comprehensive signal timing tables. Picture-in-picture or picture-by-picture screen layouts can be fully adjusted for size and position, giving surgeons the flexibility to work with video images tailored to their preference. FSN display monitors are designed without an internal fan. This eliminates the spread of contaminates and makes the monitor better suited for the sterile field in an operating room.Displays live medical video signals at peak resolutionImage control includes size, position, over scan, zoom, pan, freezeArtifact-free images for confident decision making during surgeryConforms to Electromagnetic Directive 2004/108/EC and 93/42/EECCompatible with analog or digital video sourcesA high-end visualization system with in-service dependabilityReduce cable clutter with the back cover plate
tem | Description |
---|---|
Panel | 27 inch TFT LCD (LED) |
Resolution | 3840 x 2160 pixel |
Aspect Ratio | 16 : 9 |
Active Area | 596.74 (H)mm x 335.66 (V)mm |
Pixel Pitch (mm) | 0.1554 x 0.1554 |
Response Time (typical) | 14 ms (gray to gray) |
Number of Colors | 1.07 Billion |
Brightness (typical) | 800 cd/m2 |
Gamut | BT.709 and BT.2020 compatible |
Contrast Ratio (typical) | 1000 : 1 |
Surface Treatment | Anti-glare |
Viewing Angle (CR>10) | R/L 178°, U/D 178° |
Input Signal FM-A2701D | 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI (single link) |
Input Signal FM-A2701DS | 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI (single link), 4 x SDI (3G) |
Output Signal FM-A2701D | 1 x DP 1.2 (SST), 1 x DVI (single link) |
Output Signal FM-A2701DS | 1 x DP 1.2 (SST), 1 x DVI (single link), 4 x SDI (3G) |
Power Supply | AC/DC Adaptor (AC 100~240V, DC 24V/6.6A) |
Power Consumption FM-A2701D | 90W max |
Power Consumption FM-A2701DS | 110W max |
Accessories Included | User manual, AC-DC adaptor, AC power cord, DP cable, HDMI cable, DVI-D cable, BNC cable (SDI models), Screw BH M4 x 14 |
Unit Dimension | 658.8(W) x 426(H) x 60(D) mm, 25.94(W) x 16.77(H) x 2.36(D) inch |
Package Dimension | 755.65(W) x 654.05(H) x 234.95(D) mm, 29.75(W) x 25.75(H) x 9.25(D) inch |
IP Rating | IP30 - overall, IP43 - front side only |
IK Rating | IK07 with 5H AR glass |
Weight FM-A2701D | 8.18 kg, 18.03 lbs. (monitor with cover), 13.19 kg, 29.08 lbs. (shipping package) |
Weight FM-A2701DS | 8.8 kg, 19.4 lbs. (monitor with cover), 13.81 kg, 30.45 lbs. (shipping package) |
Certifications | ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device |
