Casio DZ-D100 Dermocamera Dermatology Camera
DUAL PURPOSE PHOTOGRAPHYAn ordinary macroscopic image of the entire lesion can be taken without switching lenses. The user can then quickly zoom in for close up shots of the affected area. |
|
|
|
DERMATOLOGY PHOTOGRAPHThe user can photograph the entire lesion for close up shots of the affected area. Photographed images can be used for referrals to other medical institutions and to request opinions from other doctors. |
BRIGHT AND CLEAR LED LIGHTSWhen taking an ordinary photo, uniform illumination from the ring light outside the lens enables faithful reproduction of color tones. In close-up mode, illumination from inside the lens yields a stable and clear image quality. |
|
|
|

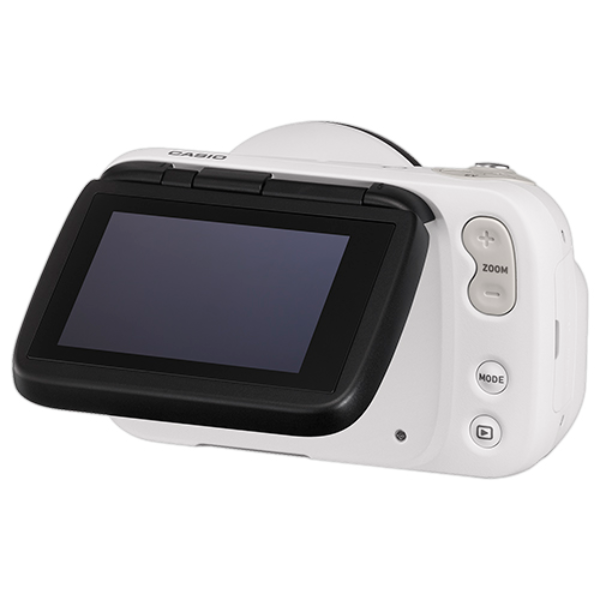

TILT LCD MONITORThe LCD monitor can be tilted to different angles for easy visibility under all conditions. |
SCALE DISPLAYThis function superimposes a scale over a close-up image, immediately showing the size of the affected area. The scale can be rotated in the direction to be measured by simply touching the screen. |
|
|
|
HDMI CONNECTORThe camera can be connected via HDMI cable to a large monitor or projection screen for viewing of images, either in real time or afterward. This is useful for providing explanations to patients or making presentations at conferences. |
DATA TRANSFERDermocamera photos and videos can be easily managed on a personal computer using the D'z IMAGE Viewer application software. Automatic transfer via WI-FI enables data transfer each time a photo is taken. When WI-FI isn't available, transfer using a USB cable or a SD memory card is also enabled.
|
 |
|
Effective Pixels
|
Approx. 20.16 megapixels
|
||||
|---|---|---|---|---|---|
|
Imaging Element
|
Size:1/2.3 inch CMOS (back-side illuminated)
Total pixels: approx. 21.14 megapixels |
||||
|
Recording Media
|
Built-in flash memory (Image recording area: approx.40.0MB*1)
SD/SDHC/SDXC |
||||
|
Image File Formats
|
Still Image
|
JPEG (Exif Ver. 2.3 / DCF 2.0-compliant / DPOF non-compliant)
|
|||
|
Video
|
Mov format, H.264 / AVC-compliant, IMA-ADPCM audio (monaural)
|
||||
|
Recorded Pixels
|
Still Image
|
5184 × 3888 (NORMAL, DERMO CONT, DERMO, MICROSCOPE mode)
4368 × 3280 (DERMO AIF mode) |
|||
|
Video
|
UXGA (1600 × 1200)
|
||||
|
Lens
|
F3.3 / f=7.67 mm (equivalent to 53.5mm for 35mm film)
|
||||
|
Zoom
|
Digital zoom 8x, zoom resolution: 0.1x
|
||||
|
ISO Sensitivity
(Standard Output Sensitivity) |
NORMAL mode: auto, close-up (DERMO) photography: fixed
|
||||
|
Communication Functions
|
Compliant standard: IEEE 802.11b/g/n
Range of frequencies used:1-13ch, 2412-2472 MHz Encryption method: WPA2 Radiant power: 8.51mW |
||||
|
Image Monitor
|
3.0 inch TFT color LCD / 1,036,800 dots / capacitive touch panel
|
||||
|
Power Supply
|
Lithium-ion battery (DNP-100M)
|
||||
|
Battery Life
|
Number of Shots*2
|
Approx. 175 shots
|
|||
|
Actual Video Recording Time*2
|
Approx. 45 mins. (during continuous recording)
|
||||
|
Size
|
Approx. 395g (incl. battery & memory card)
Approx. 350g (w/o battery & memory card) |
||||
|
Options
|
Lithium-ion battery / AC adapter for camera charging / small-diameter adapter / 3D adapter / microscope adapter / battery charger set
|
||||
Brand: Casio Dermatology |
Code: DZ-D100
MPN:
APN: 4549526500718 |
Supplier Code:
Brand: Casio Dermatology |
Code: DZ-D100
MPN:
APN: 4549526500718 |
Supplier Code:
At a glance
Digital dermatology camera for dermal observation and photography.
DUAL PURPOSE PHOTOGRAPHYAn ordinary macroscopic image of the entire lesion can be taken without switching lenses. The user can then quickly zoom in for close up shots of the affected area. |
|
|
|
DERMATOLOGY PHOTOGRAPHThe user can photograph the entire lesion for close up shots of the affected area. Photographed images can be used for referrals to other medical institutions and to request opinions from other doctors. |
BRIGHT AND CLEAR LED LIGHTSWhen taking an ordinary photo, uniform illumination from the ring light outside the lens enables faithful reproduction of color tones. In close-up mode, illumination from inside the lens yields a stable and clear image quality. |
|
|
|
TILT LCD MONITORThe LCD monitor can be tilted to different angles for easy visibility under all conditions. |
SCALE DISPLAYThis function superimposes a scale over a close-up image, immediately showing the size of the affected area. The scale can be rotated in the direction to be measured by simply touching the screen. |
|
|
|
HDMI CONNECTORThe camera can be connected via HDMI cable to a large monitor or projection screen for viewing of images, either in real time or afterward. This is useful for providing explanations to patients or making presentations at conferences. |
DATA TRANSFERDermocamera photos and videos can be easily managed on a personal computer using the D'z IMAGE Viewer application software. Automatic transfer via WI-FI enables data transfer each time a photo is taken. When WI-FI isn't available, transfer using a USB cable or a SD memory card is also enabled.
|
|
DERMAL OBSERVATIONS - QUICK, EASY, DETAILED
This digital dermatology camera was designed to meet the needs expressed by front-line clinical practitioners. Casio has packed its proprietary photographic and image processing technologies into a single camera to create functions that are useful for dermal observations. This easy-to-operate diagnostic tool provides strong support to medical professionals.
DESIGNED WITH THE COMMENTS OF DOCTORS IN MIND
The small size and light weight of the camera makes it easy to hold and operate. The grip features an easy-to-hold shape, and the round shape of the camera is soothing to jittery patients, while the white color and compact body create a clean appearance. These design features put high priority on the type of usability requested by doctors.
ADDITIONAL OPTIONAL ATTACHMENTS FOR EASY USE
The camera's convenient options make it even more simple to do dermal observations.
SMALL DIAMETER ADAPTER
When taking photographs of lesions in locations that are difficult to focus on, such as between fingers or inside an ear, fit the Small-Diameter Adapter to the camera to take the shot. The angle of view is 6mm.
3D ADAPTER
The 3D Adapter holds the camera lens about 2mm away from the surface of the skin so it can be photographed without the lens pressing against a swollen lesion. The 3D Adapter also facilitates the use of DERMO AIF (All In Focus) mode.
