Fuji DH-28GR ST Hood 5 Pieces DH28GR | C.R. Kennedy

Fuji DH-28GR ST Hood 5 Pieces

Fuji DH-28GR ST Hood 5 Pieces

PRODUCT ENQUIRY

Small-caliber-hood short type to support endoscopic procedures such as endoscopic submucosal dissection (ESD), endoscopic mucosal resection (EMR) and Peroral endoscopic myotomy (POEM).

Brand: FujiFilm   |    Code: DH28GR
APN: 9319499755560   |    Supplier Code: DH28GR

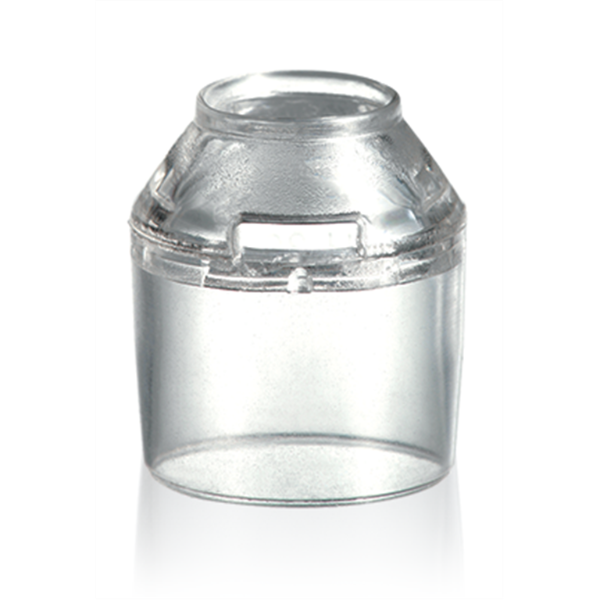

ST Hood Short Type

The Fujifilm ST Hood Short Type is designed to be used in combination with a compatible endoscope to maintain field of view during endoscopic procedures, such as mucosal resection or submucosal dissection. These Fujifilm ST Hoods allow precise control of ESD tools by stabilizing the target with the hood's tip. These devices are equipped with two drains, produced from transparent material, and are available in three sizes, offering compatibility with a wide range of endoscopes.

  • Small caliber tip short design allows an optimized view to the operative field during endoscopic procedures such as EMR, ESD, POEM etc.
  • The tapered tip design realizes an ergonomic and great approach under the submucosa while performing a submucosal dissection.
  • 7.0mm distance to the distal end and an inner diameter of 8.0mm to support efficient visibility.
  • Two drains realize the continuous flow of fluid and maintain a clear endoscopic view.
  • Sterile and single use packages for better infection control.
  • No guide ditch necessary; enables an easy insertion of accessories.

In the following papers, it is described how ST hoods are used as a tool for the ”pocket-creation method“:

  • Duodenal endoscopic submucosal dissection is feasible using the pocket-creation method. Endoscopy. 2017 Jan;49(1):8-14. doi: 10.1055/s-0042-116315. Epub 2016 Nov 22.
  • The pocket-creation method of ESD for gastric neoplasms. Gastrointest Endosc. 2016 Feb;83(2):457-8. doi: 10.1016/j.gie.2015.08.068. Epub 2015 Sep 7.
  • Pocket-creation method of endoscopic submucosal dissection to achieve en bloc resection of giant colorectal subpedunculated neoplastic lesions. Endoscopy. 2014;46 Suppl 1 UCTN:E421-2. doi: 10.1055/s-0034-1377438. Epub 2014 Oct 14.
GENERAL
Max diameter w/endoscope
  • Size 1 - 15.5 mm
  • Size 2 - 16.5 mm
  • Size 3 - 18.4 mm
Total Length 17.0 mm
Distance from endoscope tip 7.0 mm
Inner diameter of distal end 8.0 mm
Drain holes 2
Material Silicone
Compatible endoscope
  • Size 1 - 9.6 - 10.0 mm
  • Size 2 - 10.8 - 11.2 mm
  • Size 3 - 12.0 - 13.0 mm
Attaching portion diameter
  • Size 1 - 10.4 - 11.3 mm
  • Size 2 - 11.6 - 12.3 mm
  • Size 3 - 13.4 - 14.2 mm
Compatible Fujifilm endoscopes
  • Size 1 - EG-760R, EG760Z, EC-740T, EG-580RD, EC-580RD
  • Size 2 - EG-530T, EG-760CT
  • Size 3 - EC-760R-V/L, ED-760ZP-V/L, EC-760S-V/L, EC-600HL, EC-600WL/WL V2, ES-530WE, EC530DL
Packaging 5 PCS per pack (sterile; single use)
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

FEATURES

ST Hood Short Type

The Fujifilm ST Hood Short Type is designed to be used in combination with a compatible endoscope to maintain field of view during endoscopic procedures, such as mucosal resection or submucosal dissection. These Fujifilm ST Hoods allow precise control of ESD tools by stabilizing the target with the hood's tip. These devices are equipped with two drains, produced from transparent material, and are available in three sizes, offering compatibility with a wide range of endoscopes.

  • Small caliber tip short design allows an optimized view to the operative field during endoscopic procedures such as EMR, ESD, POEM etc.
  • The tapered tip design realizes an ergonomic and great approach under the submucosa while performing a submucosal dissection.
  • 7.0mm distance to the distal end and an inner diameter of 8.0mm to support efficient visibility.
  • Two drains realize the continuous flow of fluid and maintain a clear endoscopic view.
  • Sterile and single use packages for better infection control.
  • No guide ditch necessary; enables an easy insertion of accessories.

In the following papers, it is described how ST hoods are used as a tool for the ”pocket-creation method“:

  • Duodenal endoscopic submucosal dissection is feasible using the pocket-creation method. Endoscopy. 2017 Jan;49(1):8-14. doi: 10.1055/s-0042-116315. Epub 2016 Nov 22.
  • The pocket-creation method of ESD for gastric neoplasms. Gastrointest Endosc. 2016 Feb;83(2):457-8. doi: 10.1016/j.gie.2015.08.068. Epub 2015 Sep 7.
  • Pocket-creation method of endoscopic submucosal dissection to achieve en bloc resection of giant colorectal subpedunculated neoplastic lesions. Endoscopy. 2014;46 Suppl 1 UCTN:E421-2. doi: 10.1055/s-0034-1377438. Epub 2014 Oct 14.

SPECIFICATIONS

GENERAL
Max diameter w/endoscope
  • Size 1 - 15.5 mm
  • Size 2 - 16.5 mm
  • Size 3 - 18.4 mm
Total Length 17.0 mm
Distance from endoscope tip 7.0 mm
Inner diameter of distal end 8.0 mm
Drain holes 2
Material Silicone
Compatible endoscope
  • Size 1 - 9.6 - 10.0 mm
  • Size 2 - 10.8 - 11.2 mm
  • Size 3 - 12.0 - 13.0 mm
Attaching portion diameter
  • Size 1 - 10.4 - 11.3 mm
  • Size 2 - 11.6 - 12.3 mm
  • Size 3 - 13.4 - 14.2 mm
Compatible Fujifilm endoscopes
  • Size 1 - EG-760R, EG760Z, EC-740T, EG-580RD, EC-580RD
  • Size 2 - EG-530T, EG-760CT
  • Size 3 - EC-760R-V/L, ED-760ZP-V/L, EC-760S-V/L, EC-600HL, EC-600WL/WL V2, ES-530WE, EC530DL
Packaging 5 PCS per pack (sterile; single use)
