DAHUA SOLAR KIT *Made to order*
- Made to order *please enquire
- Integrated design, easy to install
- Supports wall mount and pole mount with PFA150 bracket
- Flexible angle adjustment of the solar panel and the camera

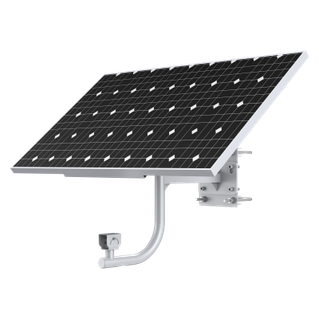

- 100 W monocrystalline solar panel

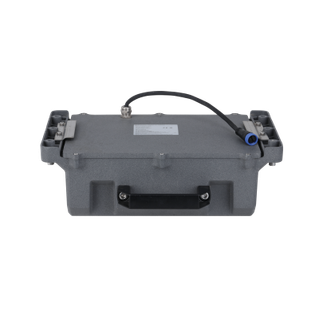

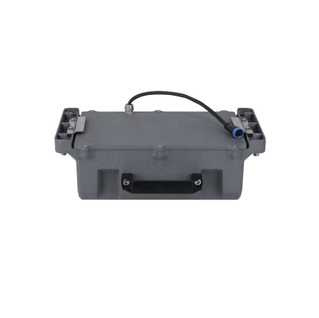

- 12v / 20ah high performance lifepo4 battery
- Built sturdy to resist storms with sustained winds up to 117 km/h
- Remote monitoring available through the mobile app
- Maximum Power Point Tracking (MPPT) charging controller
- RS-485 communication

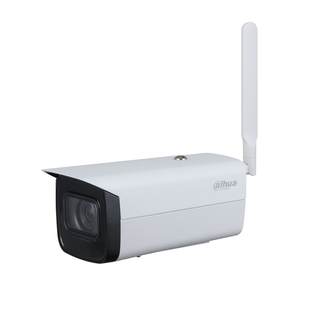

- 4G Network Camera
- 2MP Camera 1/2.8" CMOS image sensor, low luminance, and high definition image
Security monitoring is gradually moving into all aspects of people's life, but monitoring deployment in some scenarios cannot be realized due to the limitations of power supply and network conditions.
Dahua integrated off-grid security solution combines 4G network transmission technology with video surveillance (including AI functions), and applies solar power technology to form an integrated off-grid monitoring system. It is suitable for non-power and grid-free environments, and brings users more comprehensive, accurate and intelligent monitoring deployment solutions.
What we offer
Features
No extra network cable and power cord connection is required
The monitoring equipment is powered by the solar power generation system, without any power system cables;
The built-in 4G module of the camera is used for remote transmission of monitoring data without any network cable connection. Flexible networking and convenient deployment.
Integrated structure, convenient installation and deployment
The integrated design simplifies the installation. The whole system can be directly installed on the pole/wall, greatly reducing the construction cost. And hidden line design makes the overall system more artistic and safe.
Excellent performance and long standby time
Monocrystalline silicon solar panel and MPPT solar controller are adopted, with higher conversion efficiency. It is equipped with high-performance lithium battery and low-power 4G camera. It can also support ultra long standby without any light. It is suitable for more application scenarios that need monitoring deployment.
High protection, all-weather operation
The li-battery, controller and other key components are provided with structural protection, meeting the protection grade of IP66. It also has excellent lightning protection performance. The camera meets the protection grade of IP67. The overall structure is firm and stable. It is specifically designed for outdoor use. There is no impact in bad weather. As low as minus 40 ℃, the system can still operate normally; It is also suitable for extreme weather, such as strong wind and rainstorm.
Mobile terminal display and remote maintenance
The monitoring screen and battery information can be displayed through the mobile APP. The intrusion alarm and low battery alarm can be pushed in time, and the status of the entire monitoring system can be understood in real time.
Example Solution
Datasheets | |
---|---|
DAHUA SOLAR KIT *Made to order* - Datasheet |
1 x Dahua Solar Panel 100watt
1 x IPCHFW3241DFAS4G Dahua 2mp 4g Bullet
1 x 20AH Lifepo4 battery
1 x Battery holder
1 x 32g Micro Sd card
Brand: Dahua |
Code: SOLARKITK1
Brand: Dahua |
Code: SOLARKITK1
At a glance
- Made to order *please enquire
- Integrated design, easy to install
- Supports wall mount and pole mount with PFA150 bracket
- Flexible angle adjustment of the solar panel and the camera
- 100 W monocrystalline solar panel
- 12v / 20ah high performance lifepo4 battery
- Built sturdy to resist storms with sustained winds up to 117 km/h
- Remote monitoring available through the mobile app
- Maximum Power Point Tracking (MPPT) charging controller
- RS-485 communication
- 4G Network Camera
- 2MP Camera 1/2.8" CMOS image sensor, low luminance, and high definition image
