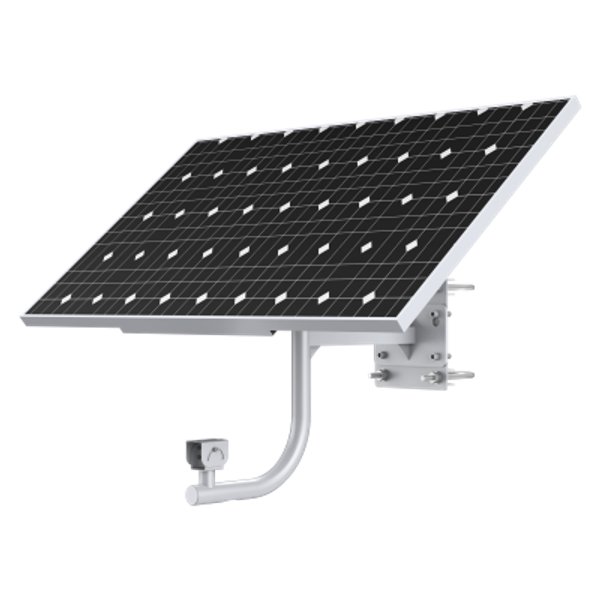

Dahua Solar Panel 100 Watt without Battery
- Integrated design, easy to install.
- Pole mount.
- Flexible angle adjustment of the solar panel and the camera.
- 100W Monocrystalline solar panel.
- Built sturdy to resist storms with sustained winds up to 117 km/h.
- Remote monitoring available through the mobile app.
- Maximum Power Point Tracking (MPPT) charging controller.
- RS-485 communication function.
- Electric protection.
Solar Panel |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Type |
Monocrystalline silicon |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Power |
100 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Voltage |
18.8 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Solar Cell Efficiency |
21% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Mechanical Load |
5400 Pa |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Controller |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Type |
MPPT |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage |
12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rated Charging Current |
10 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rated discharge current |
10 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MPPT Tracking Efficiency |
≥ 99% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Mode |
RS485 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rated Charging Power |
130 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Over-discharge Protection Voltage |
11.1 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Others |
Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output |
Φ5.5 mm × Φ2.1 mm × 12 mm (Φ0.22" × Φ0.08" × 0.47") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS–485 |
Red: RS485-A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Port |
CSA authorized M15 2-core waterproof connector (connected to lithium battery) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Body Material |
Q235 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Rating |
IP65 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Pole mount, Φ80mm~Φ150mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Adjustable Angle |
Solar panel: H: 360°, V: 20°/40°/60° Camera: H: 360°, V: 0°–75° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
815mm x 846.8mm x 893.3mm (32.1” x 33.3” x 35.2”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
880 mm × 765 mm × 275 mm (34.65" × 30.12" × 10.83") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Method |
1 pc in each carton |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
20.1 kg (44.31 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
23.8 kg (52.47 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
< 3000 m (9842.5 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Applicable Area |
Areas with daily exposure to solar radiation for more than 3.5 hours |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
< 95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
< 95% (RH) |
Datasheets | |
---|---|
Dahua Solar Panel 100 Watt without Battery - Datasheet |
Brand: Dahua |
Code: PFM378-B100-WB
MPN:
APN: 9319499233600 |
Supplier Code:
Brand: Dahua |
Code: PFM378-B100-WB
MPN:
APN: 9319499233600 |
Supplier Code:
