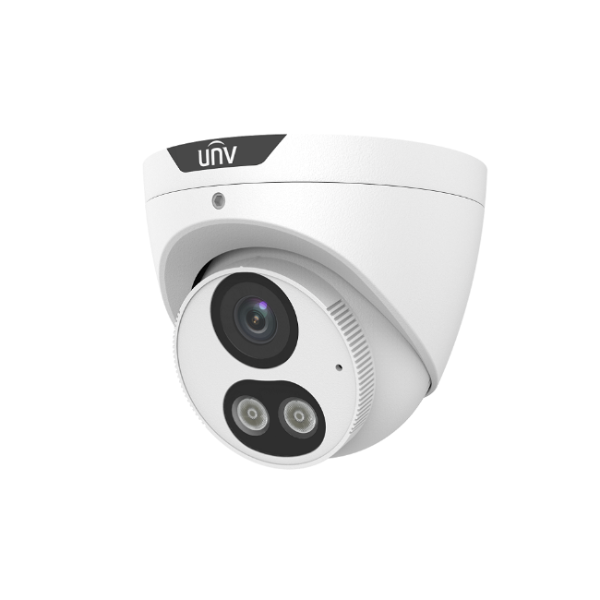

UNV 5MP IP67 2.8mm SE ColorHunter White LED Turret
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296) @25fps; 2MP (1920*1080) @30/25fp
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter technology ensures 24-hour full-color images
- Support 9:16 Corridor Mode
- Built-in Mic
- 120dB true WDR technology enables clear image in strong light scene
- Supports 256 G Micro SD card
- IP67 protection
Overview
Most crimes happen at night which provides more convenient conditions for criminals.
In video security, color-related information is crucial to identify events details especially at night. But in the low light, people, vehicles can easily hide in the background, which makes it difficult to distinguish critical elements.
UNV ColorHunter camera is available, coupled with a supplemental light for extremely dark scenarios.
ColorHunter cameras guarantee video with colorful details when you need them. In addition, the ColorHunter camera can also work with smart intrusion prevention to further enhance the probability and accuracy of feature extraction.
Product Introduction

-
F1.0 Super Large lens
F1.0 super large aperture
collect 4 times amount of light compared with F2.0 aperture. -
5MP High Resolution
5MP(2880*1620)
16:9 picture improves user experience -
Advanced Chip
Built-in advanced chip and exclusive algorithm reduces false alarm.
-
Friendly Lighting LEDs
Warm light LEDs guarantee lower light pollution and maintain the true color in the low-light environment.
-
Progressive BSI Sensor
Backside-illuminated CMOS sensor,
more sensitive to the light.
Core Technologies
ColorHunter Performance

Application Scenarios

Parking lot
Challenges:
Cannot record the clear vehicle and people in the parking lot.
The light in the parking lot is dusky.
Most crimes happen in the low-light environment.
Advantages:
Colorful monitoring around the clock.
Provide extra light to reduce construction cost.
The friendly warm light is not dazzling and won’t disturb the driver's vision.

Residential
Challenges:
Cannot record the colorful and clear video when the crimes happen in the night.
There are low light areas around the villa and it is difficult to ensure personnel safety.
Cannot trigger the people alarm in the low light.
Advantages:
7*24 colorful monitoring guard in the courtyard.
Provide colorful information of intruders for investigation.
The friendly warm light can act as a street lamp.

Parks
Challenges:
The lack of lights in the park at night gives criminals the opportunity.
Most crimes happen in the low-light environment.
Advantages:
Provide colorful monitoring around the clock.
Provide extra light to light up the road and reduce construction cost.

Alley
Challenges:
Dark alleys are high incidence areas of crime.
Monitoring is relatively less, and it is difficult to capture key information due to insufficient light.
Advantages:
7*24 colorful monitoring and focus on human and vehicle.
Provide colorful information of criminals for polices to catch them.
Better evening illumination in the alley keeps community members feeling safe and comfortable
IPC3615SE-ADF28KM-WL-I0 | ||||||||
Camera | ||||||||
Sensor | 1/2.7", progressive scan, 5.0 megapixel, CMOS | |||||||
Lens | [email protected] | |||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
2.8mm | 63 | 25.2 | 12.6 | 6.3 | ||||
4mm | 90 | 36 | 18 | 9 | ||||
Angle of view(H) | 102.0° | |||||||
Angle of View (V) | 53.4° | |||||||
Angle of View (O) | 121.0° | |||||||
Adjustment angle | Pan: 3°~360° | Tilt: 0°~80° | Rotate: 3°~360° | |||||
Shutter | Auto/Manual, 1~1/100000 s | |||||||
Minimum Illumination | Colour: 0.001Lux (F1.0, AGC ON) 0 Lux with IR |
|||||||
LEDs Number | 2 | |||||||
LED Distance | Up to 30m (98ft) | |||||||
S/N | >56 dB | |||||||
Defog | Digital Defog | |||||||
WDR | 120dB | |||||||
Video | ||||||||
Video Compression | Ultra 265,H.265, H.264, MJPEG | |||||||
H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
Frame Rate |
Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
|||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
OSD | Up to 8 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Up to 8 areas | |||||||
Video Bit Rate | 128 Kbps~16 Mbps | |||||||
9:16 Corridor Mode | Supported | |||||||
Image | ||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
Audio | ||||||||
Audio Compression | G.711 | |||||||
Suppression | Supported | |||||||
Sampling Rate | 8 KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 256 GB | |||||||
Network Storage | ANR, NAS(NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||||
Compatible Integration | ONVIF (Profile S, Profile T), API | |||||||
Client | EZStation, EZLive ,Ezview | |||||||
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
|||||||
Certification | ||||||||
Certifications |
CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15 |
|||||||
Interface | ||||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
Built-in Mic | Supported | |||||||
General | ||||||||
Power |
12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 7.5W |
|||||||
Dimensions (Ø x H) | Φ110.5 x 94.1mm(Φ4.35’’ x 3.7’’) | |||||||
Weight | 0.44kg(0.97lb) | |||||||
Material | Metal | |||||||
Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge protection | 2KV | |||||||
Ingress Protection | IP67 |
