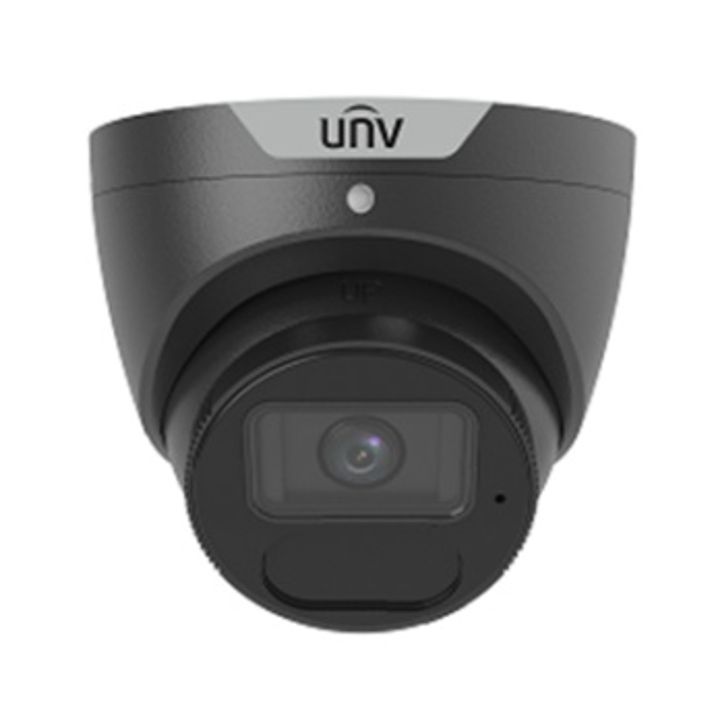

UNV 6MP IP67 IR 2.8mm SB Prime Series Turret Camera - Black
• High quality image with 6MP,1/2.7’’ CMOS sensor
• 6MP(3072*2048)@25/20fps; 4MP (2560*1440)@30/25fps; 3MP(2304*1296 ) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Triple streams offer more choices for different clients in an integrated solution
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• Face capture, automatic selection of best snapshots, support face detection masked area
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in Mic
• Support 256 GB Micro SD card
• DC12V or PoE(IEEE 802.3af) power supply
IPC3616SB-ADF28KM-I0 | |||||||
Camera | |||||||
Sensor | 1/2.7", 6.0 megapixel, progressive scan, CMOS | ||||||
Min. Illumination | Colour:0.0025lux (F1.6, AGC ON) 0 lux with IR |
||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Adjustment angle | Pan: 0°~360° | Tilt: 0°~80° | Rotate: 0°~360° | ||||
WDR | 120dB | ||||||
S/N | >52dB | ||||||
Lens | |||||||
Lens type | [email protected] | ||||||
Iris | Fixed | ||||||
Field of View (H) | 101.34° | ||||||
Field of View (V) | 54.46° | ||||||
Field of View (D) | 119.72° | ||||||
DORI | |||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
2.8 | 63(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) | |||
Illuminator | |||||||
IR Range | Up to 30m (98.4 ft) IR range | ||||||
Wavelength | 850nm | ||||||
IR On/Off Control | Auto/Manual | ||||||
Video | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||||
Frame Rate | Main Stream: 6MP (3072*2048),Max 25fps; 4MP(2560*1440) ,Max 30fps; 3MP(2304*1296), Max 30fps;1080P (1920*1080), Max 30fps;720P(1280*720), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||
U-code | Support | ||||||
OSD | Up to 8 OSDs | ||||||
Privacy Mask | Up to 4 areas per scene | ||||||
ROI | Up to 8 areas | ||||||
Video stream | Triple streams | ||||||
Image | |||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
Smart IR | Support | ||||||
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
Dewarping | Support | ||||||
HLC | Support | ||||||
BLC | Support | ||||||
Defog | Digital Defog | ||||||
Intelligent | |||||||
Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||
Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||
Events | |||||||
Basic Detection | Motion detection, Ultra motion detection, Audio detection, Tampering alarm | ||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
Audio | |||||||
Audio Compression | G.711U, G.711A | ||||||
Audio Bitrate | 64 Kbps | ||||||
Two-way Audio | N/A | ||||||
Suppression | Support | ||||||
Sampling Rate | 8KHz | ||||||
Storage | |||||||
Edge Storage | Micro SD, up to 256 GB | ||||||
Network Storage | ANR,NAS(NFS) | ||||||
Network | |||||||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,SSH | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||
Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||
Client | EZStation EZLive EZView |
||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
Interface | |||||||
Audio I/O | N/A | ||||||
Alarm I/O | N/A | ||||||
Serial Port | N/A | ||||||
Built-in Mic | Support | ||||||
Built-in Speaker | N/A | ||||||
WIFI | N/A | ||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
Video Output | N/A | ||||||
Certification | |||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||
General | |||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
Power consumption: Max 5W | |||||||
Power Interface | Ø 5.5mm coaxial power plug | ||||||
Dimensions (Ø x H) | Φ111 x 95mm (Ø 4.4” x 3.7”) | ||||||
Weight | 0.45kg(0.99lb) | ||||||
Material | Metal | ||||||
Working Environment | -30℃~60℃(-22°F ~ 140°F),Humidity: ≤95% RH (non-condensing) | ||||||
Storage Environment | -30℃~60℃(-22°F ~ 140°F),Humidity: ≤95% RH (non-condensing) | ||||||
Surge protection | 4KV | ||||||
Reset button | N/A |
