Dahua Lift Controller for Apartment Intercoms

Loading
  • Dahua Lift Controller for Apartment Intercoms
  • Dahua Lift Controller for Apartment Intercoms

  • Connection up to 1 Wiegand reader and 2 RS485 readers

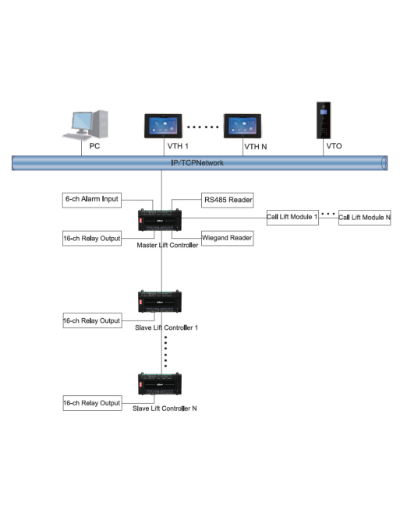

  • Support 8 cascading, up to 128 floors permission control
  • Alarm In/Out: 6/2
  • Alarm records and log records: 30,000
  • Maximum support 60 call lift modules
  • All floors' permission will be released if fire alarm triggered
  • Remote control via web client

SPECIFICATIONS

Technical Specification
Model VTM416
System
Main Processor ARM Cortex M4@180MHz
Communication Type TCP/IP; RS485, and Wiegand
Indicator
Power Indicator 1
Communication Indicator 1
Relay Indicator 16
Interface
Alarm In 6 ( Alarm_in_1 for fire alarm)
Alarm Out 2
RS485 4 RS485 1: card reader or call lift module RS485 2: card reader or call lift module RS485 3: cascade with slave lift controller RS485 4: call lift module
Wiegand 1
Relay Out 16
General
Installation Fixed onto the wall; U-shaped guide rail
Power DC 12V, PoE(802.3af)
Working Temperature ﹣20°C~+55°C
Relative Humidity 10%~90%RH
Dimensions 210mm×116mm×29mm
Weight 1.0Kg

Datasheets
Dahua Lift Controller for Apartment Intercoms - Datasheet
Product Manuals
Dahua Lift Controller for Apartment Intercoms - Product Manual

Brand: Dahua | Code: VTM416 MPN:
APN: 6939554945618 | Supplier Code:

Brand: Dahua | Code: VTM416 MPN:
APN: 6939554945618 | Supplier Code:

At a glance

  • Connection up to 1 Wiegand reader and 2 RS485 readers
  • Support 8 cascading, up to 128 floors permission control
  • Alarm In/Out: 6/2
  • Alarm records and log records: 30,000
  • Maximum support 60 call lift modules
  • All floors' permission will be released if fire alarm triggered
  • Remote control via web client
