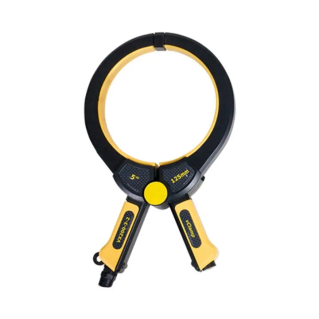

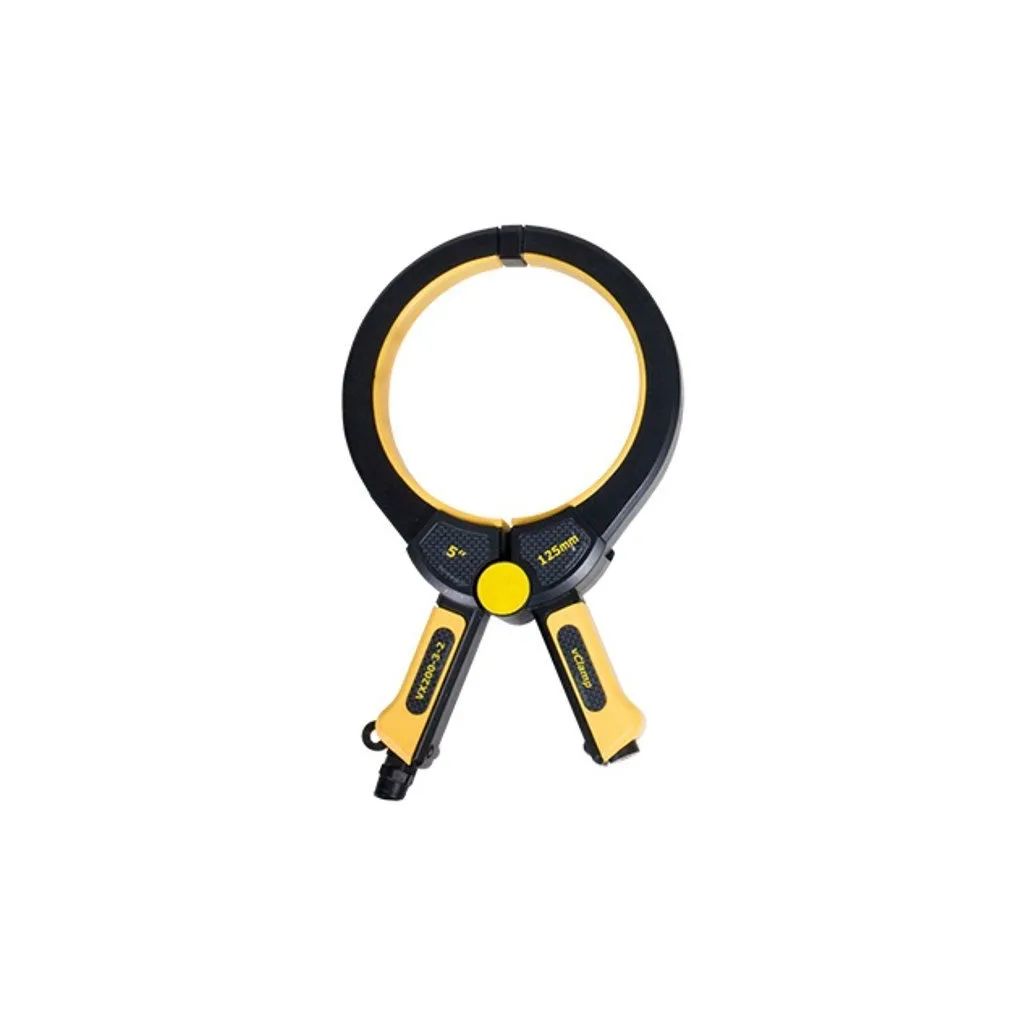

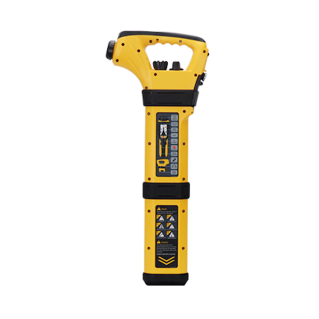

Vivax vScan Cable & Pipe Avoidance Locator Kit with clamp and bag
The vScan utility avoidance tool has been designed to make buried utility detection a simple and cost-effective process.

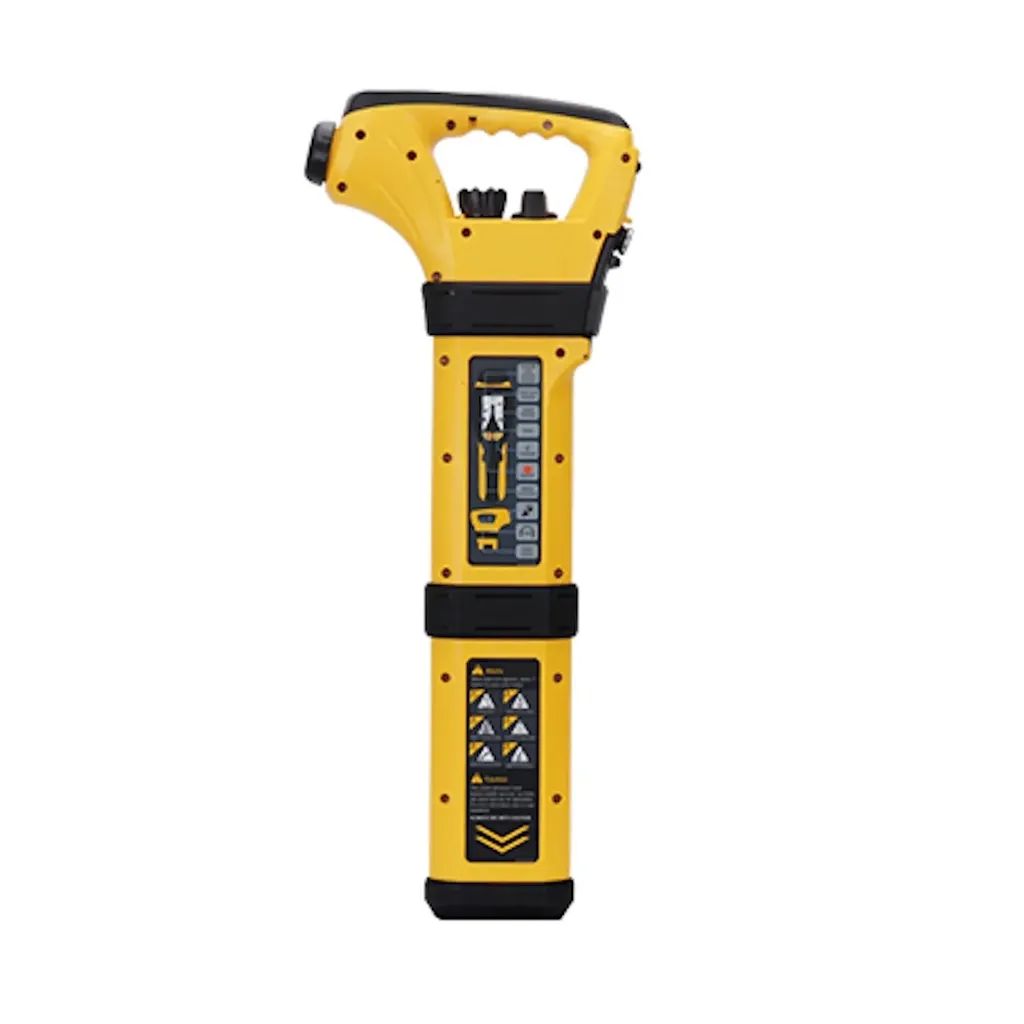

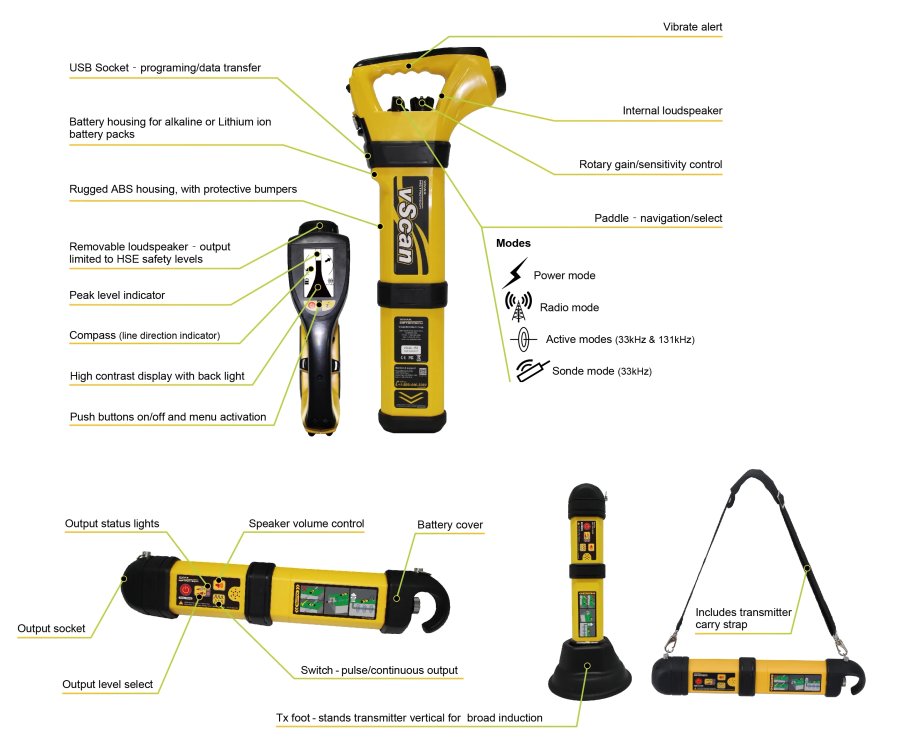

- Large, high resolution and high contrast dot matrix display
- Auto backlight
- Compass line direction indicator
- Visual, audible and vibration alerts
- Passive signals
- Simple two button operation
- Movable speaker
- Robust ABS casing with rubber protection bumpers for all site condition use.
- 2GB auto data logging
Together with the dual frequency transmitter, data logging, optional metal manhole cover detector, GPS, and Bluetooth, the vScan is available in various models to suit all applications.

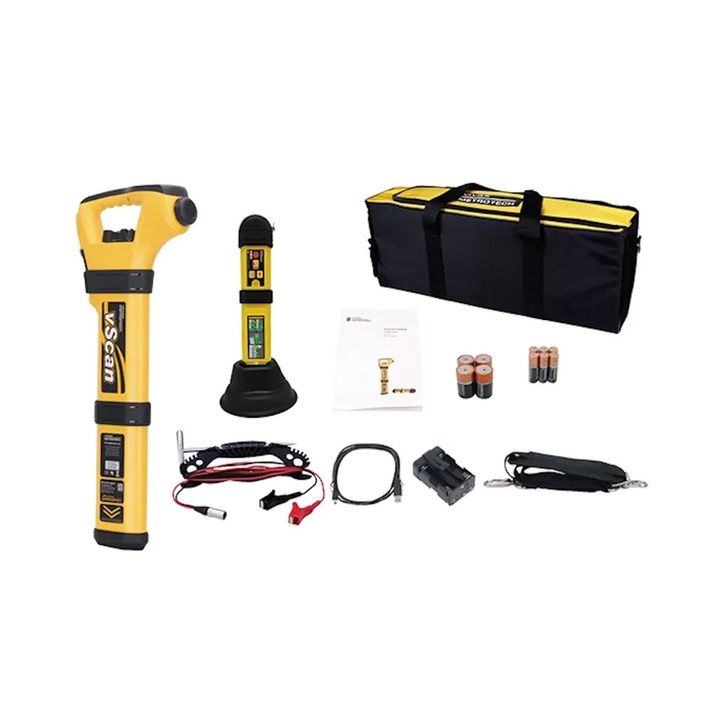

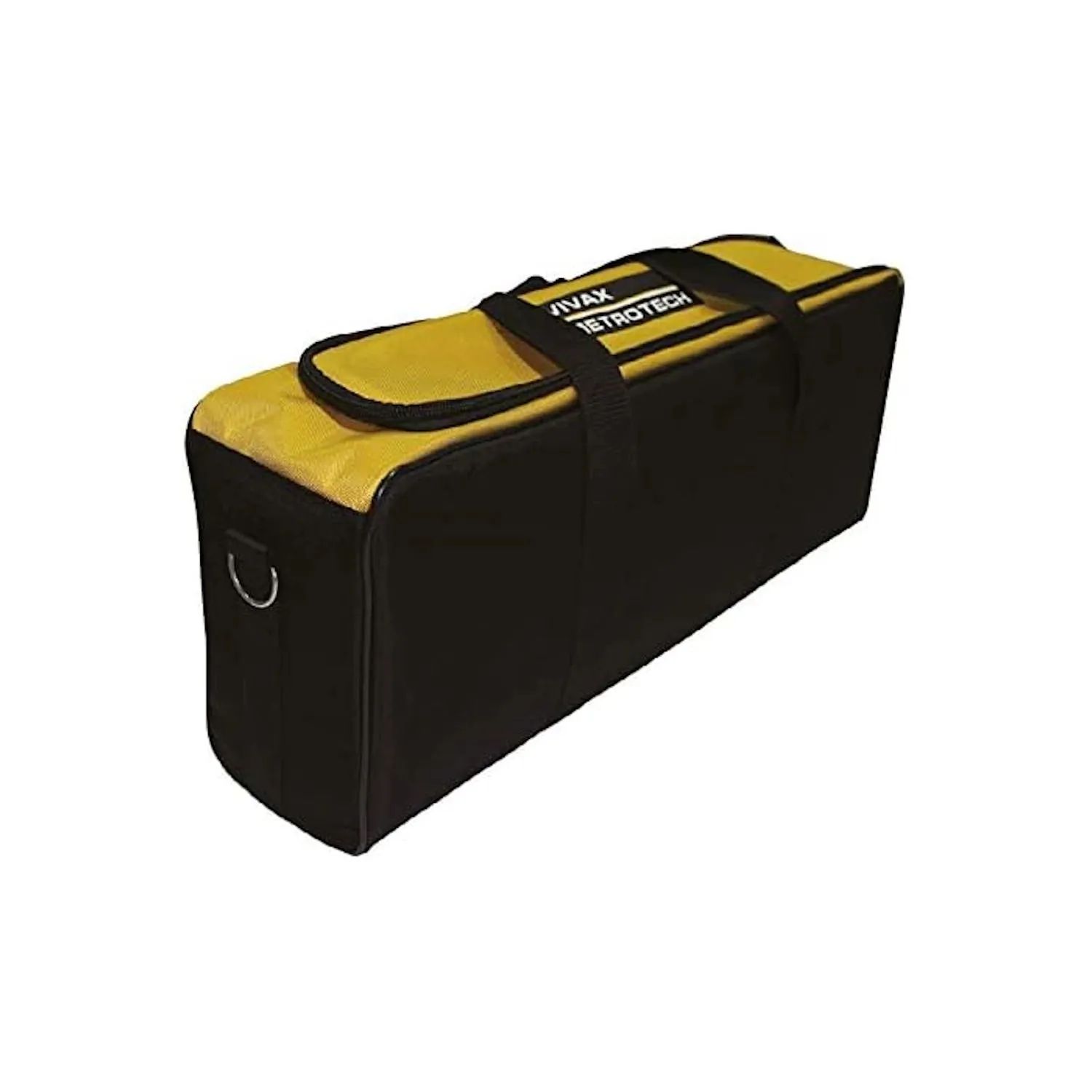

The vScan locator kits are shipped with a spacious canvas carry bag which fits the receiver, transmitter, leads and any optional accessories.
| V-Scan Receiver | V-Scan Transmitter | |
| Construction | High-impact ABS injection molded housing with rubber surrounds | High-impact ABS injection molded housing with rubber surrounds |
| Weight | 2.2kg (2.4kg with Metal Mode) | 1.7kg (1.5kg with Li-ion battery) |
| Dimensions | 69 x 28 x 7.5cm | 46 x 9.0 x 6.5cm |
| Display | 240 x 400 pixel, 2.7” (6.9cm) Monochrome, | 2 x LED interface |
| Battery | 6 x AA Alkaline, oponal Li-ion | 4 x alkaline “D” cells, oponal Li-ion |
| Battery Life | Alkaline: 12 hours Li-ion: 40 to 50 hours |
Alkaline: 30 hours Li-ion: 36 hours |
| Operating frequencies | Radio mode: 16.5kHz to 23.9kHz Power mode: 50Hz, 60Hz Sonde mode: 33kHz, 512Hz, 640Hz |
33kHz, 131kHz |
| Data logging and transfer | Via USB cable or via Cloud | - |

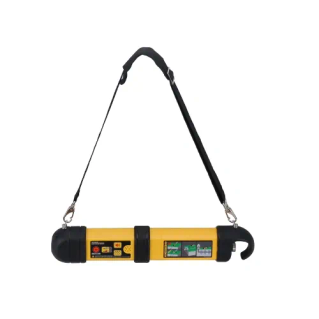

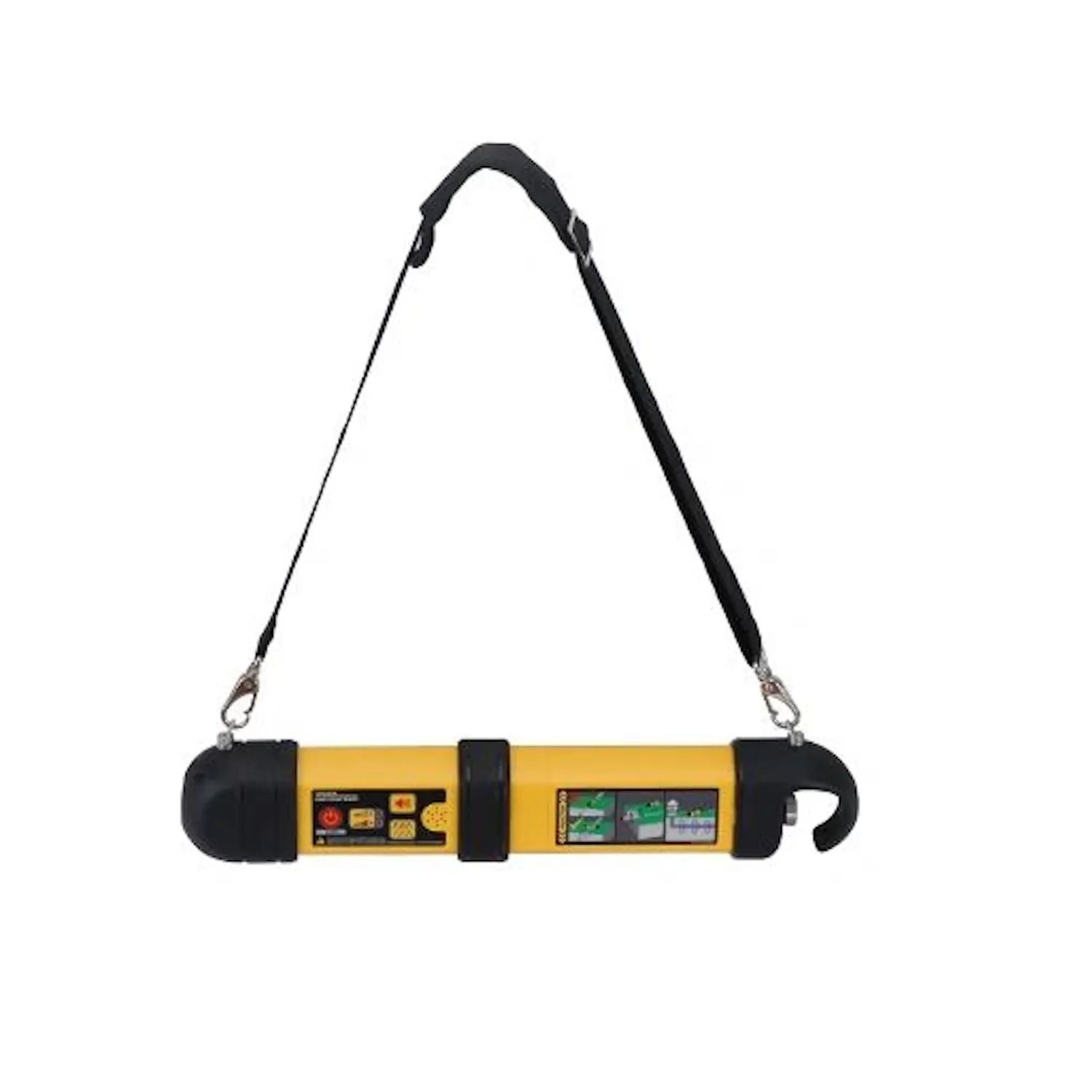

| Operating modes | Power, Radio, Sonde | Induction, Direct Connect, Clamp |
| Environmental | IP54 | IP54 |
| Brochures | |
|---|---|
| VIVAXVSCANKIT - Brochure | Datasheets |
| Vivax vScan Cable & Pipe Avoidance Locator Kit with clamp and bag - Datasheet | Product Manuals |
| Vivax vScan Cable & Pipe Avoidance Locator Kit with clamp and bag - Product Manual |
