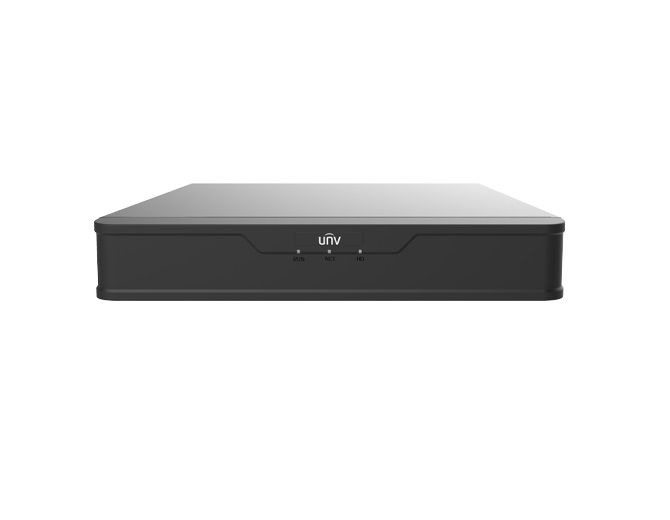

Model | NVR501-04B | NVR501-08B | NVR501-16B | |||
Video/Audio Input | ||||||
IP Video Input | 4-ch | 8-ch | 16-ch | |||
Audio Input | 1-ch, RCA | |||||
Network | ||||||
Incoming bandwidth | 80Mbps | |||||
Outgoing bandwidth | 64Mbps | |||||
Remote Users | 128 | |||||
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP | |||||
Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|||||
Video/Audio Output | ||||||
HDMI/VGA Output | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 |
|||||
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
Audio Output | 1-ch, RCA | |||||
Two-way Audio | 1-ch, RCA(Using the audio input and output) | |||||
Audio Compression | G.711A, G.711U | |||||
Synchronous Playback | 4-ch | 8-ch | 16-ch | |||
Liveview display | 1/4 | 1/4/6/8/9 | 1/4/6/8/9/16 | |||
Corridor Mode Screen | 3/4 | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 | |||
Snapshot | ||||||
FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | |||||
Decoding | ||||||
Decoding format | Ultra 265/H.265/H.264 | |||||
Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
Capability | Ultra 265/H.265: 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080p@30 H.264: 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080p@30 |
|||||
Hard Disk | ||||||
SATA | 1 SATA interfaces | |||||
Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
|||||
Smart | ||||||
VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, UMD(Ultra Motion Detection) | |||||
VCA Search | Behavior Search, People Counting Report | |||||
People Counting | People Flow Counting, Crowd Density Monitoring | |||||
Smart Intrusion Prevention (SIP), UMD by Camera | Total 4-ch | Total 8-ch | ||||
General Alarm | ||||||
General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |||||
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||
External Interface | ||||||
Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface | |||||
USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 | |||||
RS232 | NA | |||||
RS485 | NA | |||||
Alarm In | NA | |||||
Alarm Out | NA | |||||
General | ||||||
Power Supply | 12V DC Power Consumption: ≤ 6W (without HDD) |
|||||
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |||||
Dimensions (W×D×H) | 260mm × 222mm × 47mm (10.2" × 8.7" × 1.8") | |||||
Weight (without HDD) | ≤ 0.98Kg (2.16lb) |
