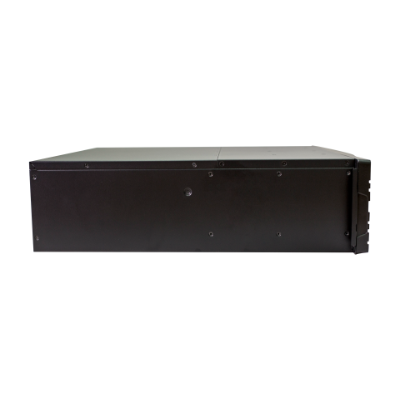

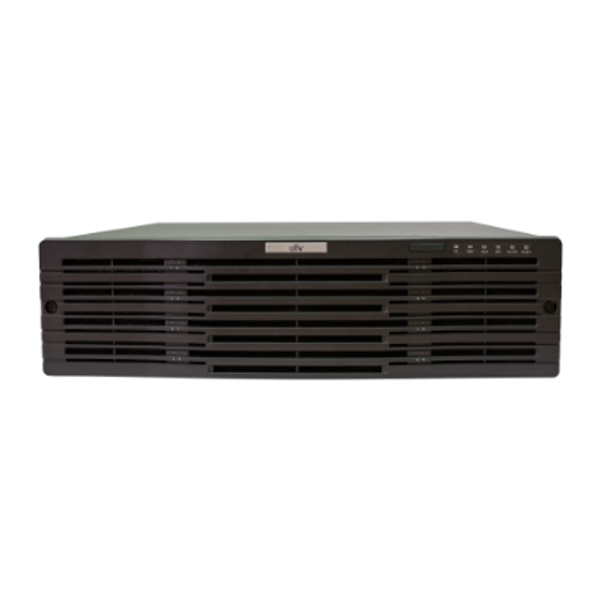

UNV Unicorn VMS Server
Unicorn VMS Server
- 16 HDD(SATA)s with hot swap capability
- Dual network interface for redundancy
- Intelligent fans saves power consumption
- Dual BIOS ensure high reliability of system running
- Redundant power source configuration
Video Managment | |
Number of connected cameras per server |
UNV Device:1000 devices or 2000 channels ONVIF Device:200 devices |
Device management | IPC, NVR, encoder, decoder(standard/expanded), network keyboard, cloud devices, alarm control panel and door access control |
Numbers of online users | 300 |
Numbers of roles per user | 16 |
Bandwidth of video input per server |
512Mbps |
Bandwidth of video output per server |
384Mbps |
Decoding | |
Video compression | Ultra265, H.265, H.264 |
Decoding | 4×4K@30, 16×1080p@30, 36×720p@30, 64×D1 |
Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF |
Display on video wall | HDMI(×2) and VGA(×1) output; HDMI output supports 4K resolution |
Audio compression | G.711 |
Decoding card (optional) |
Max 2 cards supported; models: HDMI4-C and HDMI6-C |
HDMI4-C decoding card | 4-ch HDMI outputs, with decoding of 4*4K@60 or 8*4K@30 or 32*1080P@30 or 64*720P@30 |
HDMI6-C decoding card | 6-ch HDMI outputs, with decoding of 6*4K@60 or 12*4K@30 or 48*1080P@30 or 96*720P@30 |
Storage | |
HDD installation | Hot-swappable HDDs Support 16HDDs (3.5", up to 8TB for each ) |
RAID mode | RAID1, RAID5,RAID6,RAID10,RAID50,RAID60 |
Bandwidth of video storage per server |
512Mbps |
Disk enclosure (optional) |
Max 2 disk enclosures supported; models: DEU1008 and DEU1016 |
DEU1008 disk enclosure | 8xSATA interfaces, up to 8TB storage per interface |
DEU1016 disk enclosure | 16xSATA interfaces, up to 8TB storage per interface |
Play control | 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display Corridor format Up to 3 auxiliary monitors |
Playback | Play NVR recordings Up to 24 channels for multiple clients; synchronous playback up to 16 channels for single client |
System | |
Main Processor | Intel(R) CPU |
Memory | 4GB DDR3L |
Power supply | 100-240 VAC (with power on/off switch) Dual-power redundancy |
Interface | |
Network | 4×10M/100M/1000M Base-T adaptive Ethernet interfaces 2×1000M SFP optical interfaces |
USB | 4×USB3.0 |
HDMI | 2×HDMI |
VGA | 1×VGA |
Serial | 1×RS-232 (RJ45), 1×RS-485 (RJ45) |
Alarm input/output | 24×alarm inputs, 8×alarm outputs |
Power output | 12 V DC |
Audio alarm | Buzzer |
Expansion | 1×eSATA interface 2×miniSAS interfaces 2×decoding cards |
Others | |
Power consumption | ≤ 50W (not including HDD) ≤ 165W (including HDD) |
Operating temperature | -10°C to 55°C (14°F to 131°F) |
Operating humidity | 10% to 90% (noncondensing) |
Weight | ≤ 10.0 Kg |
Dimensions (D×W×H) |
Height: 3U, support mounting in standard 19" cabinet 477.1 mm × 481.6 mm × 130.5 mm (18.8''×19''×5.1'') (including front panel) |
