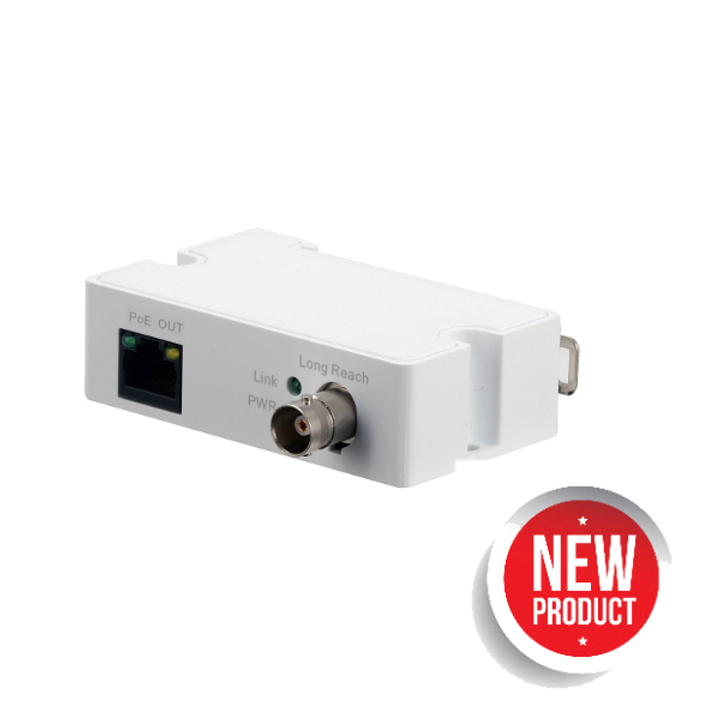

Dahua Ethernet over Coax Extender Receiver

Loading
  • Dahua Ethernet over Coax Extender Receiver

· Supports IEEE802.3, IEEE802.3u standards
· Supports IEEE802.3af and IEEE802.3at power supply
· Port: 1*RJ45 10/100Mbps, 1*BNC
· Supports RG59 coaxial cable: 400m/100Mbps,1000m/10Mbps
· Supports MDI/MDIX self-adaption
· Supports long range power supply transmission via coaxial

LR1002-1ET and LR1002-1EC are designed to be used together.

The product is divided into transmitter (LR1002-1ET) and receiver (LR1002-1EC). It is designed to work as a type of converter from RJ45 to BNC port, which supports long range power supply transmission via coaxial cable. It provides one BNC coaxial port and one RJ45 port. The product is equipped with two transmission modes which are 100Mbps and 10Mbps. It can be modified according to the transmission distance.

Datasheets
Dahua Ethernet over Coax Extender Receiver - Datasheet

Brand: Dahua | Code: LR1002-1EC MPN:
APN: 6923172589644 | Supplier Code:

Brand: Dahua | Code: LR1002-1EC MPN:
APN: 6923172589644 | Supplier Code:

At a glance

· Supports IEEE802.3, IEEE802.3u standards
· Supports IEEE802.3af and IEEE802.3at power supply
· Port: 1*RJ45 10/100Mbps, 1*BNC
· Supports RG59 coaxial cable: 400m/100Mbps,1000m/10Mbps
· Supports MDI/MDIX self-adaption
· Supports long range power supply transmission via coaxial
