Leica Disto D5 Laser Distance Meter kit - incl FT360 Adapter + TR75+ Case
- Leica Disto D5 Kit with FTA 360 Adapter, Tripod, Hard box.
- Range up to 200 m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Measuring slopes
- Smart Horizontal Mode
- Fast start-up time
- Foldable end-piece with automatic detection
- Bright and clear 2.4” IPS display with scratch-proof lens
| Accuracy with favourable conditions | 1.0 mm / 1/16" |
| Accuracy with unfavourable conditions | 2.0 mm / 1/8" |
| Range with favourable conditions | 0.05 – 200 m / 0.07 – 660 ft |
| Range with unfavourable conditions | 0.05 – 120 m / 0.07 – 400 ft |
| Smallest unit displayed | 0.1 mm / 1/32 in |
| X-Range Power Technology | yes |
| Laser Class 2 | 635 nm, <1 mW |
| Digital Pointfinder with 4-fold zoom | yes |
| Tilt measuring range | 360° |
| Tilt measuring tolerance | ± 0.2° |
| ø laser point | at distances | 6 / 30 / 60 mm | 10 / 50 / 100 m |
| Protection class | IP54 (dust- and splash water protected) |
| Auto. laser switch off after | 90 s |
| Auto. power switch off after | 180 s |
| Bluetooth® Smart | Bluetooth® v5.0 |
| Range of Bluetooth® | up to 10 m |
| Battery durability (Li-Ion 2 000 mAh) | up to 5’000 measurements |
| up to 10 hours operation time | |
| Dimension (H x D x W) | 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in |
| Weight (with batteries) | 180 g / 6.35 oz |
| Temperature range storage | operation | -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F |
| Datasheets | |
|---|---|
| Leica Disto D5 Laser Distance Meter kit - incl FT360 Adapter + TR75+ Case - Datasheet |
- Leica Disto D5 Laser Distance Meter
- FTA 360 adapter

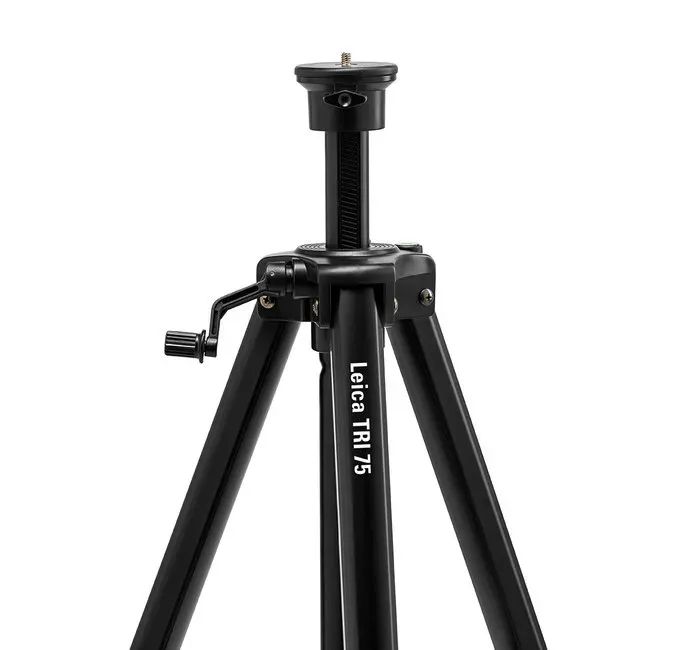

- TRI 75 Tripod
- Handloop
- Soft carry pouch
- Charger with USB cable
- Manual Calibration certificate
- Warranty card
- Leica Metalbox 165L
Brand: Leica Geosystems |
Code: LG950879
APN: 7640180531265 |
Supplier Code: LG950879
Brand: Leica Geosystems |
Code: LG950879
APN: 7640180531265 |
Supplier Code: LG950879
At a glance
- Leica Disto D5 Kit with FTA 360 Adapter, Tripod, Hard box.
- Range up to 200 m
- ± 1.0 mm accuracy, 0.1 mm resolution
- Measuring slopes
- Smart Horizontal Mode
- Fast start-up time
- Foldable end-piece with automatic detection
- Bright and clear 2.4” IPS display with scratch-proof lens

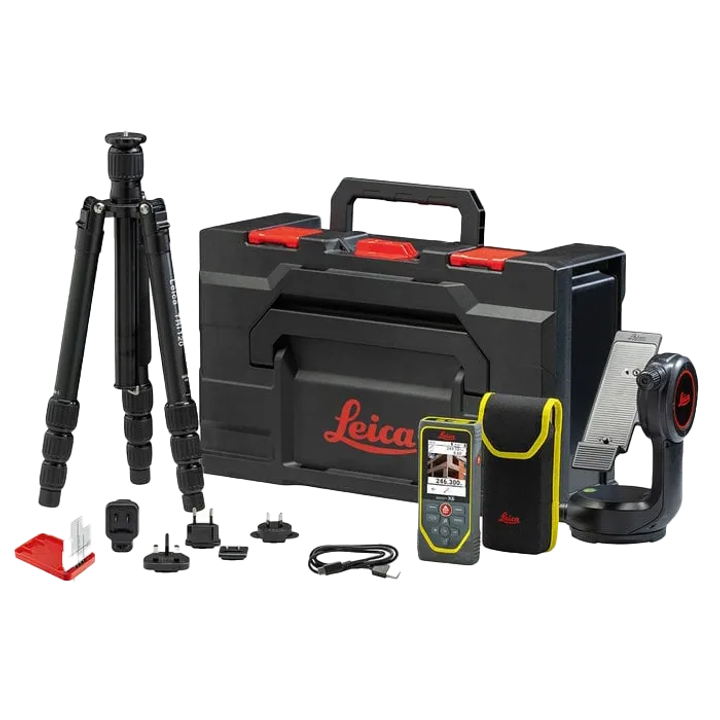

Leica DISTO X6 Laser Distance Meter P2P Kit incl DST 360-X Adapter + TRI 120 + Case
