Leica Disto X3 Laser Distance Meter LG850833 | C.R. Kennedy

Leica Disto X3 Laser Distance Meter

Leica Disto X3 Laser Distance Meter

$684.00
  IN STOCK
  IN STOCK
PRODUCT ENQUIRY
  • 150m measuring range
  • Measuring accuracy of ± 1/16"
  • Tilt accuracy of ± 0.2°
  • 2m drop tested
  • IP65 dust and water protection class
  • Utilizes X-Range Power technology
  • Speeds up stake-out the workflow
  • Works perfectly with Leica DST 360
Brand: Leica Geosystems   |    Code: LG850833
APN: 7640110697047   |    Supplier Code:

The Leica Disto X3 Laser Distance Meter is a tough device that is designed to make indoor laser measurements an easy task. It can withstand drop tests from two meters and is dust and water protected to IP 65 standards, making it suitable for tough job site conditions. Its display has dynamic marks that make stake-out position detection easy and speed up the workflow.

The Disto X3 has a distance measuring accuracy of ± 1/16 inches at a range of up to 150m. It utilizes the X-Range Power technology and a tilt sensor with an accuracy of ± 0.2 degrees. The device’s measuring units are meter, feet, and inches. Its general data interface is the Bluetooth technology and has a wide compatibility that supports iOS, Android and Windows.

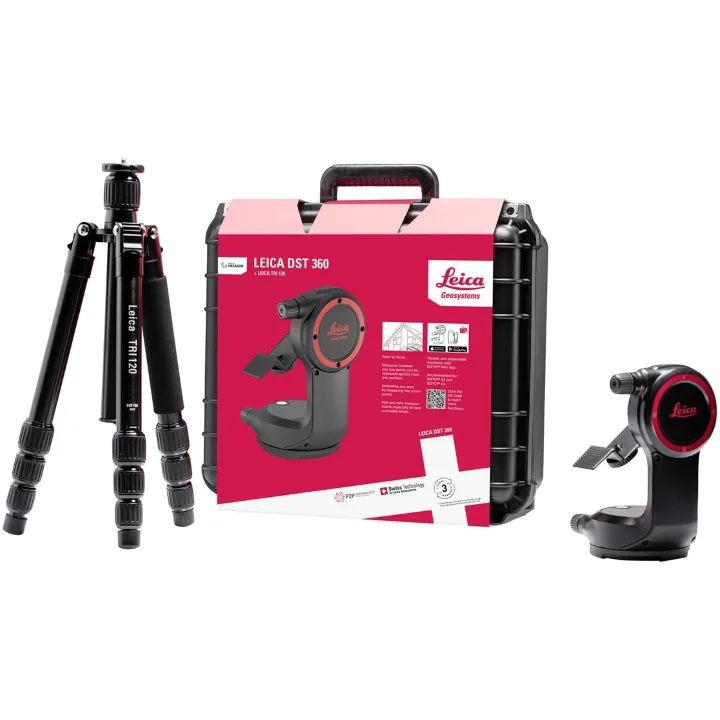

This laser distance meter’s housing is made of solid rubber and its special bracing made from fiberglass-reinforced plastic strengthens its interior. Easy to use buttons and functions allow fast and intuitive work and usage of the device. This Leica laser distance meter works perfectly with Leica DST 360 for a P2P technology to transforms the hand-held tool into a sturdy measurement station. It comes with a holster, hand loop, and batteries.

Typ. distance measuring accuracy (ISO 16331-1 certified) ± 1.0 mm
Range (ISO 16331-1 certified) 0.05 up to 150 m
Measuring units m, ft, in
X-Range Power Technology Yes
Tilt sensor Yes
Tilt sensor accuracy to the housing ± 0.2°
Smart Base measuring range
Horizontal
Vertical



360° for use with Leica DST 360
-64° to > 90° for use with Leica DST 360

Typ. tolerance of P2P function for use with Leica DST 360 ± 2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range 5° for use with Leica DST 360
Memory of last measurement 20
Free software for Windows Yes
Free App for iOS and Android Yes
Smart Room function support Yes
General data interface Bluetooth® Smart
Data interface for 3D point data Bluetooth® Smart
Measurements per set of batteries up to 4'000
(reduced when used with Bluetooth®)
Service life of batteries up to 8h
(reduced when used with Bluetooth®)
Multifunctional endpiece with automatic reference detection Yes
Batteries 2x AA Alkaline
Protection class IP 65
2m drop tested Yes
Dimensions 132 x 56 x 29 mm
Weight with batteries 184g
Art. No. 850833
EAN / UPC 7640110697054
  • Leica Disto X3 Laser Distance Meter 850833
  • Holster
  • Hand Loop
  • Batteries
  • 3 Years Warranty
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

FEATURES

The Leica Disto X3 Laser Distance Meter is a tough device that is designed to make indoor laser measurements an easy task. It can withstand drop tests from two meters and is dust and water protected to IP 65 standards, making it suitable for tough job site conditions. Its display has dynamic marks that make stake-out position detection easy and speed up the workflow.

The Disto X3 has a distance measuring accuracy of ± 1/16 inches at a range of up to 150m. It utilizes the X-Range Power technology and a tilt sensor with an accuracy of ± 0.2 degrees. The device’s measuring units are meter, feet, and inches. Its general data interface is the Bluetooth technology and has a wide compatibility that supports iOS, Android and Windows.

This laser distance meter’s housing is made of solid rubber and its special bracing made from fiberglass-reinforced plastic strengthens its interior. Easy to use buttons and functions allow fast and intuitive work and usage of the device. This Leica laser distance meter works perfectly with Leica DST 360 for a P2P technology to transforms the hand-held tool into a sturdy measurement station. It comes with a holster, hand loop, and batteries.

SPECIFICATIONS

Typ. distance measuring accuracy (ISO 16331-1 certified) ± 1.0 mm
Range (ISO 16331-1 certified) 0.05 up to 150 m
Measuring units m, ft, in
X-Range Power Technology Yes
Tilt sensor Yes
Tilt sensor accuracy to the housing ± 0.2°
Smart Base measuring range
Horizontal
Vertical



360° for use with Leica DST 360
-64° to > 90° for use with Leica DST 360

Typ. tolerance of P2P function for use with Leica DST 360 ± 2mm at 2m, 5mm at 5m, 10mm at 10m
Levelling range 5° for use with Leica DST 360
Memory of last measurement 20
Free software for Windows Yes
Free App for iOS and Android Yes
Smart Room function support Yes
General data interface Bluetooth® Smart
Data interface for 3D point data Bluetooth® Smart
Measurements per set of batteries up to 4'000
(reduced when used with Bluetooth®)
Service life of batteries up to 8h
(reduced when used with Bluetooth®)
Multifunctional endpiece with automatic reference detection Yes
Batteries 2x AA Alkaline
Protection class IP 65
2m drop tested Yes
Dimensions 132 x 56 x 29 mm
Weight with batteries 184g
Art. No. 850833
EAN / UPC 7640110697054

IN THE BOX

  • Leica Disto X3 Laser Distance Meter 850833
  • Holster
  • Hand Loop
  • Batteries
  • 3 Years Warranty
