UNV IP66 IR 2MP 4x Active Deterrence PTZ Camera

UNV IP66 IR 2MP 4x Active Deterrence PTZ Camera

  ON ORDER
PRODUCT ENQUIRY

2MP LightHunter Active Deterrence Network PTZ Dome Camera

  • Light hunter low light performance 0.001 Lux !
  • 4x Optical zoom
  • 50 Metres Infrared Illumination
  • 10 metres white light illumination.
Brand: Uniview   |    Code: IPC672LRAX4DUPKC
APN: 0235C41N   |    Supplier Code: IPC672LRAX4DUPKC

key features.jpg

Optics

* LightHunter illumination

* Day/night functionality

* Up to 50 m (164 ft) IR and 10m (33 ft) warm light distance

* Up to 120 dB Optical WDR(Wide Dynamic Range)

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265,H.265, H.264, MJPEG

* Built-in microphone & speaker

* Alarm Light

* Triple streams

* ROI (Region of Interest)

Network

* ONVIF Conformance

Structure

* Support PoE power supply

* Wide temperature range: -20°C ~ 60°C (-4°F to 140°F)

* Wide voltage range of ±25%

* IP66



Most of video surveillance products are used to help restoring the events afterwards. However, products which can early warning plays more significant roles since they prevent events from happening. Uniview recently released an active deterrence mini PTZ camera IPC672LR-AX4DUPKC.

The purpose of active deterrence is that once a stranger enters into the view of the camera, the strobe light will be triggered and the built-in speakers make sounds that fit different scenes. It allows the active deterrence camera to be widely used for many areas. For areas dangerous for pedestrians, such as the entrances and exits of the parking lot, pedestrians should be careful to walk from the entrance of motor vehicles in case of accidents. It can warn if detected any pedestrian pass through the entrance. Besides, for perimeter detection purposes, it is suitable for villas, construction site and more. The built-in speaker will sound "You are in the warning area, please leave here as soon as possible” when an intruder wants to enter the forbidden area. Furthermore, it is also applied to customers welcome, key scene security, automatic broadcasting, etc. The active deterrence camera has truly enhanced monitoring functions and reduced the labour cost.

Benefits

Compared with traditional video surveillance, the active deterrence mini PTZ can immediately stop the illegal events. Once an intruder is detected, the PTZ will trigger strobe lights and audio alarms. It is designed to expel the intruders before they attempt to enter the prohibited site.

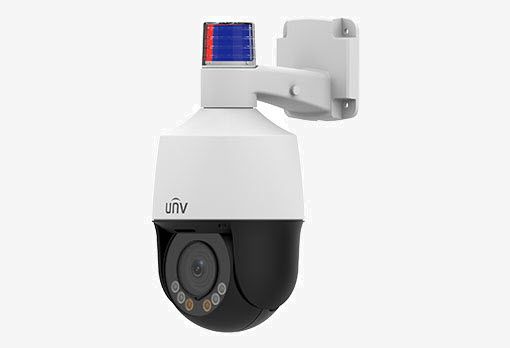

IPC672LRAX4DUPKC feature.jpg

Human body detection and strobe lights

In order to precisely prevent intruders, the active deterrence mini PTZ is aimed to detect human body and filters the false alarms by small animals or other irrelevant objects. In addition, the warning lights are designed in red and blue, which is even more noticeable. And when the break-in occurs, the other two strobe lights will be turned on to provide a clear image.

7×24 protection

Powered by LightHunter technology, it can provide excellent performance in ultra-low light environments. Featuring a 4x optical zoom motorized lens, the PTZ enables to provide more details in a surveillance image.

Two-way talk

Furthermore, built-in MIC & speaker makes it easy for remote communication with people in front of the camera.

IP66

At last, with IP66 weatherproof design, it can be widely used in outdoor environments such as apartments, factories, riverside, and construction sites, etc.

IPC672LR-AX4DUPKC
Camera
Sensor 1/2.8" progressive scan, 2.0 megapixel, CMOS
Lens 2.8~12mm,AF automatic focusing and motorized zoom lens
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 43.4 17.4 8.7 4.3
12mm 186.2 74.5 37.2 18.6
Angle of View (H) 32.5°~95.7°
Angle of View (V) 18.4°~52.2°
Angle of View (O) 36.9°~100.8°
Shutter Auto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum Illumination Colour:0.001 lux (F1.6,AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52 dB
IR Range UP to 50m (164ft)
Wavelength 850nm
IR On/Off Control Auto/Manual
Warm Light Range UP to 10m (33ft)
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream:1080P (1920*1080):Max. 30 fps; 720P (1280×720):Max. 30 fps;
Sub Stream: 720P (1280×720):Max. 30 fps;
Third Stream: CIF (352*288): Max. 30 fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping Support
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
Compatible Integration ONVIF(Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Pan & Tilt
Pan Range 345°
Pan Speed 0.1°/s ~ 50°/s
Preset speed: 50°/s
Tilt Range 90°
Tilt Speed 0.1° ~ 40°/s
Preset speed: 40°/s
Number of Presets 256
Patrol Preset patrol, Route patrol
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Built-in Speaker Supported
Alarm Light Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE802.3 at)
Power consumption: Max 16 W
Dimensions (Ø x H) Φ133mm*269.4mm (Φ5.2”x 10.6”)
Net Weight 0.87 kg (1.92lb)
Gross Weight 1.13 kg (2.49lb)
Material Metal + Plastic
Working Environment -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection 4KV
Ingress Protection IP66
Reset Button Supported
