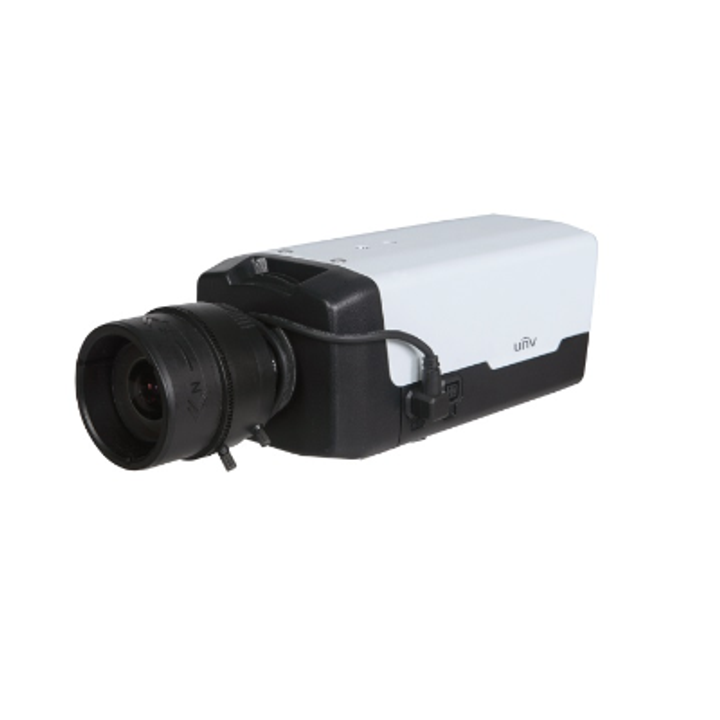

UNV 2MP Starlight SFP ABF CS Mount Box Camera (Lens not included)
| Camera | |
| Sensor | 1/1.9"progressive scan ,CMOS |
| Lens Mount | CS |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Minimum Illumination | Colour: 0.0005 Lux (F1.2, AGC ON) B/W:0.0005 Lux(F1.2, AGC ON) |
| Iris | DC-Iris 4V (4-Pin)/P-Iris 5V (4-Pin) |
| Day & Night | Automatically removable IR-cut filter(ICR) |
| Digital noise reduction | 2D/3D DNR |
| Motor Zoom/focus | DC 5V (4-Pin) |
| S/N | >52dB |
| Defog | Optical Defog & Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:2MP (1920×1080): Max. 60 fps; Sub Stream:2MP (1920×1080): Max. 60 fps; Third Stream:D1 (720×576): Max. 60 fps |
| 9:16 Corridor Mode | Supported |
| HLC | Supported |
| BLC | Supported |
| ABF | Supported |
| OSD | Up to 8 OSDs |
| ROI | Up to 8 areas |
| Privacy Mask | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection、Audio detection |
| Intelligent Identification | Defocus, Scene Change |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way Talking | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Interface | |
| Audio I/O | 3.5 mm audio interface |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2 / 1 |
| Serial Port | 1 RS485 (support Pelco-D/P) |
| Network | 1 RJ45 100M/1000M Base-FX SFP+100M/1000M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | 24 V AC±25%, 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 6.8W | |
| Dimensions (L x W xH) | 151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens) |
| Weight | 0.48 kg (1.1 lb) |
| Working Environment | –20°C ~ 60°C (-4°F ~ 140°F), Humidity :10%~90% RH(non-condensing) |
| Reset Button | Supported |
| Datasheets | |
|---|---|
| UNV 2MP Starlight SFP ABF CS Mount Box Camera (Lens not included) - Datasheet |
Brand: Uniview |
Code: IPC562E-DUG
MPN:
APN: 9319499029463 |
Supplier Code:
Brand: Uniview |
Code: IPC562E-DUG
MPN:
APN: 9319499029463 |
Supplier Code:
