Camera | |||||||||
Sensor | 1/2.7", 6.0 megapixel, progressive scan, CMOS | ||||||||
Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||||
4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |||||
Angle Of View (H) | 112.9° | 91.2° | |||||||
Angle Of View (V) | 59.1° | 47.9° | |||||||
Angle Of View (O) | 121.2° | 95.9° | |||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
Minimum Illumination | Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR |
||||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
Digital noise reduction | 2D/3D DNR | ||||||||
S/N | >56dB | ||||||||
IR Range | Up to 30m (98ft) IR range | ||||||||
Wavelength | 850nm | ||||||||
IR On/Off Control | Auto/Manual | ||||||||
Defog | Digital Defog | ||||||||
WDR | 120dB | ||||||||
Video | |||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | ||||||||
Frame Rate | Main Stream: 6MP(3072*2048), Max 25fps; 5.3M (3072*1728), Max 30fps; 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
9:16 Corridor Mode | Supported | ||||||||
OSD | Up to 4 OSDs | ||||||||
Privacy Mask | Up to 4 areas | ||||||||
ROI | Up to 8 areas | ||||||||
Motion Detection | Up to 4 areas | ||||||||
Image | |||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
Digital noise reduction | 2D/3D DNR | ||||||||
Smart IR | Supported | ||||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
Dewarping | N/A | ||||||||
HLC | Supported | ||||||||
BLC | Supported | ||||||||
Smart | |||||||||
Behavior Detection | Cross line, intrusion(based on human body detection) | ||||||||
motion detection, tampering alarm, audio detection | |||||||||
General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||||||
Network | |||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | ||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
Client | EZStation EZView EZLive |
||||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||||||
Audio | |||||||||
Audio Compression | G.711 | ||||||||
Suppression | Supported | ||||||||
Sampling Rate | 8KHZ | ||||||||
Storage | |||||||||
Edge Storage | Micro SD, up to 256 GB | ||||||||
Network Storage | ANR,NAS(NFS) | ||||||||
Interface | |||||||||
Network | 10/100M Base-TX Ethernet | ||||||||
Built-in Mic | Supported | ||||||||
Certifications | |||||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
||||||||
General | |||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
Power consumption: Max 6.0W | |||||||||
Dimensions (Ø x H) | Φ110.5 x 94.1mm (Φ4.4” x 3.7”) | ||||||||
Net Weight | 0.42kg (0.93lb) | ||||||||
Material | Metal | ||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Surge Protection | 4KV | ||||||||
Ingress Protection | IP67 | ||||||||
Reset Button | N/A |
To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!
To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.
Univiews new EasyStar 6mp camera is great for all installation types. The EasyStar chip combined with the 0.003lux sensor creates colourful pictures within low light conditions so you have a great picture throughout both day and night!

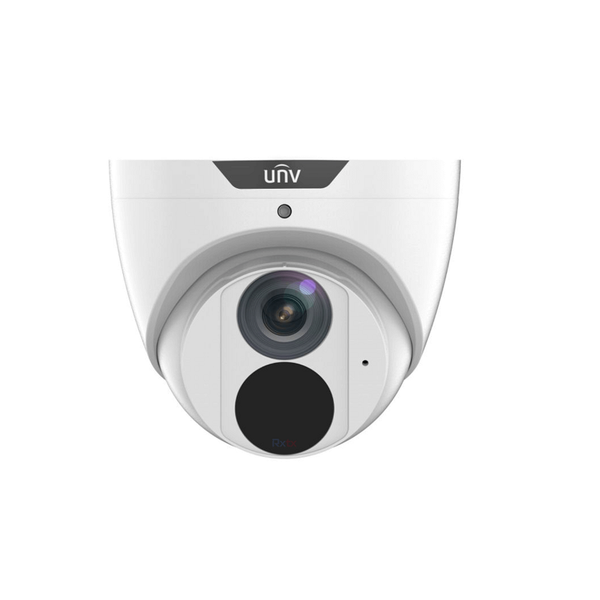

The UNV IPC3616LE-ADF28KM-G Easystar 6MP Eyeball camera offers high quality images with 6 megapixels, 1/2.7″CMOS sensor. With Easystar technology this camera ensures high image quality in low illumination environment. This 6MP Eyeball network camera features a built in microphone and intrusion detection.
This UNV 6MP Eyeball camera has Smart IR of up to 30 meters IR distance and has a protection rating of IP67 which means this camera is resistant to water and dust. This camera would be suitable for an outdoor application.
Camera | |||||||||
Sensor | 1/2.7", 6.0 megapixel, progressive scan, CMOS | ||||||||
Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||||
4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |||||
Angle Of View (H) | 112.9° | 91.2° | |||||||
Angle Of View (V) | 59.1° | 47.9° | |||||||
Angle Of View (O) | 121.2° | 95.9° | |||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
Minimum Illumination | Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR |
||||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
Digital noise reduction | 2D/3D DNR | ||||||||
S/N | >56dB | ||||||||
IR Range | Up to 30m (98ft) IR range | ||||||||
Wavelength | 850nm | ||||||||
IR On/Off Control | Auto/Manual | ||||||||
Defog | Digital Defog | ||||||||
WDR | 120dB | ||||||||
Video | |||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | ||||||||
Frame Rate | Main Stream: 6MP(3072*2048), Max 25fps; 5.3M (3072*1728), Max 30fps; 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
9:16 Corridor Mode | Supported | ||||||||
OSD | Up to 4 OSDs | ||||||||
Privacy Mask | Up to 4 areas | ||||||||
ROI | Up to 8 areas | ||||||||
Motion Detection | Up to 4 areas | ||||||||
Image | |||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
Digital noise reduction | 2D/3D DNR | ||||||||
Smart IR | Supported | ||||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
Dewarping | N/A | ||||||||
HLC | Supported | ||||||||
BLC | Supported | ||||||||
Smart | |||||||||
Behavior Detection | Cross line, intrusion(based on human body detection) | ||||||||
motion detection, tampering alarm, audio detection | |||||||||
General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||||||
Network | |||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | ||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
Client | EZStation EZView EZLive |
||||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||||||
Audio | |||||||||
Audio Compression | G.711 | ||||||||
Suppression | Supported | ||||||||
Sampling Rate | 8KHZ | ||||||||
Storage | |||||||||
Edge Storage | Micro SD, up to 256 GB | ||||||||
Network Storage | ANR,NAS(NFS) | ||||||||
Interface | |||||||||
Network | 10/100M Base-TX Ethernet | ||||||||
Built-in Mic | Supported | ||||||||
Certifications | |||||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
||||||||
General | |||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
Power consumption: Max 6.0W | |||||||||
Dimensions (Ø x H) | Φ110.5 x 94.1mm (Φ4.4” x 3.7”) | ||||||||
Net Weight | 0.42kg (0.93lb) | ||||||||
Material | Metal | ||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Surge Protection | 4KV | ||||||||
Ingress Protection | IP67 | ||||||||
Reset Button | N/A |
