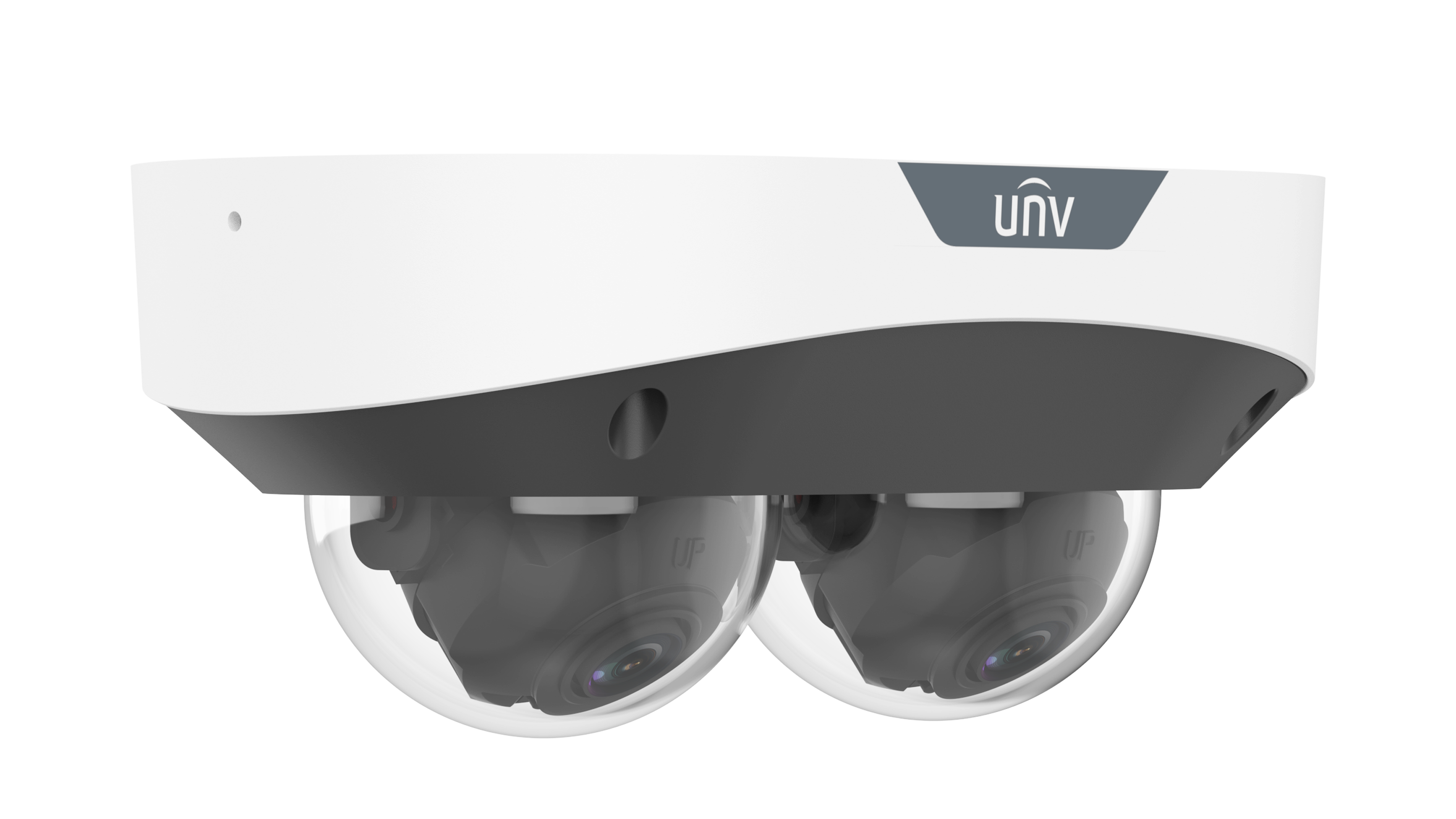

UNV 4+4MP Dual Camera IR 2.8mm Prime Dome camera
• High quality image with 2*4MP resolution, 1/3.0"CMOS sensor
• Single IP with dual channels
• 4MP (2688*1520)@25/20fps; 4MP(2560*1440)@25/20fps; 3MP(2304*1296) @30/25fps;2MP(1920*1080)@30/25fps
• Ultra 265, H.264,H.265, MJPEG
• Both channels support intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and motor vehicle and non-motor vehicle
• Intelligent (Only Channel 1)
• Intelligent People Flow Counting and Crowd Density Monitoring (Only Channel 1)
• 130dB true WDR technology enables clear image in strong light scene
• Built-in two Mics
• Supports 512 GB Micro SD card
• DC12V or PoE(IEEE 802.3af) power supply
• IP67 protection and IK10 vandal resistant
• 3-Axis
| IPC3224SS-ADF28K-I1 | ||||||||
| Channel | Channel 1 | Channel 2 | ||||||
| Camera | ||||||||
| Max Resolution | 4MP | 4MP | ||||||
| Sensor | 1/3.0" CMOS | 1/3.0" CMOS | ||||||
| Min. Illumination | Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | IR-cut filter with auto switch (ICR) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment Angle | Pan: 0° ~ 180°, Tilt: 0° ~ 66°, Rotate: 0° ~ 346° | Pan: 0° ~ 180°, Tilt: 0° ~ 66°, Rotate: 0° ~ 346° | ||||||
| S/N | >52dB | >52dB | ||||||
| WDR | 130dB | 130dB | ||||||
| Lens | ||||||||
| Focal Length | 2.8 mm | 2.8 mm | ||||||
| Iris Type | Fixed | Fixed | ||||||
| Iris | F1.6 | F1.6 | ||||||
| Field of View (H) | 97.68° | 97.68° | ||||||
| Field of View (V) | 52.67° | 52.67° | ||||||
| Field of View (D) | 102.52° | 102.52° | ||||||
| Lens Type | Fixed | Fixed | ||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8mm | 2.8mm | ||||||
| DORI Distance (Detect) | 63.0m(206.7ft) | 63.0m(206.7ft) | ||||||
| DORI Distance (Observe) | 25.2m(82.7ft) | 25.2m(82.7ft) | ||||||
| DORI Distance (Recognize) | 12.6m(41.3ft) | 12.6m(41.3ft) | ||||||
| DORI Distance (Identify) | 6.3m(20.7ft) | 6.3m(20.7ft) | ||||||
| Illuminator | ||||||||
| Supplemental Light | IR | IR | ||||||
| Illumination Distance (IR) | 30 m (98.4 ft) | 30 m (98.4 ft) | ||||||
| IR On/Off Control | Auto/Manual | Auto/Manual | ||||||
| Wavelength | 850 nm | 850 nm | ||||||
| Video | ||||||||
| Video Compression | Ultra 265|H.265|H.264|MJPEG | Ultra 265|H.265|H.264|MJPEG | ||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream:4MP(2688*1520) ,Max 25fps; 4MP(2560*1440), Max 25fps; 3MP(2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720) Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
Main Stream:4MP(2688*1520) ,Max 25fps; 4MP(2560*1440), Max 25fps; 3MP(2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720) Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | 128 Kbps ~ 16 Mbps | ||||||
| U-code | Support | Support | ||||||
| OSD | Up to 8 OSDs | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 4 areas | Up to 4 areas | ||||||
| ROI | Support | Support | ||||||
| Video Stream | Triple Streams | Triple Streams | ||||||
| Image | ||||||||
| White Balance | Auto|Outdoor|Fine Tune|Sodium Lamp|Locked|Auto2 | Auto|Outdoor|Fine Tune|Sodium Lamp|Locked|Auto2 | ||||||
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
| Smart IR | Support | Support | ||||||
| Flip | Normal|Flip Vertical|Flip Horizontal|180°|90°Clockwise|90°Anti-clockwise | Normal|Flip Vertical|Flip Horizontal|180°|90°Clockwise|90°Anti-clockwise | ||||||
| Dewarping | N/A | N/A | ||||||
| HLC | Support | Support | ||||||
| BLC | Support | Support | ||||||
| Defog | Digital Defog | Digital Defog | ||||||
| Image Stabilization | N/A | N/A | ||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | ||||||
| Statistical Analysis | N/A | N/A | ||||||
| Events | ||||||||
| Basic Detection | Motion Detection|Ultra Motion Detection|Tampering Alarm|Audio Detection | Motion Detection|Ultra Motion Detection|Tampering Alarm|Audio Detection | ||||||
| General Function | Watermark|IP Address Filtering|Access Policy|ARP Protection|RTSP Authentication|User Authentication|HTTP Authentication|Alarm Input|Alarm Output | Watermark|IP Address Filtering|Access Policy|ARP Protection|RTSP Authentication|User Authentication|HTTP Authentication|Alarm Input|Alarm Output | ||||||
| Audio | ||||||||
| Audio Compression | G.711U|G.711A | G.711U|G.711A | ||||||
| Audio Bitrate | 64 Kbps | 64 Kbps | ||||||
| Two-way Audio | Support | Support | ||||||
| Suppression | Support | Support | ||||||
| Sampling Rate | 8 KHz | 8 KHz | ||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | ||||||
| Network Storage | ANR|NAS (NFS) | ANR|NAS (NFS) | ||||||
| Network | ||||||||
| Protocols | IPv4|IPv6|IGMP|ICMP|ARP|TCP|UDP|DHCP|PPPoE|RTP|RTSP|RTCP|RTMP|DNS|DDNS|NTP|FTP|UPnP|HTTP|HTTPS|SMTP|802.1x|SNMP|QoS|SSL/TLS|SSH | IPv4|IPv6|IGMP|ICMP|ARP|TCP|UDP|DHCP|PPPoE|RTP|RTSP|RTCP|RTMP|DNS|DDNS|NTP|FTP|UPnP|HTTP|HTTPS|SMTP|802.1x|SNMP|QoS|SSL/TLS|SSH | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T)| API|SDK |
ONVIF (Profile S, Profile G, Profile T)| API|SDK |
||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
| Security | Password Protection|Strong Password|HTTPS Encryption|Export Operation Logs|Basic and Digest Authentication for RTSP|Digest Authentication for HTTP|TLS 1.2|WSSE and Digest Authentication for ONVIF | Password Protection|Strong Password|HTTPS Encryption|Export Operation Logs|Basic and Digest Authentication for RTSP|Digest Authentication for HTTP|TLS 1.2|WSSE and Digest Authentication for ONVIF | ||||||
| Client | UNV-Link| UNV-Link Pro|EZStation | UNV-Link| UNV-Link Pro|EZStation | ||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above|Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above|Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p]|1 Output: impedance 600Ω; amplitude 2V [p-p] | 1 Input: impedance 35kΩ; amplitude 2V [p-p]|1 Output: impedance 600Ω; amplitude 2V [p-p] | ||||||
| Alarm I/O | 1/1 | 1/1 | ||||||
| Serial Port | N/A | N/A | ||||||
| Built-in Mic | Built-in two mics | Built-in two mics | ||||||
| Built-in Speaker | N/A | N/A | ||||||
| WIFI | N/A | N/A | ||||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | 1 x RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | N/A | N/A | ||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
||||||
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
IP67 (IEC 60529) IK10 (IEC 62262) |
||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power Interface | Ø 5.5 mm coaxial power plug | Ø 5.5 mm coaxial power plug | ||||||
| Dimensions | 176×104×72mm (6.9” × 4.1’’ ×2.8”) (L x W x H) | 176×104×72mm (6.9” × 4.1’’ ×2.8”) (L x W x H) | ||||||
| Weight | 0.62kg(1.37lb) | 0.62kg(1.37lb) | ||||||
| Material | Metal | Metal | ||||||
| Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | ||||||
| Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 4KV | 4KV | ||||||
| Reset Button | Support | Support | ||||||
| Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
||||||
| Datasheets | |
|---|---|
| UNV 4+4MP Dual Camera IR 2.8mm Prime Dome camera - Datasheet |
Brand: Uniview |
Code: IPC3224SS-28K-I1
MPN:
APN: 6937096322201 |
Supplier Code:
Brand: Uniview |
Code: IPC3224SS-28K-I1
MPN:
APN: 6937096322201 |
Supplier Code:
At a glance
• High quality image with 2*4MP resolution, 1/3.0"CMOS sensor
• Single IP with dual channels
• 4MP (2688*1520)@25/20fps; 4MP(2560*1440)@25/20fps; 3MP(2304*1296) @30/25fps;2MP(1920*1080)@30/25fps
• Ultra 265, H.264,H.265, MJPEG
• Both channels support intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and motor vehicle and non-motor vehicle
• Intelligent (Only Channel 1)
• Intelligent People Flow Counting and Crowd Density Monitoring (Only Channel 1)
• 130dB true WDR technology enables clear image in strong light scene
• Built-in two Mics
• Supports 512 GB Micro SD card
• DC12V or PoE(IEEE 802.3af) power supply
• IP67 protection and IK10 vandal resistant
• 3-Axis
