UNV 4MP LightHunter IR IP67 4x Zoom Bullet Camera IPC264SA-DZK | C.R. Kennedy

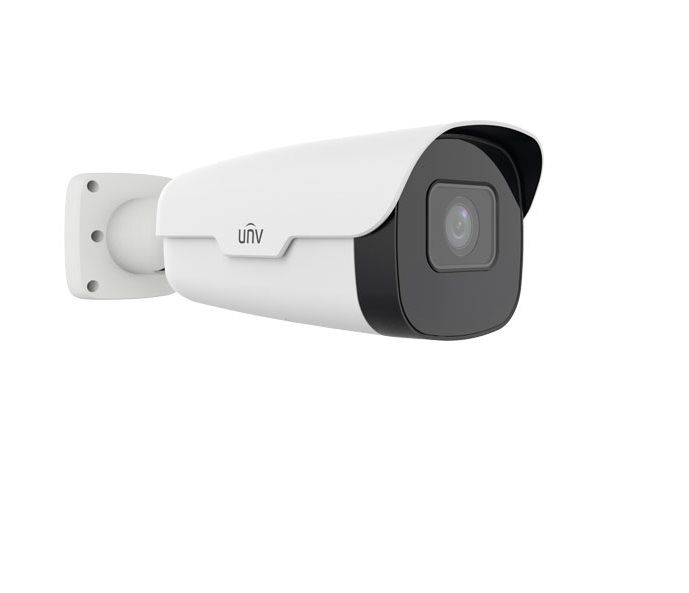

UNV 4MP LightHunter IR IP67 4x Zoom Bullet Camera

UNV 4MP LightHunter IR IP67 4x Zoom Bullet Camera

IN STOCK
10-14 DAYS
PRODUCT ENQUIRY

4MP LightHunter Deep Learning Bullet Network Camera

• 1/1.8",progressive scan,CMOS
• Up to 2688x1520 resolution,30fps
• 2.8~12mm Optical Zoom & Auto Focus
• Smart IR, up to 50m IR distance
• 120dB True WDR
• Ultra 265,H.265,Corridor Mode,ROI,ONVIF
• With deep learning algorithm, it supports deep people counting, face capture, deep perimeter protection.
• AC24V±25%,DC12V(-10%~+25%),PoE
• Support 1/1 audio in/out, 2/1 alarm in/out
• IP67, IK10

Brand: Uniview   |    Code: IPC264SA-DZK
APN: 9319499236892   |    Supplier Code:

Features

Optics

 1/1.8", Powered by lighthunter

 SmartIR, up to 50m (164 ft) IR distance

 Up to 120 dB Optical WDR (Wide Dynamic Range)

 Adaptive fogging

Compression

 Ultra 265, H.265, H.264, MJPEG

 Triple streams

 2688*1520@30fps in the main stream

 ROI (Region of Interest)

 9:16 corridor mode

Network

 ONVIF Conformance

Structure

 DC12V or AC24V or PoE power supply

 Wide voltage range of ±25% in AC, -10%~+25% in DC

 Micro SD, up to 256 GB

 Alarm 2 in and 1 out, Audio 1 in and 1 out

 IP67 ingress protection

 IK10 vandal resistant

  IPC264SA-DZK
Camera
Sensor 1/1.8", 4.0 megapixel, progressive scan, CMOS
Lens 2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens
Iris Auto aperture
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8-12 42-180 16.8-72 8.4-36 4.2-18
Angle of View (H) 35.6°~107.9°
Angle of View (V) 20.4°~75.4°
Angle of View (O) 43.8°~140.3°
Shutter Auto/Manual, 1 ~ 1/100000s
Min. Illumination Colour:0.0005lux (F1.2, AGC ON)
0 lux with IR
WDR 120dB
Day/Night IR-cut filter with auto switch (ICR)
Video
Video Compression Ultra 265,H.265,H.264,MJPEG
Frame Rate 4MP(2688*1520),Max 30fps
9:16 corridor mode Supported
ROI Supported
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Supported
Smart
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U,G.711A
Voice intercom Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network
Protocols L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,DNS,DDNS,NTP,FTP,UPnP,HTTP,SNMP,SIP,802.1X,HTTPS
Compatible Integration ONVIF,IMOS
Interface
Audio I/O Audio cable
1/1
Alarm I/O 2/1
Network 1 x RJ45 10M/100M Base-TX Ethernet
Serial Port 1 RS485
General

Power

AC24V±25%, DC12V(-10%~+25%), PoE(IEEE802.3at)
Power consumption: 13.3W
Support reverse polarity protection, Overvoltage and overcurrent protection
Dimensions (Ø x H) Φ306.4x104.1x98.4mm(Φ12.1’’x4.1’’x3.9’’)
Weight 1.65kg(3.64lb)
Working Environment -30℃~60℃(-22°F ~ 140°F),≤95%RH
IR 50m (164ft)
Vandal Resistant IK10
Ingress Protection IP67
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

FEATURES

Features

Optics

 1/1.8", Powered by lighthunter

 SmartIR, up to 50m (164 ft) IR distance

 Up to 120 dB Optical WDR (Wide Dynamic Range)

 Adaptive fogging

Compression

 Ultra 265, H.265, H.264, MJPEG

 Triple streams

 2688*1520@30fps in the main stream

 ROI (Region of Interest)

 9:16 corridor mode

Network

 ONVIF Conformance

Structure

 DC12V or AC24V or PoE power supply

 Wide voltage range of ±25% in AC, -10%~+25% in DC

 Micro SD, up to 256 GB

 Alarm 2 in and 1 out, Audio 1 in and 1 out

 IP67 ingress protection

 IK10 vandal resistant

SPECIFICATIONS

  IPC264SA-DZK
Camera
Sensor 1/1.8", 4.0 megapixel, progressive scan, CMOS
Lens 2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens
Iris Auto aperture
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8-12 42-180 16.8-72 8.4-36 4.2-18
Angle of View (H) 35.6°~107.9°
Angle of View (V) 20.4°~75.4°
Angle of View (O) 43.8°~140.3°
Shutter Auto/Manual, 1 ~ 1/100000s
Min. Illumination Colour:0.0005lux (F1.2, AGC ON)
0 lux with IR
WDR 120dB
Day/Night IR-cut filter with auto switch (ICR)
Video
Video Compression Ultra 265,H.265,H.264,MJPEG
Frame Rate 4MP(2688*1520),Max 30fps
9:16 corridor mode Supported
ROI Supported
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Supported
Smart
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U,G.711A
Voice intercom Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network
Protocols L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,DNS,DDNS,NTP,FTP,UPnP,HTTP,SNMP,SIP,802.1X,HTTPS
Compatible Integration ONVIF,IMOS
Interface
Audio I/O Audio cable
1/1
Alarm I/O 2/1
Network 1 x RJ45 10M/100M Base-TX Ethernet
Serial Port 1 RS485
General

Power

AC24V±25%, DC12V(-10%~+25%), PoE(IEEE802.3at)
Power consumption: 13.3W
Support reverse polarity protection, Overvoltage and overcurrent protection
Dimensions (Ø x H) Φ306.4x104.1x98.4mm(Φ12.1’’x4.1’’x3.9’’)
Weight 1.65kg(3.64lb)
Working Environment -30℃~60℃(-22°F ~ 140°F),≤95%RH
IR 50m (164ft)
Vandal Resistant IK10
Ingress Protection IP67
