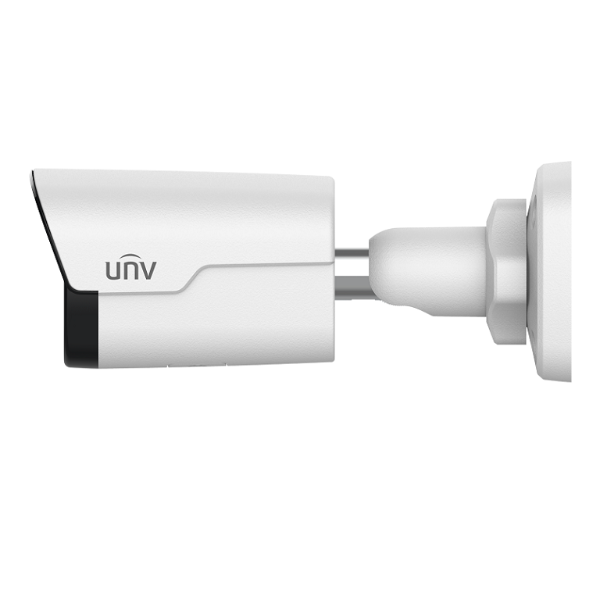

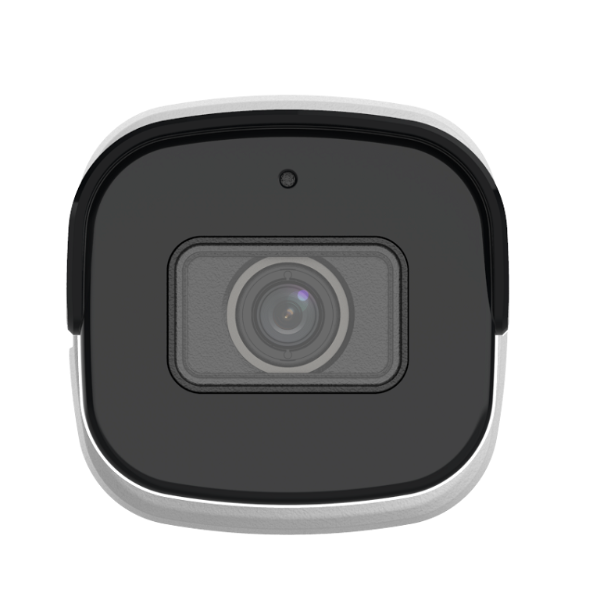

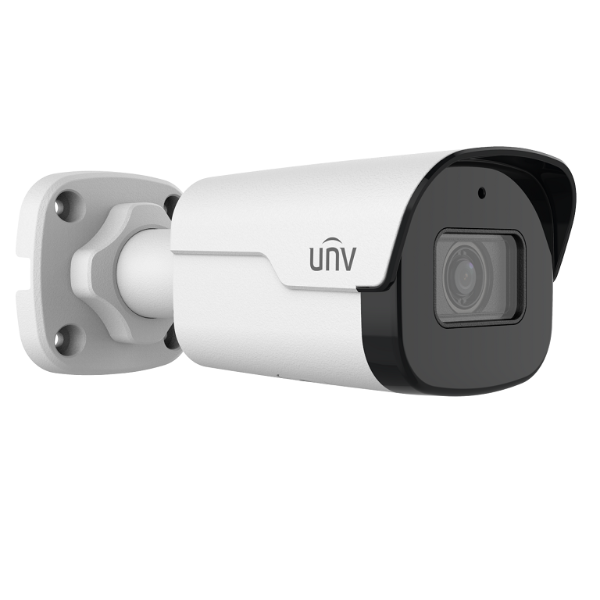

UNV 8MP IR 2.8mm Mini Bullet Camera ** IPC2128SSADF28KM

UNV 8MP IR 2.8mm Mini Bullet Camera **

1/2.8’’, Powered by lighthunter
SmartIR, up to 50m (164 ft) IR distance
Ultra 265, H.265, H.264, MJPEG
3840*2160@20fps in the main stream
ONVIF Conformance
Micro SD, up to 256 GB
IP67 ingress protection

OPTICS

1/2.8’’, Powered by lighthunter
SmartIR, up to 50m (164 ft) IR distance
Up to 120 dB Optical WDR (Wide Dynamic Range)

SMART

Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

COMPRESSION

Ultra 265, H.265, H.264, MJPEG
Triple streams
3840*2160@20fps in the main stream
ROI (Region of Interest)

NETWORK

ONVIF Conformance

STRUCTURE

Built-in MIC
DC12V or PoE power supply
Wide voltage range of ±25% in DC
Micro SD, up to 256 GB
IP67 ingress protection

Camera
Sensor	1/2.8", 8.0 megapixel, progressive scan, CMOS
Lens	[email protected]
Iris	Fixed aperture
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	2.8mm	86.9		34.8	17.4		8.7
Angle of view(H)	96.6°
Angle of View (V)	50.8°
Angle of View (O)	125.6°
Adjustmentangle	Pan: 0°~360°		Tilt: 0°~90°			Rotate:0°~360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.003 Lux (F1.6, AGC ON)
	0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>55dB
IR Range	Up to 50m (164 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264,MJPEG
Frame Rate	Main Stream: 8MP(38402160),Max 20fps; 6MP(30722048),Max 30fps; 5MP(30721728),Max 30fps; 2MP (19201080), Max 30fps;
	Sub Stream: 2MP (1920*1080), Max 30fps;
	Third Stream: D1 (720*576), Max 30fps
Video Bit Rate	128 Kbps~16 Mbps
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas(8 blacks/4 mosaics+4 blacks)
ROI	Supported
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Smart
Smart intrusion Prevention	Support false alarm filtering，Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection ; Motion detection ;
Recognition	Audio detection
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR,NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible Integration	ONVIF(Profile S, Profile G), API
Client	EZStation, EZView ,EZLive
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Built-in Mic	Supported
Network	1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
	Power consumption: Max 5.9 W
	Support overcurrent protection and input short circuit protection
Dimensions (Ø x H)	Φ155.9x63.1x62.7mm(Φ6.1’’x2.5’’x2.5’’)
Weight	0.4kg(0.88lb)
Material	Metal
Working Environment	--40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	2KV
Ingress Protection	IP67

Datasheets
	UNV 8MP IR 2.8mm Mini Bullet Camera ** - Datasheet

Brand: Uniview | Code: IPC2128SSADF28KM MPN:
APN: 6937096302470 | Supplier Code:
