UNV Mini Bullet 2MP Starlight 4.0mm IPC2122SR3-UPF40 | C.R. Kennedy

UNV Mini Bullet 2MP Starlight 4.0mm

UNV Mini Bullet 2MP Starlight 4.0mm

PRODUCT ENQUIRY
Brand: Uniview   |    Code: IPC2122SR3-UPF40
APN: 9319499019891   |    Supplier Code:
Camera
Sensor 1/2.9", 2.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F1.6
Angle of View(H) 76.6°
Shutter Auto/Manual, 1/6~1/100000 s
Min. Illumination Colour: 0.002 Lux (F1.6, AGC ON) 0 Lux with IR on
IR Range Up to 30m (98 ft) IR range
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
WDR Digital
Noise Reduction 2D/3D
Video
Max. Resolution 1920×1080
Video Compression H.265, H.264, MJPEG
Frame Rate 1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 30 fps
Video Streaming Triple
9:16 Corridor Mode Supported
ROI Supported
HLC Supported
Evaluative Metering Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
Smart
Behavior Detection Intrusion, crossing line, motion detection
Intelligent Identification Face detection, Defocus, Scene Change
Statistical Analysis People counting
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration ONVIF, API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 6.4 W
Dimensions (L × W × H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection IP67

This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

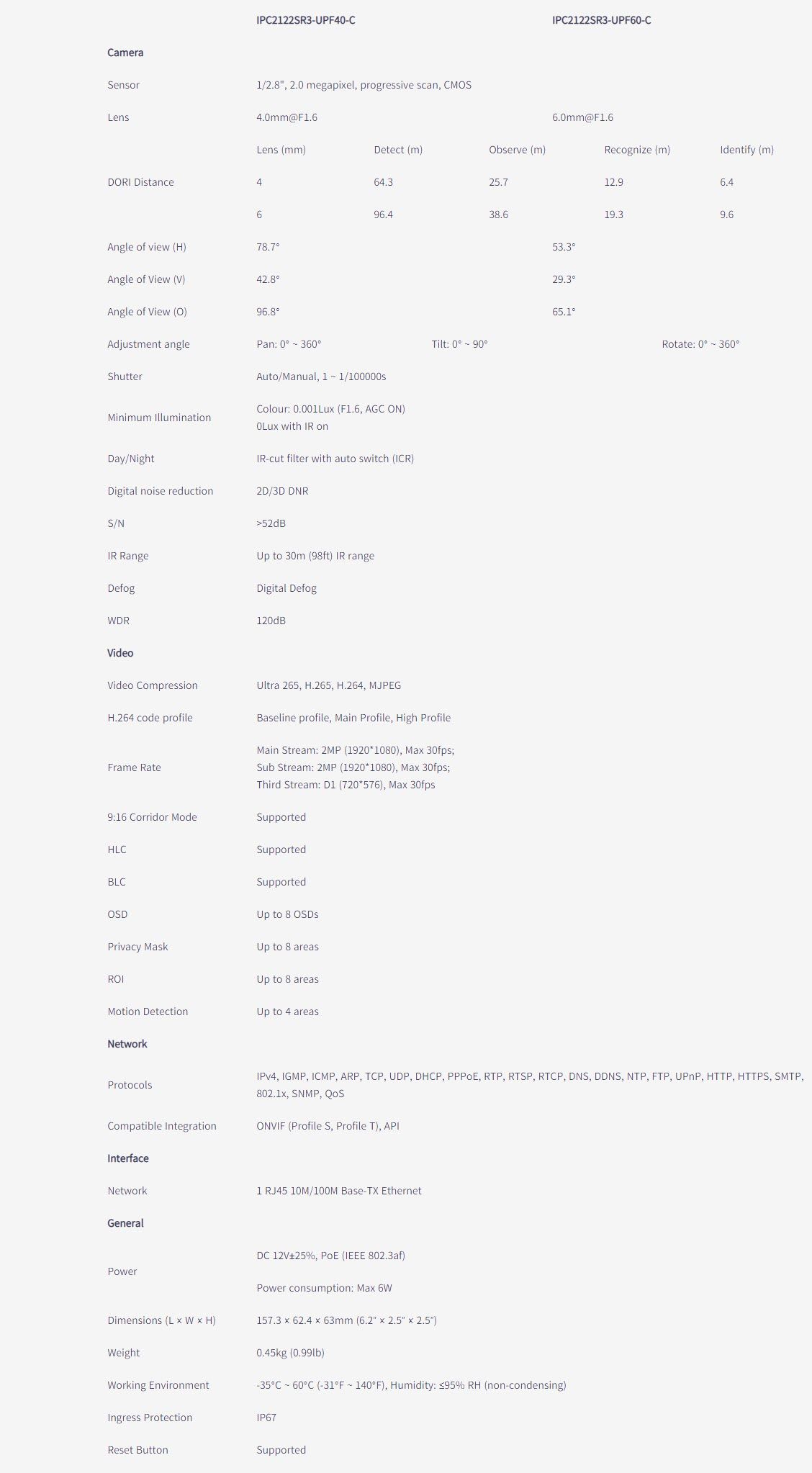

SPECIFICATIONS

Camera
Sensor 1/2.9", 2.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F1.6
Angle of View(H) 76.6°
Shutter Auto/Manual, 1/6~1/100000 s
Min. Illumination Colour: 0.002 Lux (F1.6, AGC ON) 0 Lux with IR on
IR Range Up to 30m (98 ft) IR range
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
WDR Digital
Noise Reduction 2D/3D
Video
Max. Resolution 1920×1080
Video Compression H.265, H.264, MJPEG
Frame Rate 1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 30 fps
Video Streaming Triple
9:16 Corridor Mode Supported
ROI Supported
HLC Supported
Evaluative Metering Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
Smart
Behavior Detection Intrusion, crossing line, motion detection
Intelligent Identification Face detection, Defocus, Scene Change
Statistical Analysis People counting
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration ONVIF, API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 6.4 W
Dimensions (L × W × H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection IP67
