Dahua 4" Test Monitor for IP & HDCVI Cameras PFM900E DH-PFM900-E

Dahua 4" Test Monitor for IP & HDCVI Cameras PFM900E

Ergonomic, Portable Design with One-handed Operation
4-in. IPS TFT Screen, 800 x 480 Resolution
H.265 and H.264 Dual Codecs
QWERTY Flip-open Keyboard with 45 Keys
Supports IP, HDCVI, AHD, TVI, and CVBS Formats
Audio I/O and RS485 Control
TDR Network Cable Tests and Digital Multimeter Functions
PoE Charging and 12 VDC, 2 A Power Output
7.4 W / 22 Wh Polymer Lithium Ion Battery, up to 8 Hours Normal Operation
Dual LED Flashlight

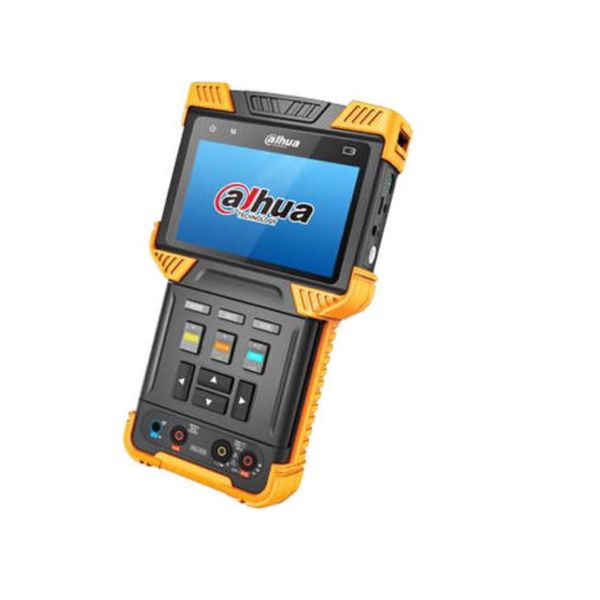

The DH-PFM900-E Integrated Mount Tester from Dahua Technology features a 4" LCD screen with 800 x 480 resolution. The tester supports IP, HD-CVI, AHD, HD-TVI, and CVBS video formats. Its flip-open keyboard has 45 keys and its lithium-ion polymer battery provides power for up to eight hours. For better visibility in low lighting conditions, the tester comes equipped with a dual-LED flashlight.

Interface

Network	2 x RJ45 10/100/1000 Mb/s (LAN/PSE, PD)
Video	1 x BNC Video Input 1 x BNC Video Output
Control	1 x RS-485 Output
Power	1 x 12 VDC Charge Output
Audio	1 x 3.5 mm Audio Input
Other	1 x Micro-USB

IP Camera Tests

IP Camera Type	ONVIF (with PTZ Control), RTSP, RTP
IP Camera Test	ONVIF Camera Auto-Scan Manual IP Camera Add UDP/TCP Real-Time Video Display 8x Digital Zoom Snapshot, Record, Photo View, and Playback

Supported Video Format

HD-CVI	1280 x 720p at 25, 30, 50, 60 fps 1920 x 1080p at 25, 30 fps 2560 x 1440p at 25, 30 fps
HD-TVI	1280 x 720p at 25, 30, 50, 60 fps 1920 x 1080p at 25, 30 fps 2048 x 1536 at 18, 25, 30 fps 2560 x 1440 at 15, 25, 30 fps 2592 x 1944 at 12, 20 fps
AHD	1280 x 720p at 25, 30 fps 1920 x 1080p at 25, 30 fps 2560 x 1440p at 15, 18, 25, 30 fps
CVBS	PAL/NTSC
Camera Test	Real-Time Video HD Coaxial PTZ, RS-485 Control Audio Test Full-Screen Preview and 8 x Digital Zoom Snapshot, Record, Photo View and Video Playback

PTZ Control

Protocol	More than 30 Protocols Including Pelco D/P, Samsung, and Panasonic
Baud Rate	150, 300, 600, 1200, 2400, 4800, 9600, and 19,200 bps

Cable Tester

Network Cable

TDR Method
Measurement Resolution: 0.1 m
Accuracy: ≤ 1 m

Functions

Network	IP Address Scan, Ping Test, DHCP Server, Ethernet Link Detection, Ethernet Loop Detection, Data Link Quality Detection, Ethernet Flow Detection
Digital Multimeter (DMM)	AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode Forward Voltage, Open and Short Testing
Data Monitor	Capture and Analyze Command Data from Controlling Device via RS-485 Port
LEDs	Flashlight: 2 x 35-Lumen LEDs
Audio	Test Microphone or Other Audio Input Device (via 3.5 mm Audio Port)
USB Storage	Test USB Storage Devices (via Mini USB Port)
System Upgrade	Online

Screen

Screen Size	4" / 10.2 cm
Type	TFT
Resolution	800 x 480
Color Support	16.7 Million Colors
Control	Backlight Brightness Adjustable

Storage

Capacity

8 GB Flash (internal)

General

Language Support	Chinese, English, French, German, Hebrew, Romanian, Serbian, Spanish, Turkish, Czech, and More
Auto Power Off	Disable / 5 to 60 Minutes
Tone	Keyboard: On/Off
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	30 to 90%
Casing	Plastic
Dimensions	7.48 x 4.53 x 1.47" / 190.0 x 115.0 x 37.30 mm
Weight	1.1 lb / 0.50 kg

Power

Charger	PoE Power Injector Input: 100 to 230 VAC; 50/60 Hz Output: 48 V / 15 W
Battery	7.4 V Lithium-Ion Polymer Battery, 22 W Capacity
Working Time	Up to 8 Hours
PoE+ Power Out	25.5 W, Maximum (802.3at)
Power Out	12 VDC, 2 A, Maximum

Certifications

Safety	EN 60950-1:2006, A11:2009, A1:2010, A12:2011, +A2:2014
Electro Magnetic Compatibility	EN 55032:2015 EN 55024:2010+A1:2015 EN 61000-3-2:2014 EN 61000-3-3:2013
RoHS	EN 62321-1:2013

Packaging Info

Package Weight	3 lb
Box Dimensions (LxWxH)	11 x 7 x 5"
