DAHUA 4CH LITE KIT

DAHUA 4CH LITE KIT

  IN STOCK
PRODUCT ENQUIRY
  • Includes 4 x 6MP IP67 IR 2.8mm Turret cameras
  • Up to 4 channel IP camera input
  • Max 40Mbps incoming bandwidth
  • H.264 / H.265 dual codec decoding
  • Up to 8MP Resolution for Preview and Playback
  • Up to 2ch @ 4K / 8ch @ 1080P decoding
  • HDMI / VGA simultaneous video output
  • All channel synchronous realtime playback, GRID interface
  • 3D intelligent positioning with Dahua PTZ camera
  • 2TB fitted
  • 2 x USB2.0 Ports
  • Support IPC UPnP
  • 4 x PoE ports
  • Smart 1U NVR Box Design
Brand: Dahua   |    Code: DAHUA-KIT-A

This is a Kit item made up of the following products:

System overview

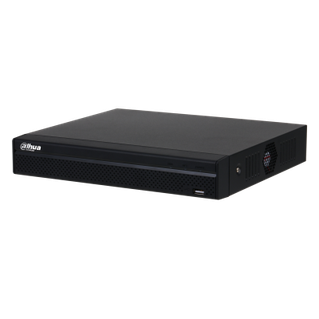

Dahua's NVR4000-4KS2 is the first Lite series NVRs which can support 4K and H.265. And, it has the most reasonable price and best quality. This Lite NVR provides up to 8MP resolution. For applications where details are critical for identification, it provides a powerful image performace with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage. Designed as a cost-effective, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4, enabling interoperability when combined with IP cameras.



Functions

4K Resolution The NVR supports 4K ultra HD resolution (3840 x 2160) for recording, live viewing and playback. Intelligent Video System (Optional) Working with built-in intelligent video analytics IP cameras, the NVR has the ability to detect and analyze moving objects for improved video surveillance. The NVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, People Counting, ideal for business intelligence, and Face Detection, for searching or identification of individuals. Smart Add With the Smart Add function, the installation of IP system is as easy as an analog system, no matter the NVR with or withou a PoE switch embeded. It should be noted that the NVR has to be in the same router as cameras. ANR (Automatic Network Replenishment Technology) Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it. Easy4ip You can monitor at anytime and anywhere with Easy4ip. With this function, you can manage your devices more convenient.

System

Main Processor

Industrial embedded micro-processor

Operating System

Embedded Linux

Operation Interface

Web; local GUI

Perimeter Protection by Camera

Performance

4/8 channels

AI Search

Search for pictures by channel, time and event type

SMD Plus by Camera

Performance

4/8 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

4/8

Network Bandwidth

80 Mbps for access, 80 Mbps for storage and 48 Mbps for forwarding

Resolution

8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more

Decoding Capability

8 channels@1080p (30 fps)

Video Output

HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA: 1920 × 1080; 1280 × 1024; 1280 × 720

Multi-screen Display

4-channel: 1/4
8-channel: 1/4/8/9

Third Party Camera Access

Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more

Compression

Video

Smart H.265+; Smart H.264+; H.265; H.264

Audio

PCM; G.711A; G.711U; G.726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P

Mobile Phone Access

Android; iOS

Interoperability

ONVIF (profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; Firefox

Record Playback

Multi-channel Playback

4-channel: 1/4
8-channel: 1/4/9

Record Mode

Manual; schedule (general; MD; alarm; MD & alarm; intelligent)

Storage Method

Local HDD and network

Backup

USB device

Playback Function

1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; privacy masking; video loss; PIR alarm; IPC alarm

Anomaly Alarm

Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly

Intelligent Alarm

Perimeter protection; SMD; people counting; heat map

Alarm Linkage

Record; snapshot; IPC external alarm output; buzzer; log; preset; email

External Port

Audio Input

1 channel, RCA connector

Audio Output

1 channel, RCA connector, which support voice intercom output

HDD

1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

2 rear USB 2.0 ports

HDMI

1

VGA

1

Network

1 independent 100 Mbps ethernet port

PoE

4 ports (IEEE802.3at/af)

General Parameter

Power Supply

48V/1.5A DC

Power Consumption

NVR: < 7.5W (without HDD)
PoE: Max 25.5W for single port, 48W in total

Net Weight

0.45 kg (0.99 lb) (without HDD)

Gross Weight

1.5 kg (3.31 lb) (without HDD)

Product Dimensions

204.6 mm × 206.4 mm × 45.6 mm (8.1" × 8.1" × 1.8")

Package Dimensions

361 mm × 259 mm × 94 mm (14.2" × 10.2" × 3.7")
