Unitree Go2 Pro Package Robot Quadruped
- Unitree Go2 Robotic Quadruped
- Available in 3 packages: Air, Pro and Edu.
- 4D Ultra-wide LIDAR as standard
- Weight: 15kg
- Ideal for consumers, schools, universities, research, and industrial applications.

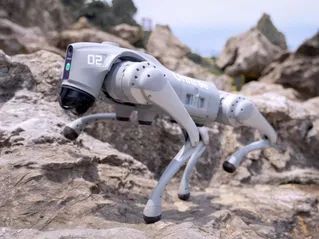

Your New Intelligent FriendBased on the technical innovation of lightweight quadrupeds, Unitree upgraded its technology to create a smart and improved walking partner. Go2 features Unitree's self-developed 4D LIDAR L1 with 360° x90° hemispherical ultra-wide recognition, super small blind spot and a minimum detection distance as low as 0.05m, enabling Go2 to recognise multiple terrains.
|
 |
 |

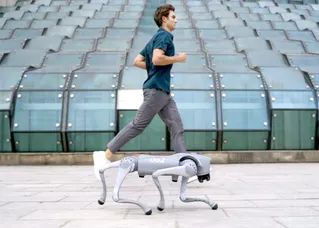

Intelligent side-by-side followBy adopting the new wireless vector positioning and control technology, the positioning accuracy is technically upgraded by 50%. In open spaces with no shelter, the remote control distance can reach over 30m, and combined with the optimised obstacle avoidance strategy, it can make the robot better traverse complex terrain.
|

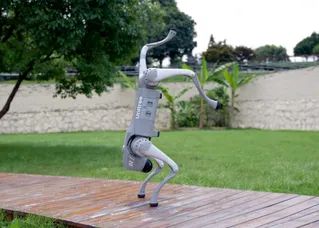

Capable of a variety of actions and posesThe Unitree Go2 boasts a variety of poses such as jumping, stretching, shaking hands, cheering, pouncing, and sitting down.
|
 |
| Specifications | Go2 Air | Go2 Pro | Go2 Edu |
| Dimensions standing | 70x31x40cm | 70x31x40cm | 70x31x40cm |
| Dimensions crouching | 76x31x20cm | 76x31x20cm | 76x31x20cm |
| Weight (with battery) | 15kg | 15kg | 15kg |
| Material | Aluminium alloy & high-strength plastic | Aluminium alloy & high-strength plastic | Aluminium alloy & high-strength plastic |
| Voltage | 28V - 33.6V | 28V - 33.6V | 28V - 33.6V |
| Peak capacity | 2000W | 2000W | 2000W |
| Payload | 7kg | 8kg | 8kg |
| Max speed | 2.5m/s | 3.5m/s | 3.7m/s |
| Max climb height | 15cm | 16cm | 16cm |
| Max climb angle | 30° | 40° | 40° |
| Range of motion | Body: -48° to 48° Thigh: -200° to 90° Shank: -156° to -48° |
Body: -48° to 48° Thigh: -200° to 90° Shank: -156° to -48° |
Body: -48° to 48° Thigh: -200° to 90° Shank: -156° to -48° |
| Intra-joint circuit | Yes | Yes | Yes |
| Joint Heat Pipe Cooler | Yes | Yes | Yes |
| Wireless Vector Positioning Module | No | Yes | Yes |
| LiDAR FOV | 360° x 90° | 360° x 90° | 360° x 90° |
| Intelligent Detection & Avoidance | Yes | Yes | Yes |
| HD Wide-angel camera | Yes | Yes | Yes |
| Foot-end force sensor | No | No | Yes |
| Basic Actions | Yes | Yes | Yes |
| Auto-scaling strap | No | Yes | Yes |
| Upgraded Intelligent OTA | Yes | Yes | Yes |
| RTT 2.0 image transmission | Yes | Yes | Yes |
| Graphical programme | Yes | Yes | Yes |
| Front light | Yes | Yes | Yes |
| WiFi6 with dual-band | Yes | Yes | Yes |
| Bluetooth 5.2/4.2/2.1 | Yes | Yes | Yes |
| 4G Module (China & EU) | No | Yes | Yes |
| Voice Function | No | Yes | Yes |
| ISS 2.0 Intelligent side-follow | Yes | Yes | Yes |
| Charging plate compatibility | No | No | Yes |
| Manual Controller | Optional | Optional | Yes |
| High computing power module | No | No | NVIDIA Jetson Orin (optional) |
| Battery | 8,000mAh | 8,000mAh | 15,000mAh (endurance) |
| Battery Life | 1-2h | 1-2h | 2-4h |
| Charger | 33.6V 3.5A | 33.6V 3.5A | 33.6V 9A |
| Warranty | 1 year | 1 year | 1 year |
| Brochures | |
|---|---|
| UTGO2PROPACK-CB - Brochure |
Brand: Unitree |
Code: UTGO2PROPACK-CB
Supplier Code: UTGO2PROPACK-CB
Brand: Unitree |
Code: UTGO2PROPACK-CB
Supplier Code: UTGO2PROPACK-CB
At a glance
- Unitree Go2 Robotic Quadruped
- Available in 3 packages: Air, Pro and Edu.
- 4D Ultra-wide LIDAR as standard
- Weight: 15kg
- Ideal for consumers, schools, universities, research, and industrial applications.
Your New Intelligent FriendBased on the technical innovation of lightweight quadrupeds, Unitree upgraded its technology to create a smart and improved walking partner. Go2 features Unitree's self-developed 4D LIDAR L1 with 360° x90° hemispherical ultra-wide recognition, super small blind spot and a minimum detection distance as low as 0.05m, enabling Go2 to recognise multiple terrains.
|
|
|
Intelligent side-by-side followBy adopting the new wireless vector positioning and control technology, the positioning accuracy is technically upgraded by 50%. In open spaces with no shelter, the remote control distance can reach over 30m, and combined with the optimised obstacle avoidance strategy, it can make the robot better traverse complex terrain.
|
Capable of a variety of actions and posesThe Unitree Go2 boasts a variety of poses such as jumping, stretching, shaking hands, cheering, pouncing, and sitting down.
|
|
