Videotec USB-RS485 Converter USB485 | C.R. Kennedy

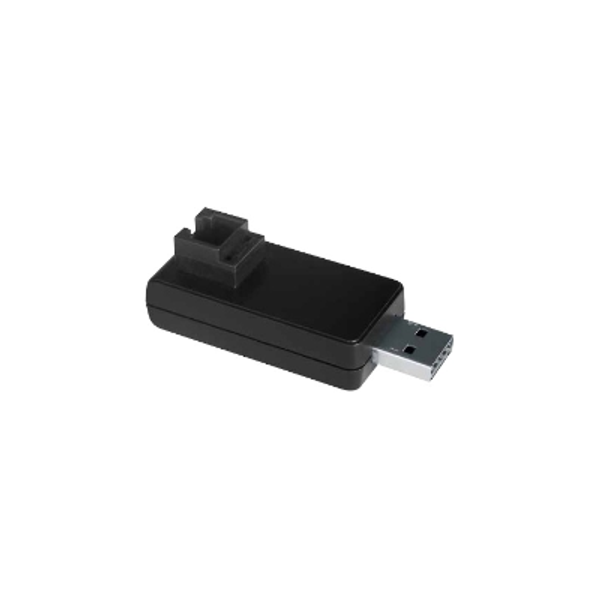

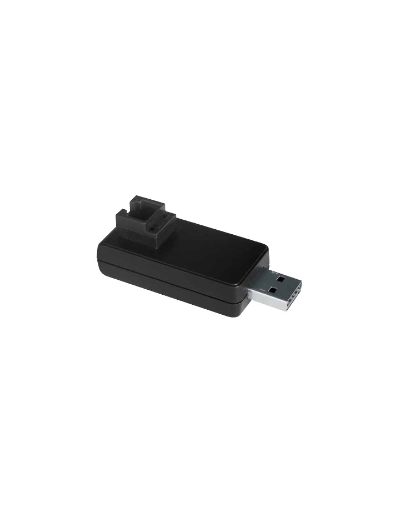

Videotec USB-RS485 Converter

Videotec USB-RS485 Converter

IN STOCK
10-14 DAYS
PRODUCT ENQUIRY



  • Suitable for connecting a DCJ Keyboard to a PC
  • USB 1.1 - 2.0 Full Speed compliant
  • No external power supply
  • ESD, EFT, Lighting protection at USB and RS-485 Data line



Brand: Videotec   |    Code: USB485
APN: 9319499627485   |    Supplier Code: USB485

DESCRIPTION

The USB485 converter is suitable for connecting a DCJ Keyboard to a PC. This device can be temporary used to update the firmware of a PTZ units (see related products) from console in remote mode: this operation must be performed by service persons.

It is also possible to control any RS485 device with a terminal emulator running from the PC.

Main Features

  • Suitable for connecting a DCJ Keyboard to a PC
  • USB 1.1 - 2.0 Full Speed compliant
  • No external power supply
  • ESD, EFT, Lighting protection at USB and RS-485 Data line
  • Transmission speed up to 115.2 Kbps
  • Driver supports: Windows Server 2008 / Windows Server 2008 x64 / Windows Vista / Windows Vista x64 / Windows Server 2003 / Windows Server 2003 x64 / Windows XP / Windows XP x64 / Windows 2000 / Windows 7 / Windows 7 x64 / Windows 8 / Windows 8 x64 / Linux

SPECIFICATIONS

Dimensions 62x21x25mm
Unit weight 0.02kg
Connections SB Type A
RJ11
Power supply 5 VDC by USB connector
Consumption < 100 mA < 100 mA
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

FEATURES

DESCRIPTION

The USB485 converter is suitable for connecting a DCJ Keyboard to a PC. This device can be temporary used to update the firmware of a PTZ units (see related products) from console in remote mode: this operation must be performed by service persons.

It is also possible to control any RS485 device with a terminal emulator running from the PC.

Main Features

  • Suitable for connecting a DCJ Keyboard to a PC
  • USB 1.1 - 2.0 Full Speed compliant
  • No external power supply
  • ESD, EFT, Lighting protection at USB and RS-485 Data line
  • Transmission speed up to 115.2 Kbps
  • Driver supports: Windows Server 2008 / Windows Server 2008 x64 / Windows Vista / Windows Vista x64 / Windows Server 2003 / Windows Server 2003 x64 / Windows XP / Windows XP x64 / Windows 2000 / Windows 7 / Windows 7 x64 / Windows 8 / Windows 8 x64 / Linux

SPECIFICATIONS

SPECIFICATIONS

Dimensions 62x21x25mm
Unit weight 0.02kg
Connections SB Type A
RJ11
Power supply 5 VDC by USB connector
Consumption < 100 mA < 100 mA
