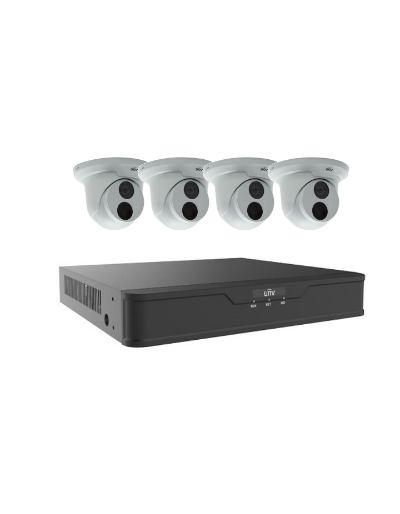

Uniview X Series NVR 4 CH 2TB + 4 x 6MP Turret Cameras

Uniview X Series NVR 4 CH 2TB + 4 x 6MP Turret Cameras

  NO STOCK
PRODUCT ENQUIRY

Surveillance solutions for home and small office

  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 4K resolution recording
  • 1 SATA HDD up to 10 TB
  • Support cloud upgrade
Brand: Uniview   |    Code: UNV KIT B - X
Supplier Code: 100

This is a Kit item made up of the following products:

NVR FEATURES

  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 4K resolution recording
  • 1 SATA HDD up to 10 TB
  • Support cloud upgrade

TURRET CAMERA FEATURES

UNV Turret 6MP IP67 IR 2.8mm Starlight

  • 6MP WDR Starlight Network IR Fixed Dome Camera
  • 2.8mm f/1.6 fixed lens
  • Smart IR up to 30m
  • ONVIF conformance
  • IP67

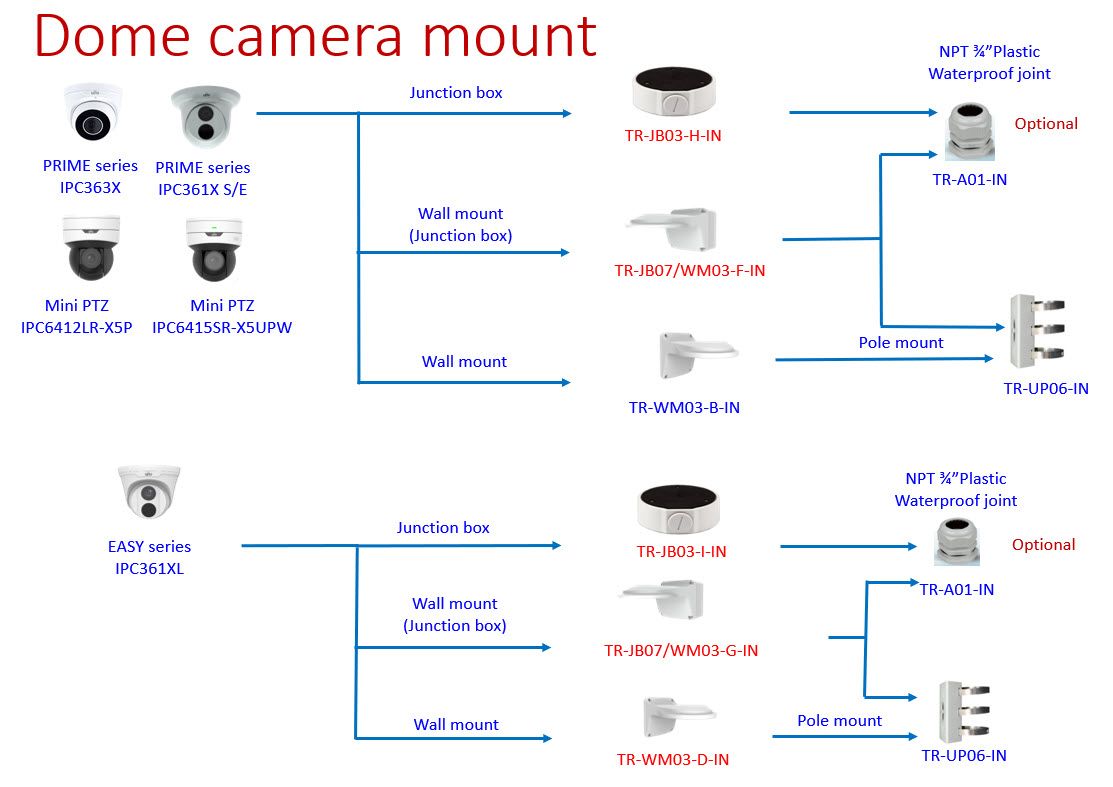

turret accessory guide.jpg

SPECIFICATIONS - NVR

Video/Audio Input
IP Video Input 4-ch
Network
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 40Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback 4-ch
Corridor Mode Screen 3/4
Decoding
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30
Hard Disk
SATA 1 SATA interface
Capacity up to 10TB for each disk
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
Supported Standard IEEE 802.3at, IEEE 802.3af
PoE
Interface 4 independent 100 Mbps PoE network interfaces
Max Power Max 30W for single port
Max 54W in total (13.5W for each)
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC
Power Consumption: ≤10 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 260mm × 240mm × 46mm (10.2"×9.4"×1.8")
Weight (without HDD) 1.1kg (2.43 lb)



SPECIFICATIONS 6MP UNV TURRETS

  IPC3616LE-ADF28KM-G IPC3616LE-ADF40KM-G
Camera
Sensor 1/2.7", progressive scan, 6.0 megapixel, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 63 25.2 12.6 6.3
4mm 90 36 18 9
Angle of view(H) 105.3° 79.7°
Angle of View (V) 69.5° 51.8°
Angle of View (O) 136.8° 98.1°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1/6~1/100000 s
Minimum Illumination Colour: 0.005Lux (F1.6, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52 dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 6MP(3072*2048), Max 25fps; 5.3M (3072*1728), Max 30fps; 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection、Audio detection
Intelligent Identification Defocus, Scene Change
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8 KHZ
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 8.9W
Dimensions (Ø x H) Φ126 x 94 mm (Ø5.0” x 3.7”)
Weight 0.41 kg(0.90 lb)
Operating Conditions -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection IP67
