Uniview X Series NVR 4 CH 2TB + 2 x 5MP Turret Cameras UNV KIT A - X | C.R. Kennedy

Uniview X Series NVR 4 CH 2TB + 2 x 5MP Turret Cameras

Uniview X Series NVR 4 CH 2TB + 2 x 5MP Turret Cameras

  NO STOCK
PRODUCT ENQUIRY

Surveillance solutions for home and small office

  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 4K resolution recording
  • 1 SATA HDD up to 10 TB
  • Support cloud upgrade
Brand: Uniview   |    Code: UNV KIT A - X

This is a Kit item made up of the following products:

Product Features (4K NVR)

    • Support Ultra 265/H.265/H.264 video formats
    • 4-channel input
    • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
    • Support 1-ch HDMI, 1-ch VGA
    • HDMI and VGA simultaneous output
    • Up to 4K resolution recording
    • 1 SATA HDD up to 10 TB
    • Support cloud upgrade

UNV Turret 5MP IP67 IR 2.8mm Starlight

  • 5MP WDR Starlight Network IR Fixed Dome Camera
  • 2.8mm f/1.6 fixed lens
  • Smart IR up to 30m
  • ONVIF conformance
  • IP67

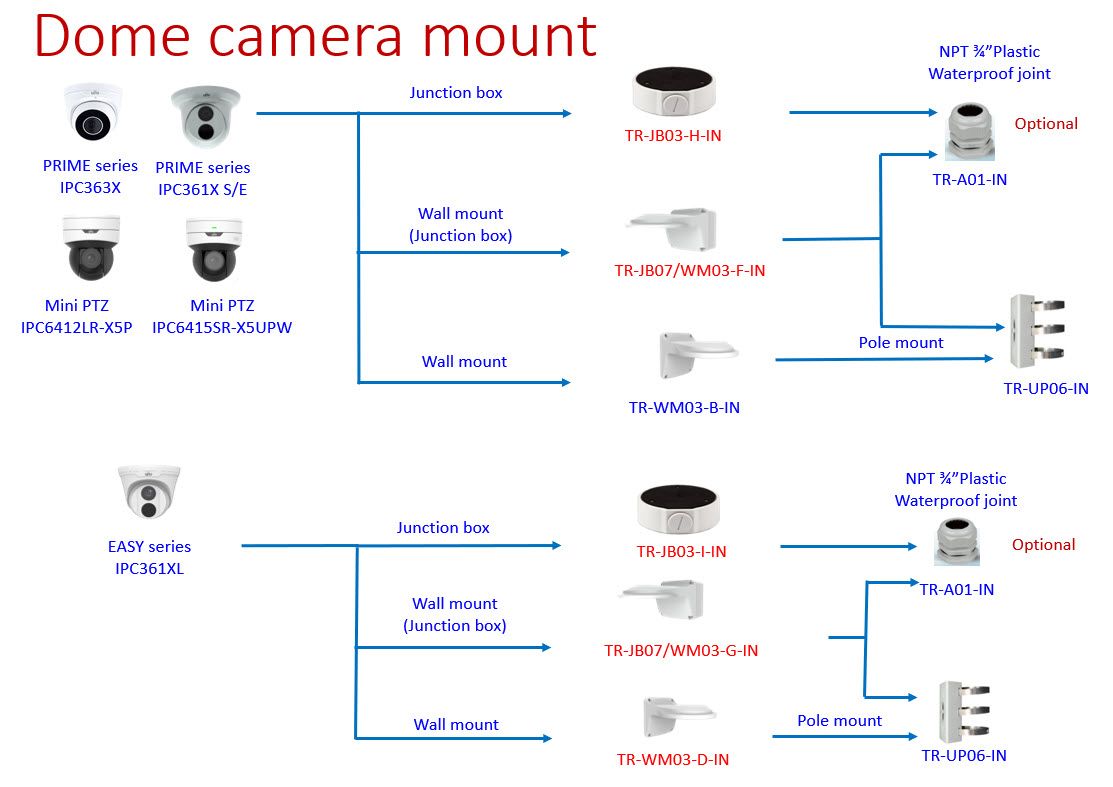

 turret accessory guide.jpg



NVR 301-04X-P42TB

Video/Audio Input
IP Video Input 4-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 4-ch
Corridor Mode Screen 3/4
Decoding
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30
Hard Disk
SATA 1 SATA interface
Capacity up to 10TB for each disk
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB2.0,1 x USB3.0
PoE
Interface 4 independent 100 Mbps PoE network interfaces
Max Power Max 30W for single port
Max 54W in total (13.5W for each)
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC
Power Consumption: ≤9 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight (without HDD) 1kg (2.20 lb)
