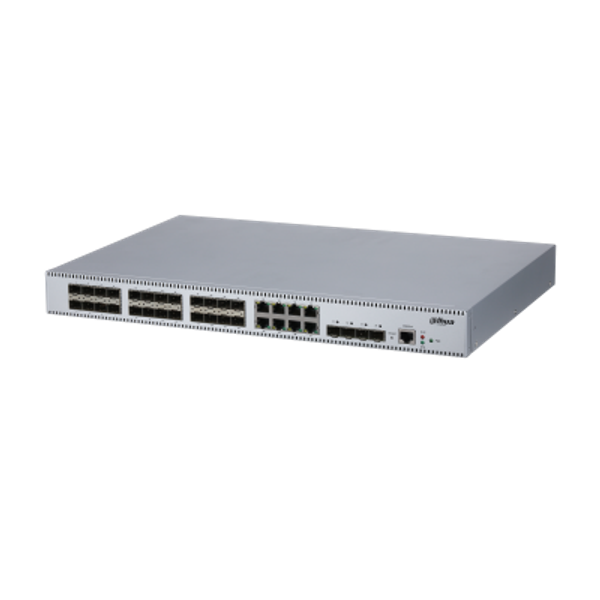

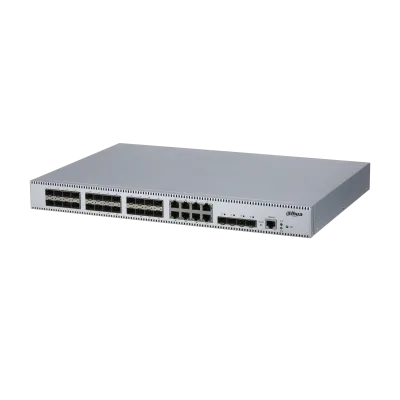

L2+ Managed Switch
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Data Transmission Port |
24 fiber ports with 100/1000 Mbps Base-X |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Debugging |
1 console port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
AC 100V–240V |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
-20°C to +55°C (-4°F–131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Humidity |
10%–90% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Idling power consumption: 15W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switching Capacity |
221 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Forwarding Rate |
107 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Cache |
32 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC Table Size |
32 K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Static MAC Address |
256 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN Amount |
4K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Router Ports |
128 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IPv4 Router |
128 static channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standards Compliance |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad and IEEE 802.3ae |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ARP |
1K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC Address Table |
Support static MAC address |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spanning Tree Protocol |
STP, RSTP, MSTP and ERPS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN |
802.1Q |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flow Control |
Support flow control based on IEEE802.3X |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Link Aggregation |
Support static manual aggregation and static LACP aggregation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port Mirroring |
Support one-to-one and many-to-one port mirroring |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multicast |
Support IGMP snooping |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DHCP |
Support DHCP-Server, DHCP-Client and DHCP-Snooping |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security |
IEEE802.1x, support ACL and loop protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QoS |
Support QoS based on COS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System Maintenance |
Support upload and download of configuration file |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Device Management |
Web, Telnet, CLI, SNMP V1/V2C/V3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thunderproof |
Common mode: 4kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
3.60 kg (7.94 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
4.75 kg (10.47 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
360 mm × 440 mm × 43.6 mm (14.17" × 17.32" × 1.72") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
Packing box: 528 mm × 412 mm × 112 mm (20.79" × 16.22" × 4.41") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Package |
5 devices in one package |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE, FCC |
