Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model |

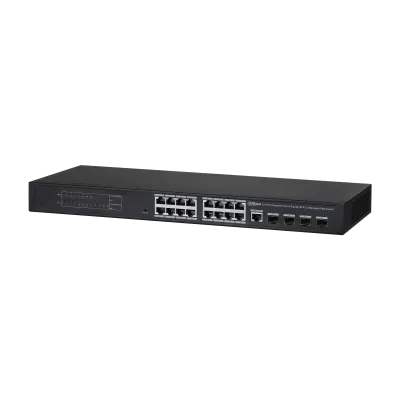

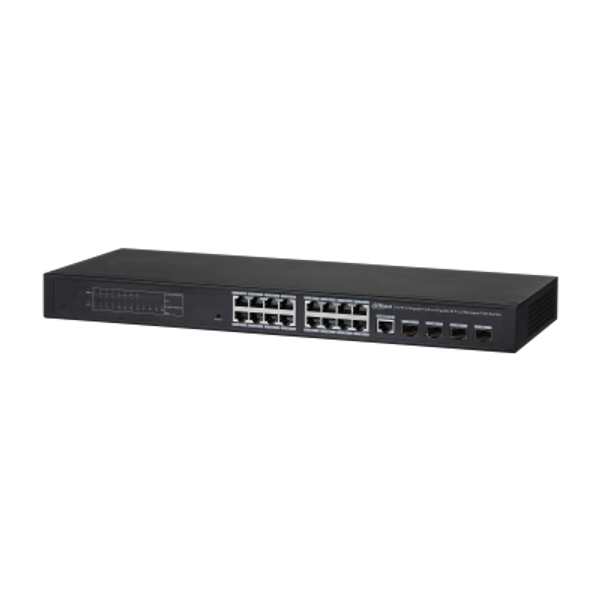

DH-PFS4420-16GT-240 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Port |
16*10/100/1000 Base-T (PoE power supply) 4*1000 Base-X |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Power Consumption |
Port1-16 ≤30W, Total≤240W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Protocol |
IEEE802.3af, IEEE802.3at |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switching Capacity |
40Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Forwarding Rate |
29.76Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Buffer Memory |
4.1Mb |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Application Humidity |
10%~90% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
AC100-240V, 50/60Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lightning Protection |
Common Mode 2KV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Temperature |
0°C~45°C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
2.69kg |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension(W×D×H) |
440mm x330mm x44mm |
Accessories |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PFT3950 |
1.25G 850nm,500m,LC, Multi-mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PFT3960 |
1.25G 1310/1550nm,20km,LC, Single-mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PFT3970 |
1.25G 1550/1310nm,20km,LC, Single-mode |
Service Characteristics |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
Username / password: admin/admin123 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Address :192.168.1.110/24 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Budget |
Total≤240W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC Table |
8K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SNTP |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DHCP |
Support DHCP client/Relay |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Support DHCP snooping |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VLAN |
802.1Q Standard VLAN |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port Aggregation |
Manual aggregation/LACP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirroring |
Many-to-one port mirroring |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flow Control |
Half-duplex based on back pressure type control; Full duplex based on PAUSE frame |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multicast |
IGMP Snooping v2/v3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security Features |
Broadcast / Uncast / Multicast Storm Control, IEEE 802.1x, DHCP Snooping(IP, MAC, Port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spanning tree |
Support STP/RSTP/MSTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LLDP |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC Table |
Support MAC address table configuration |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QoS |
WRR (Weighted Round Robin) Port based QoS IEEE 802.1p Class of Service DSCP-based QoS QoS basic mode QoS advanced mode (Policy based) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System Maintenance |
Support the configuration file upload/download Support the updated packet upload System log |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Management |
WEB, Telnet, SSH, SNMP |
