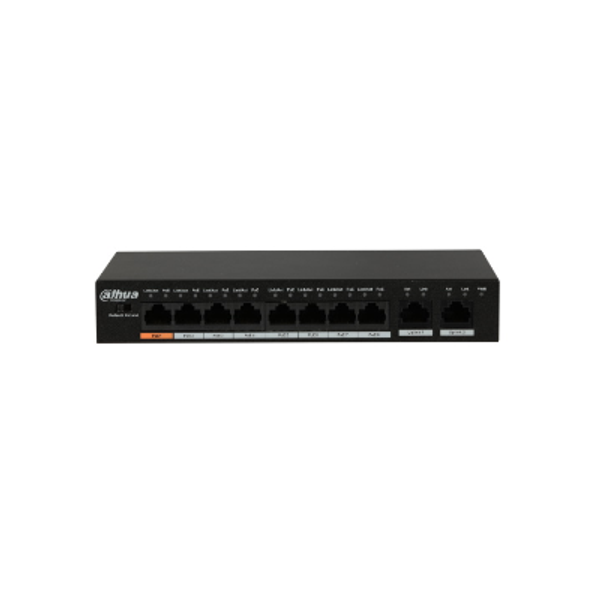

Dahua Switch 8 Port PoE 96 watt

Loading
  • Dahua Switch 8 Port PoE 96 watt
  • Dahua Switch 8 Port PoE 96 watt
In Stock

  • Layer two commercial switch
  • Supports PoE power management
  • Supports wall-mount installation
  • Supports anti-theft lock hole
  • MAC auto learning and aging, MAC address capacity is 16K
  • Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
  • RJ45 port supports 10/100 Mbps self-adaptation
  • Supports 250 meters long distance PoE transmission
  • Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply

PFS3010-8ET-96 is an 8-port fast ethernet switch, which supports 250 meters long distance PoE transmission. It provides 8*10/100Mbps PoE ports and 2*10/100/1000Mbps uplink ports. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.

Technical Specification
Model PFS3010-8ET-96
Ethernet Port 8*10/100Mbps PoE ports
2*10/100/1000Mbps ports
PoE Power Consumption Port1≤60W, Port2-8≤30W, Total≤96W
PoE PIN Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Power Management Support
PoE Protocol IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity 5.6Gbps
Packet Forwarding Rate 4.17Mpps
Packet Buffer Memory 4Mb
MAC Table Size 16K
Flow Control Enable by default
Application Humidity 5%~95%
Power DC 48~57V power adapter
Lightning Protection Common Mode 2KV
Differential Mode 1KV
ESD Protection Air Discharge 8KV
Contact Discharge 6KV
Working Temperature -10°C~55°C
Weight 490g
Dimension(W×D×H) 190mm×100mm×30mm

Datasheets
Dahua Switch 8 Port PoE 96 watt - Datasheet
Product Manuals
Dahua Switch 8 Port PoE 96 watt - Product Manual

Brand: Dahua | Code: PFS30108ET96
APN: 6939554904707 | Supplier Code: PFS30108ET96

Brand: Dahua | Code: PFS30108ET96
APN: 6939554904707 | Supplier Code: PFS30108ET96

At a glance

  • Layer two commercial switch
  • Supports PoE power management
  • Supports wall-mount installation
  • Supports anti-theft lock hole
  • MAC auto learning and aging, MAC address capacity is 16K
  • Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
  • RJ45 port supports 10/100 Mbps self-adaptation
  • Supports 250 meters long distance PoE transmission
  • Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply
