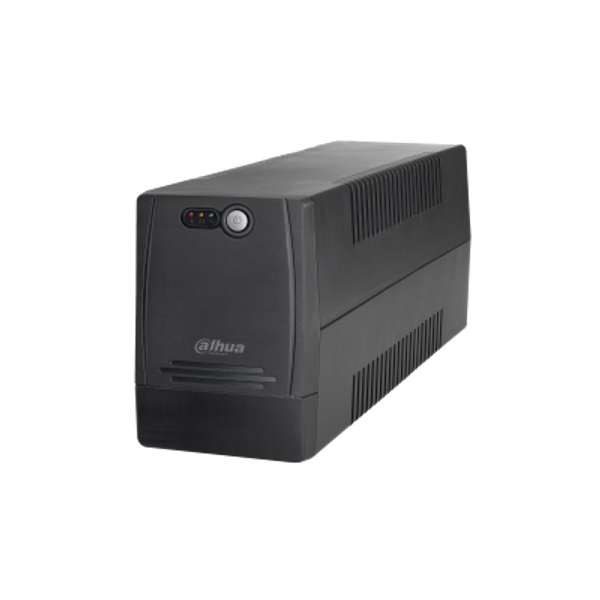

Dahua UPS 600VA 360W Line Interactive

Dahua UPS 600VA 360W Line Interactive

IN STOCK
10-14 DAYS
PRODUCT ENQUIRY

600VA/360W Line-interactive UPS

  • Wide input voltage range: AC81~145V or AC140~290V, meet the requirements in different parts for electric network fluctuation.
  • Boost and buck AVR for voltage stabilization.
  • Off-mode charging, cold start function and full protection.
  • Continuous power supply for preventing data loss.
  • Compact size.
Brand: Dahua   |    Code: PFM350-360
APN: 9319499199265   |    Supplier Code:
Model DH-PFM350-360
Plug type European British Australian Indian North American
Capacity 600VA/360W
Input
Rated voltage 220Vac~240Vac 110Vac~120Vac
Voltage range 140Vac~290Vac 81Vac~145Vac
Rated frequency range 50Hz or 60Hz
Power factor 0.6
Output
Voltage 220/230/240 VAC 110/120 VAC
AC Voltage Regulation (Batt. Mode) ±10%
Frequency Range (Batt. Mode) 50Hz or 60Hz ±1Hz
Transfer Time 2-6ms
Waveform (Batt. Mode) Simulated sinewave
Battery
Battery type & number 12 V/7 Ah x 1
Typical recharge time 4 hours recover to 90% capacity
Charging voltage 13.7V±1%
Indicators
Battery mode Green lighting
AC mode Green lighting
Alarm
Battery mode Sounding every 10 seconds
Low battery Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding
Protection
Full protection Overload, discharge and overcharge protection
Environmental
Operating temperature 0°C ~ +40°C (+32°F ~ +104°F)
Operating humidity 0~90% RH(non-condensing)
Altitude range <1000m(3280.84ft)
Construction
Color Black
Noise level <40dB
Dimensions 279mmx101mmx142mm(10.98"x3.98"x5.59")
Weight 4.25kg(9.37lb)
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

SPECIFICATIONS

Model DH-PFM350-360
Plug type European British Australian Indian North American
Capacity 600VA/360W
Input
Rated voltage 220Vac~240Vac 110Vac~120Vac
Voltage range 140Vac~290Vac 81Vac~145Vac
Rated frequency range 50Hz or 60Hz
Power factor 0.6
Output
Voltage 220/230/240 VAC 110/120 VAC
AC Voltage Regulation (Batt. Mode) ±10%
Frequency Range (Batt. Mode) 50Hz or 60Hz ±1Hz
Transfer Time 2-6ms
Waveform (Batt. Mode) Simulated sinewave
Battery
Battery type & number 12 V/7 Ah x 1
Typical recharge time 4 hours recover to 90% capacity
Charging voltage 13.7V±1%
Indicators
Battery mode Green lighting
AC mode Green lighting
Alarm
Battery mode Sounding every 10 seconds
Low battery Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding
Protection
Full protection Overload, discharge and overcharge protection
Environmental
Operating temperature 0°C ~ +40°C (+32°F ~ +104°F)
Operating humidity 0~90% RH(non-condensing)
Altitude range <1000m(3280.84ft)
Construction
Color Black
Noise level <40dB
Dimensions 279mmx101mmx142mm(10.98"x3.98"x5.59")
Weight 4.25kg(9.37lb)
