Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model |

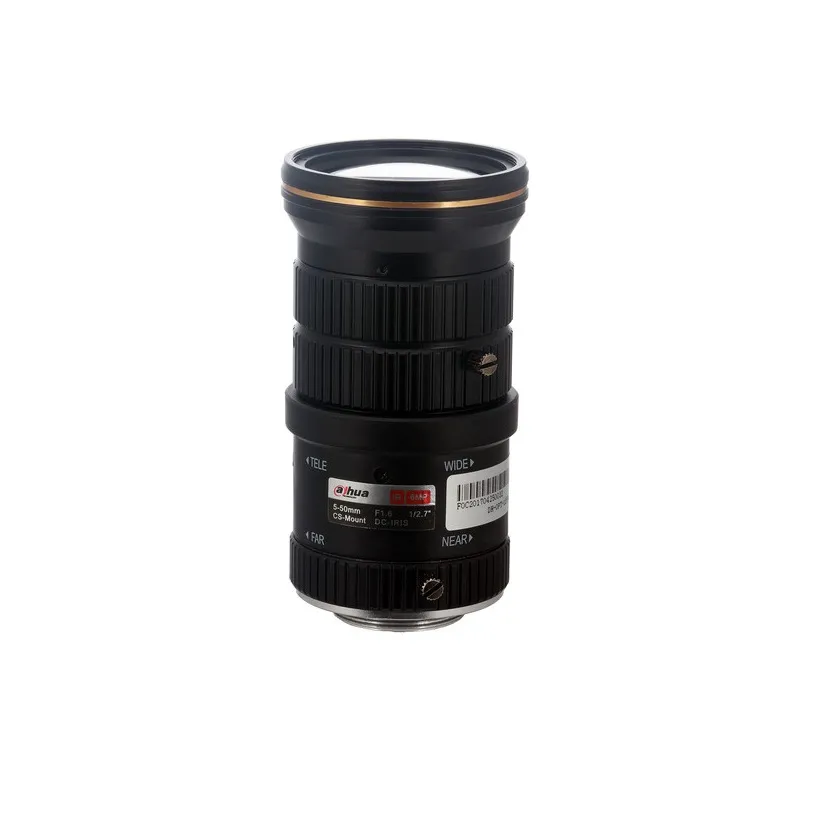

PFL0550-E6D |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Prameter |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Format |
1/2.7” |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
5-50mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Pixel |
6MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Aperture |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount |
CS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field Angle (D*H*V) |
1/2.7” |
W: 65.7°(D)x49.6°(H)x36.9°(V)~T: 5.2°(D)x7°(H)x5.2°(V) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1/2.9”(3:2) |
W: 58.1°(D)x47°(H)x33.2°(V)~T: 8.1°(D)x6.6°(H)x4.7°(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1/4’’ |
W: 42°(D)x33°(H)x25°(V)~T: 5.9°(D)x4.7°(H)x3.6°(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Control |
Focus |
Manual |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Zoom |
Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris |
DC-iris |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Correction |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
M.O.D. |
0.5m (1.64ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension |
ɸ44mmx85.7mm (ɸ1.73”x3.37”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
0.2kg (0.44lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-30℃~+70℃ (-22℉~+158℉) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Humidity |
<90% RH |
