PDMOVIE LIVE PRO Triple Channel Wired Follow Focus Lens Control System
The PDMovie Live Pro is a high-performance wired follow focus system designed specifically for professional television studio and live broadcast environments. This versatile triple-channel system combines single-channel and dual-channel controllers with powerful brushless motors to provide precise, simultaneous control over focus, zoom, and iris.
Key Features
- Triple-channel control allows simultaneous, precise adjustment of focus, zoom, and iris.
- The single-channel controller features a 57mm handwheel with 7200-level resolution and an AB point lens stroke limit.
- The dual-channel controller features a smooth zoom rocker and a control wheel, easily mounting to tripod handles from 15mm to 30mm.
- Equipped with a powerful, fast, and lightweight brushless motor that delivers up to 0.8 Nm of torque with near-zero delay.
- Aviation-grade self-locking six-pin connector combines power and signal into a single durable cable for stable data transmission.
- Includes a luminous fluorescent marker ring to easily tag lens data in low-light environments.
- Supports both standard cinema lenses and DSLR camera lenses, accommodating varying levels of dampening and stroke lengths.
- Offers 2D and 3D synchronous follow focus capability by running two motors on a single channel.
With its robust construction and highly responsive control, this system provides a reliable lens control solution in even the most demanding production environments. Whether mounted on a tripod, gimbal, or shoulder rig, it delivers the seamless operation required by professional cinematographers and broadcasters.

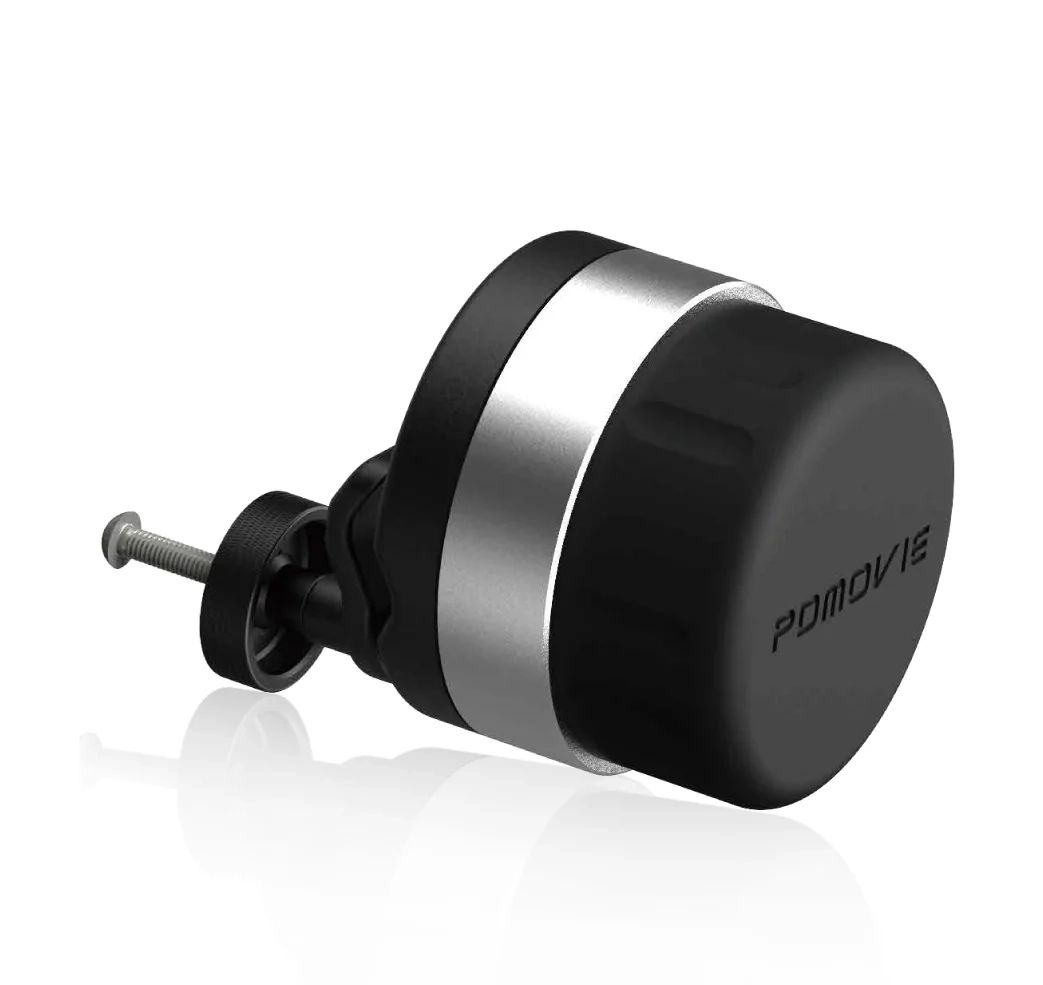

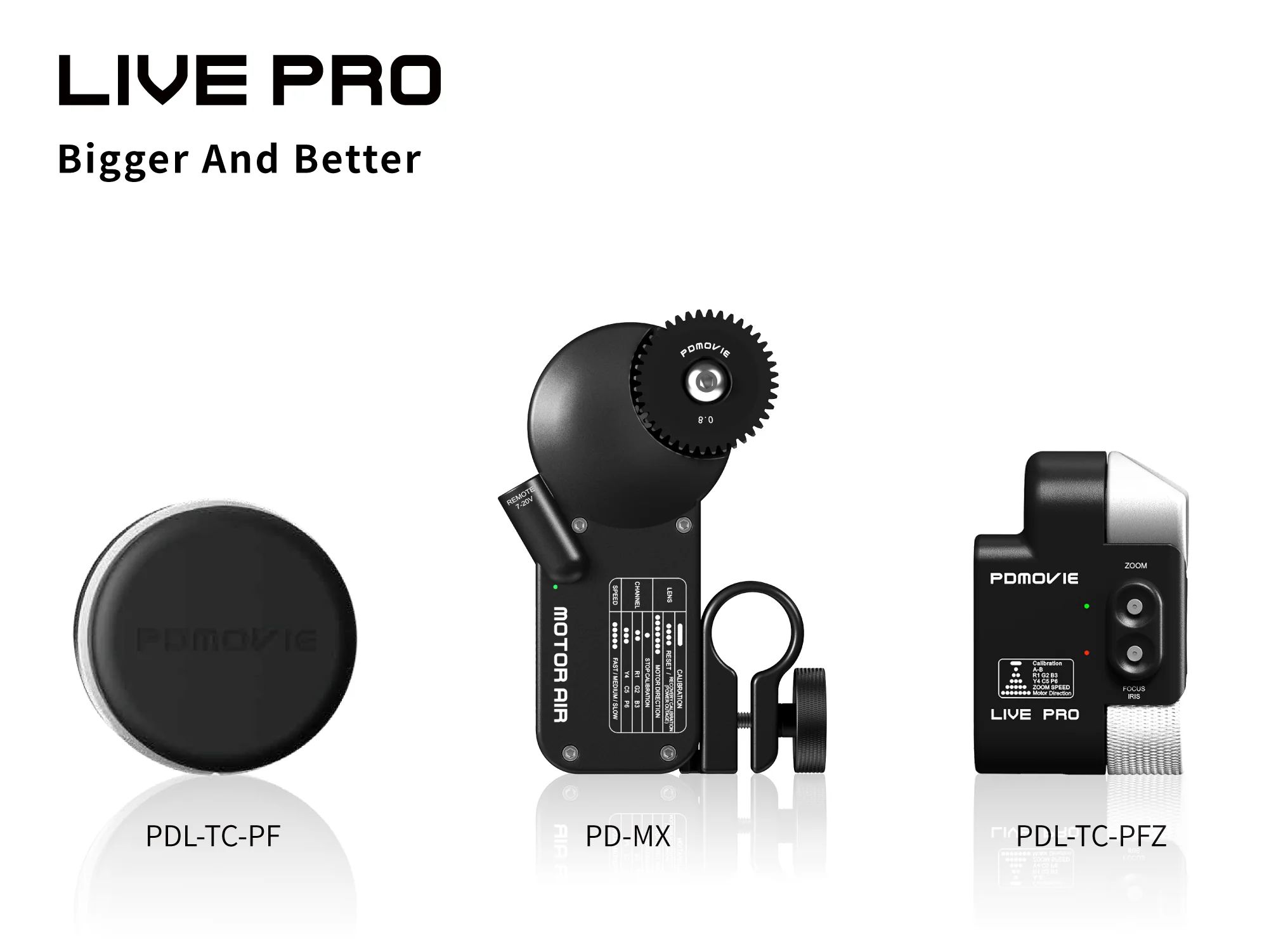

PDL-TC-PF
Single channel controller
57mm hand-wheel control
AB point lens stroke limit
Suitable collocation for control the focus which is the gimbal, tripod and other equipment

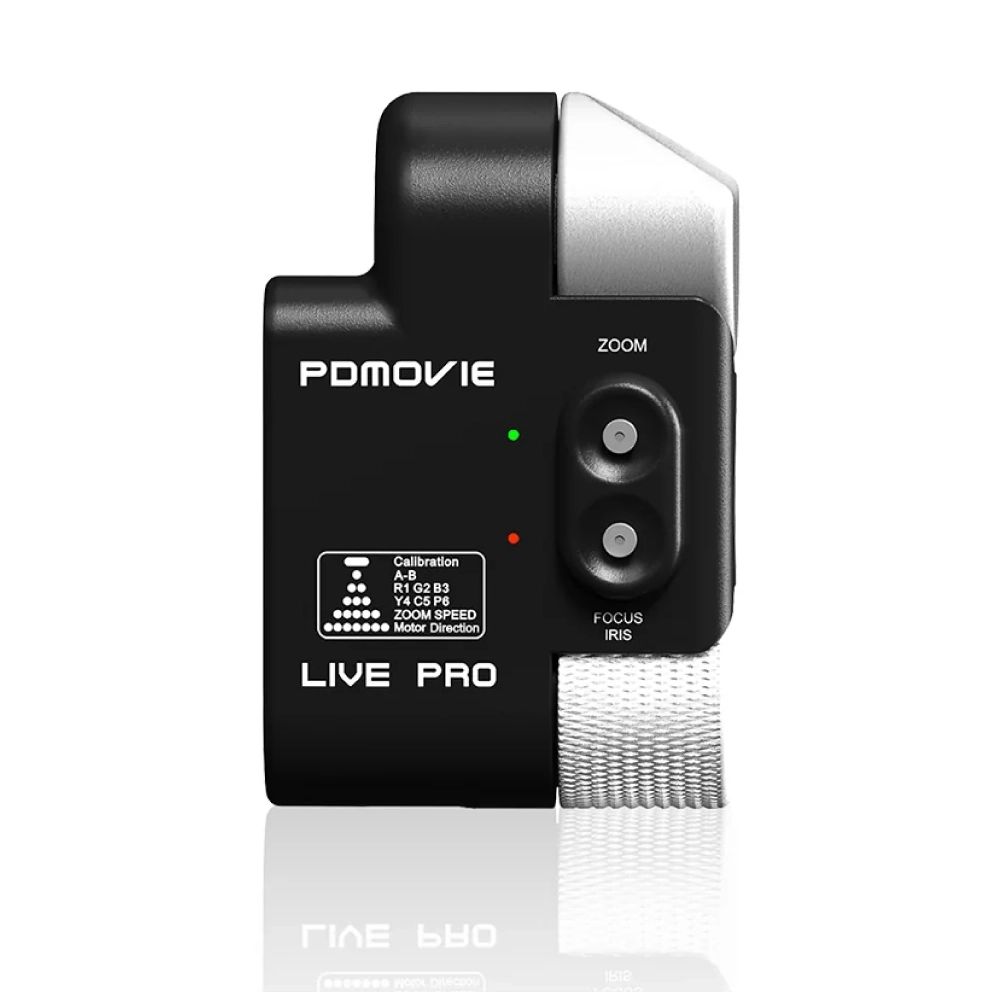

PDL-TC-PFZ
Double channel controller
Traditional TV broadcast equipment
AB point lens stroke limit
Suitable collocation for control the focus, zoomand iris which is the gimbal, tripod and other equipment

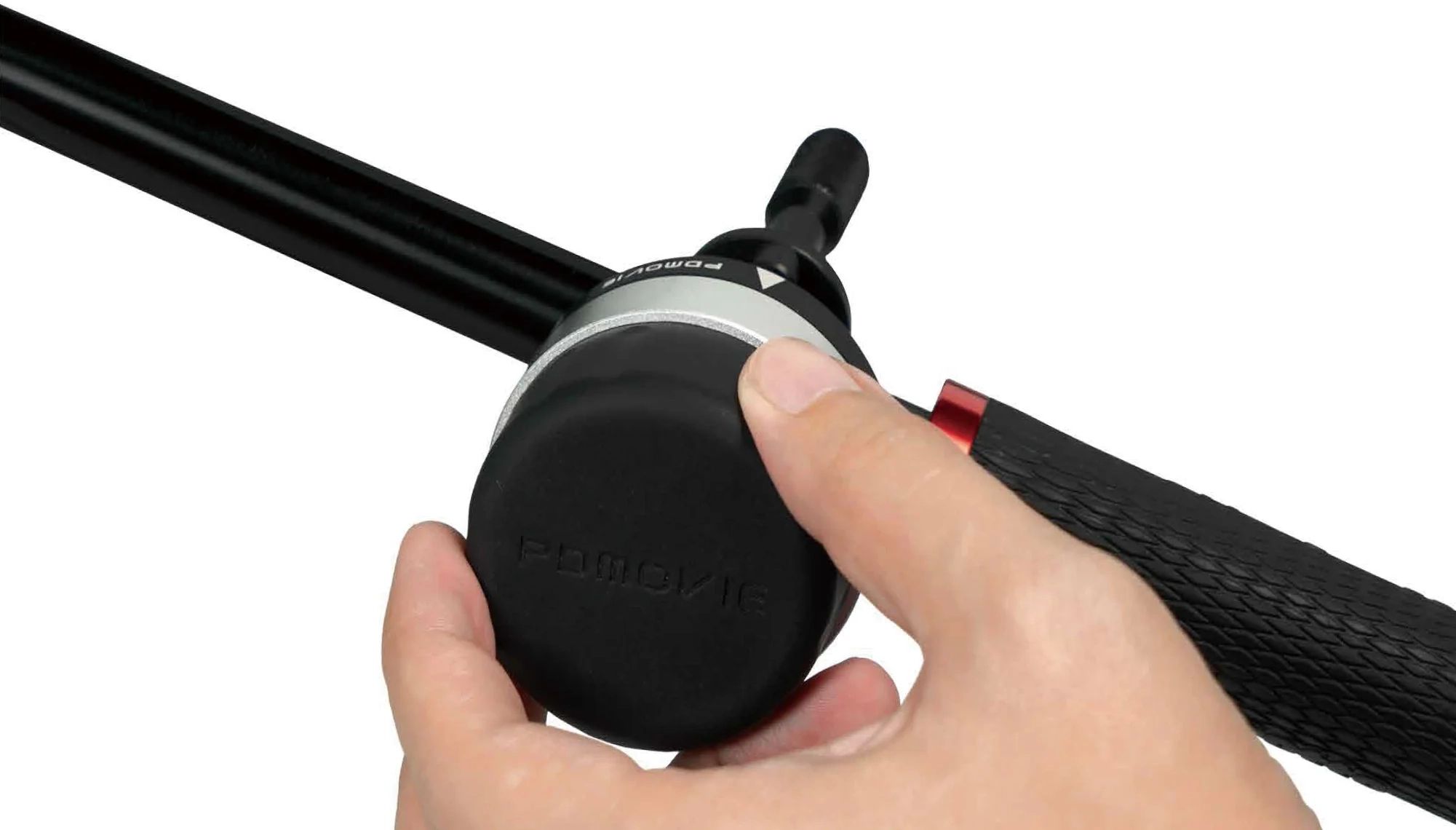

FOCUS
The PDL-TC-PF single channel controller has a control handwheel with a diameter of 57mm. Its damped feel and positioning system is accurate to 7200-level resolution, giving you easy focus control.

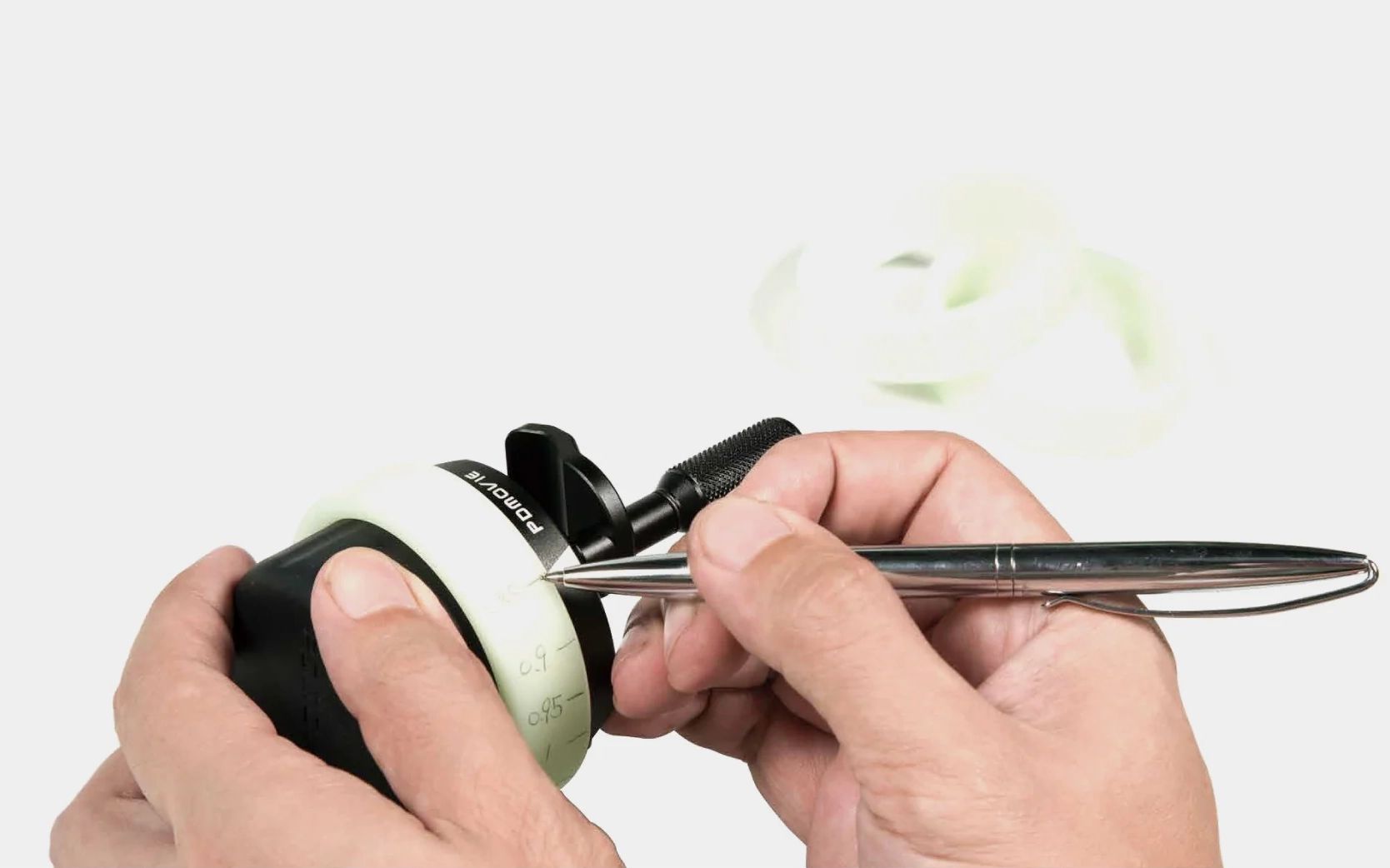

Luminous Marker Ring
Live Pro comes with a fluorescence marker ring, it can easily tag lens data when used with a single-channel controller. The fluorescence marker ring can be clearly seen when used in environments with poor light conditions.

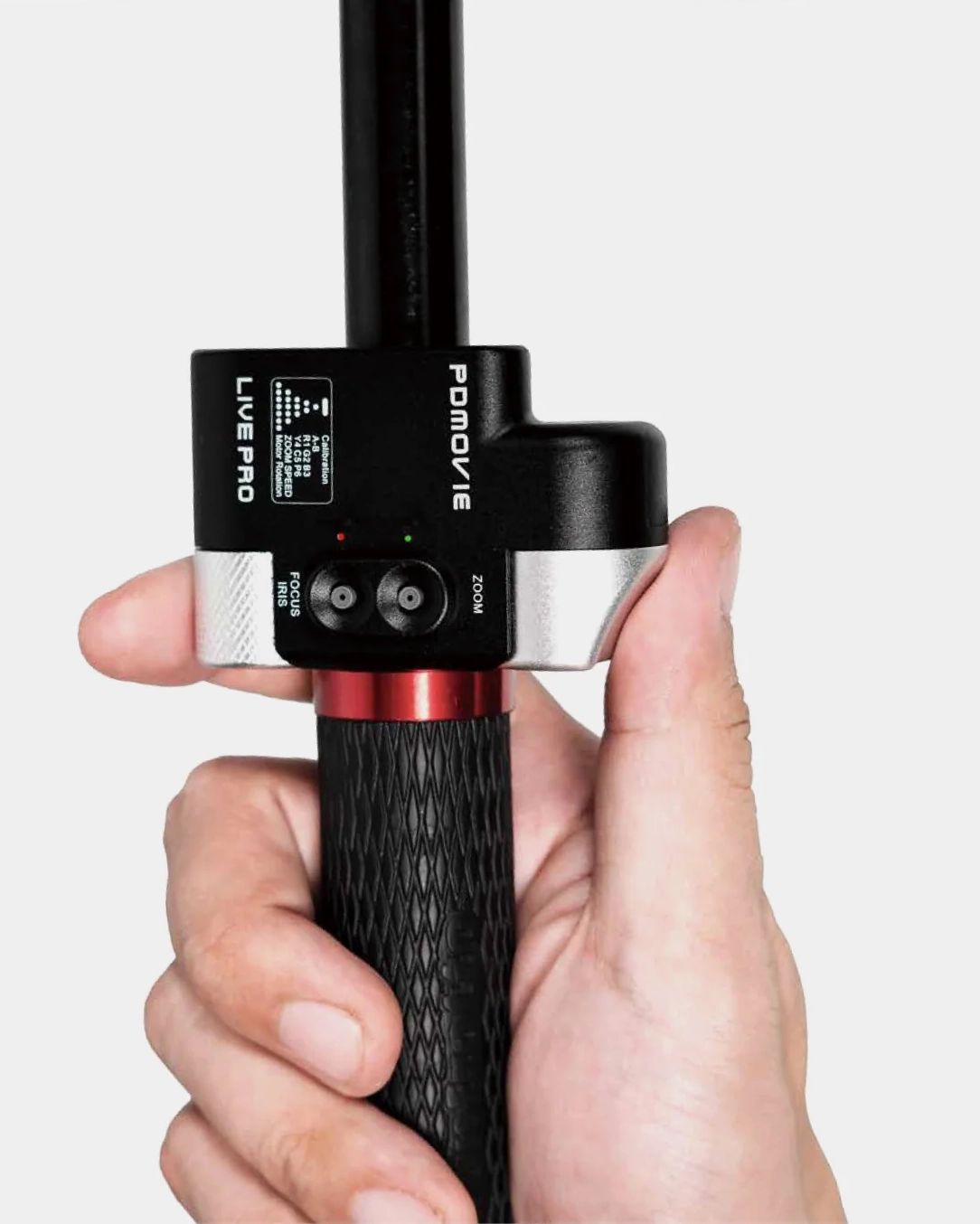

ZOOM, IRIS/FOCUS
PDL-TC - PFZ double channel controller has two control units which are rocker and wheel.The rocker control zoom is joules smoothly, and the wheel can be used to adjust confocal focus and iris simultaneously. In addition, it can quickly install on the diameter of 15mm-30mmtripod handle easilv.
Brushless Motor
LIVE PRO is equipped with a powerful, high-precision brushless motor, a powerful driving force, and smoothness, allowing it to quickly and smoothly control various large dampinglenses.
The Three Channels Can Be Controlled Simultaneously
Install the single channel controller PDL-TC-PF and the dual channel controller PDL-TC - PFZ on the tripod handle then let your hand control the FOCUS, ZOOM or IRIS. In addition, you can also individually install the single/double channel on a rocker arm or shoulder carrying equipment to control the FOCUS, ZOOM, and IRIS.

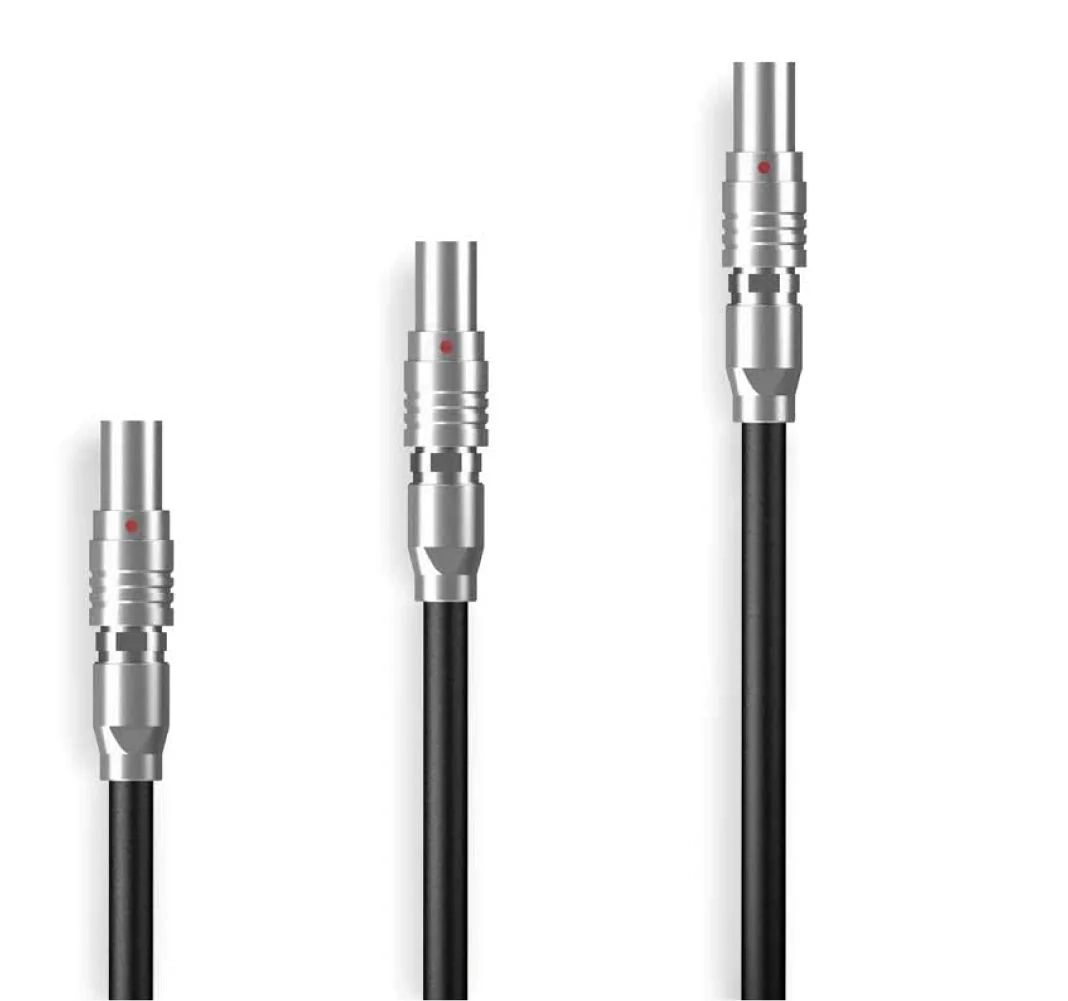

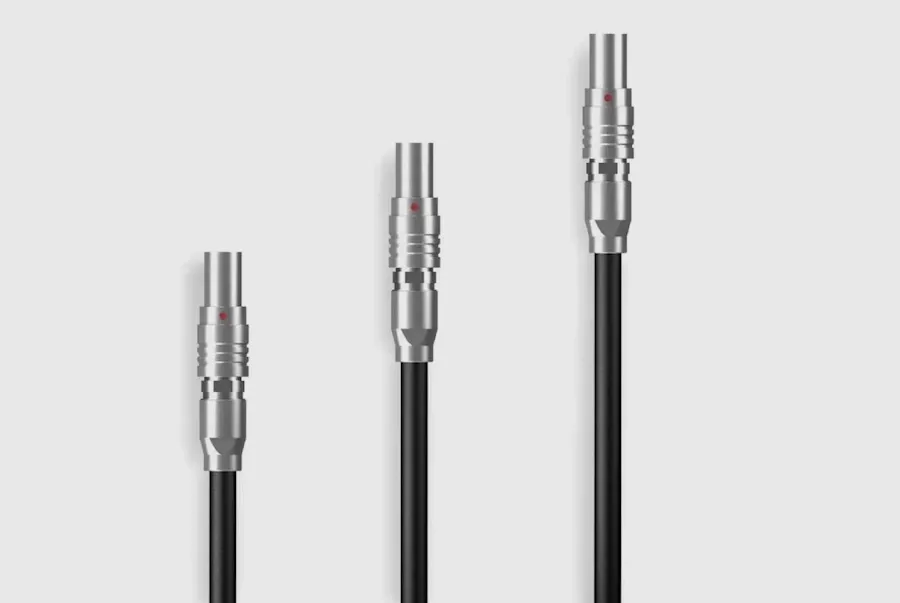

General And Stable Data Transmission
When the LIVE PRO is in some kind of harsh environment, such as severe shaking, severe cold and heat, long term wear and tear. The aviation self locking six pin plug provide its advantages : safe and reliable. it can keep the performance of the product in a stable state for long time. Also we combined the power supply with the signal, combining two different transmission lines directlv into one cable. That cable can get to work quickly and it super easy to use.

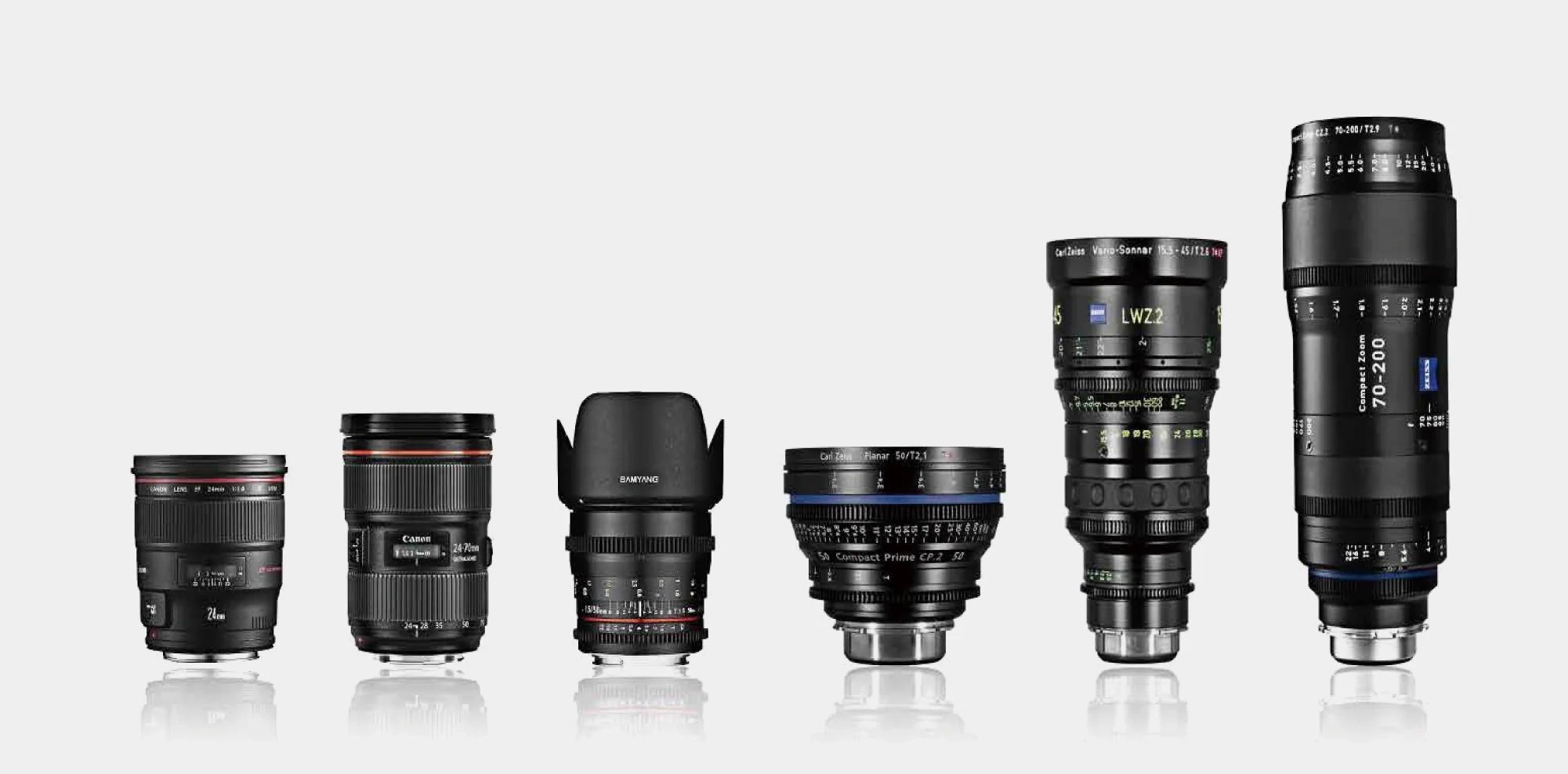

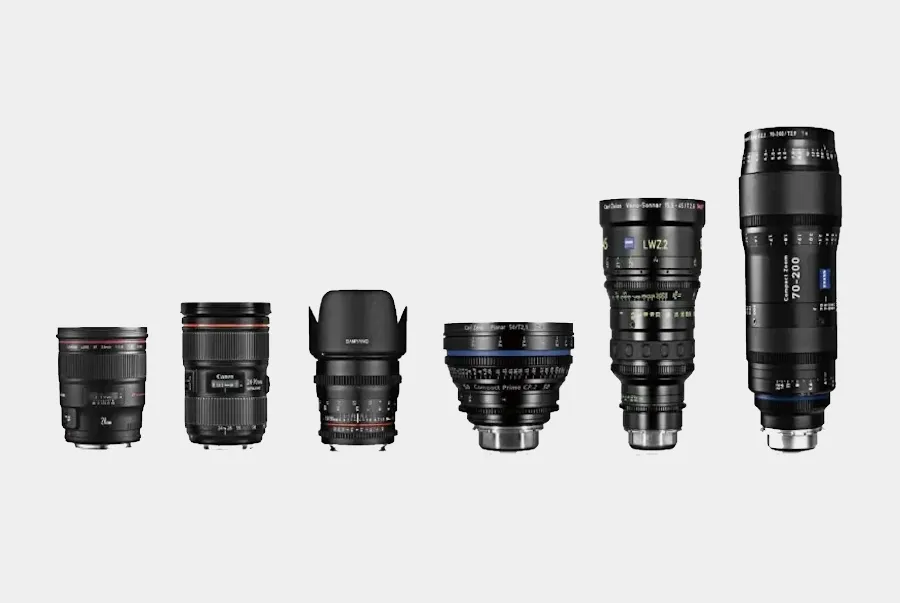

Film Lens And Camera Lens
LIVE PRO supports applications for various types of lenses. It can be controlled easily, whether it is a long stroke, large damped motion filming, zoom lens or a short stroke light damped camera lens.

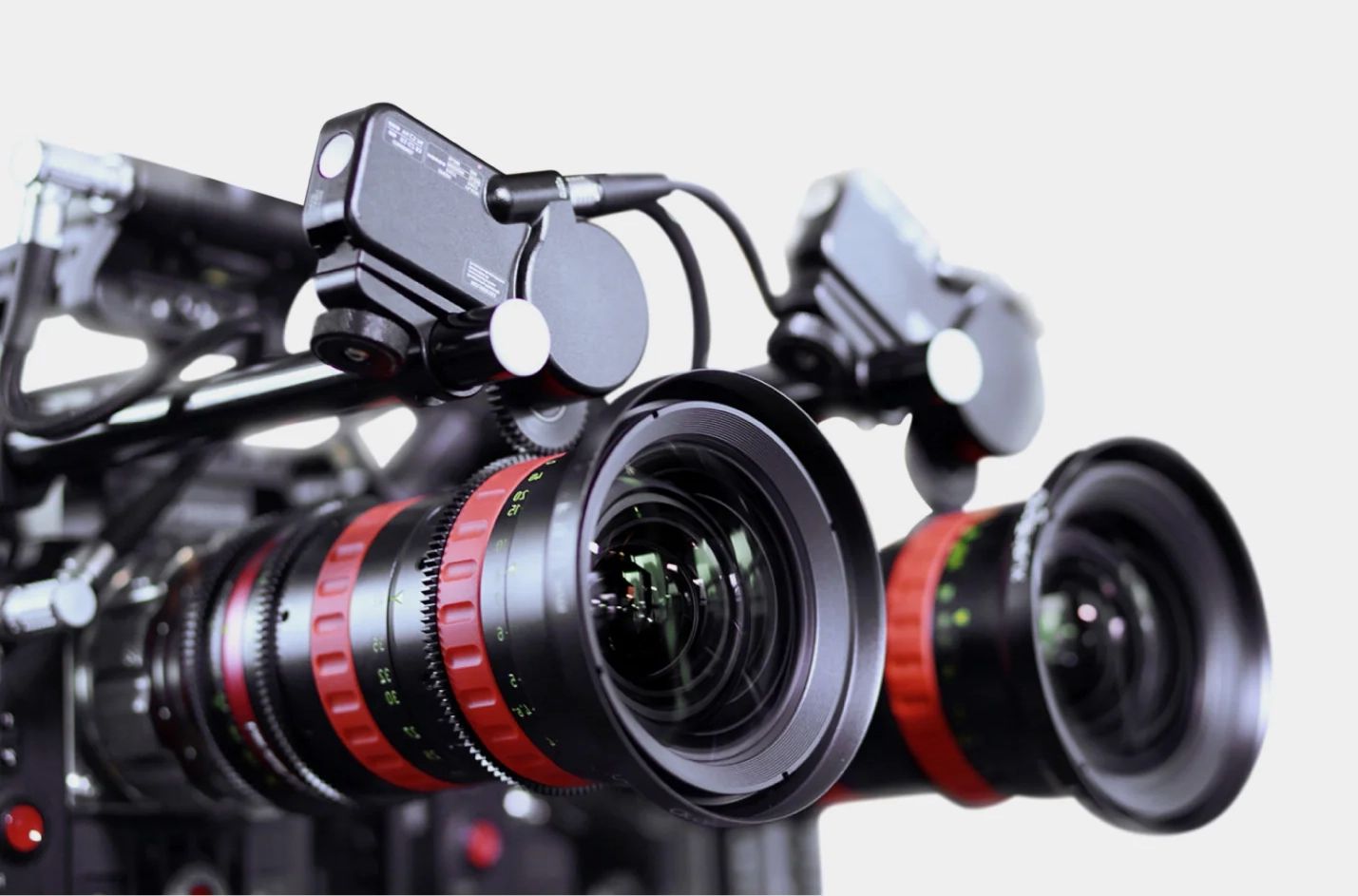

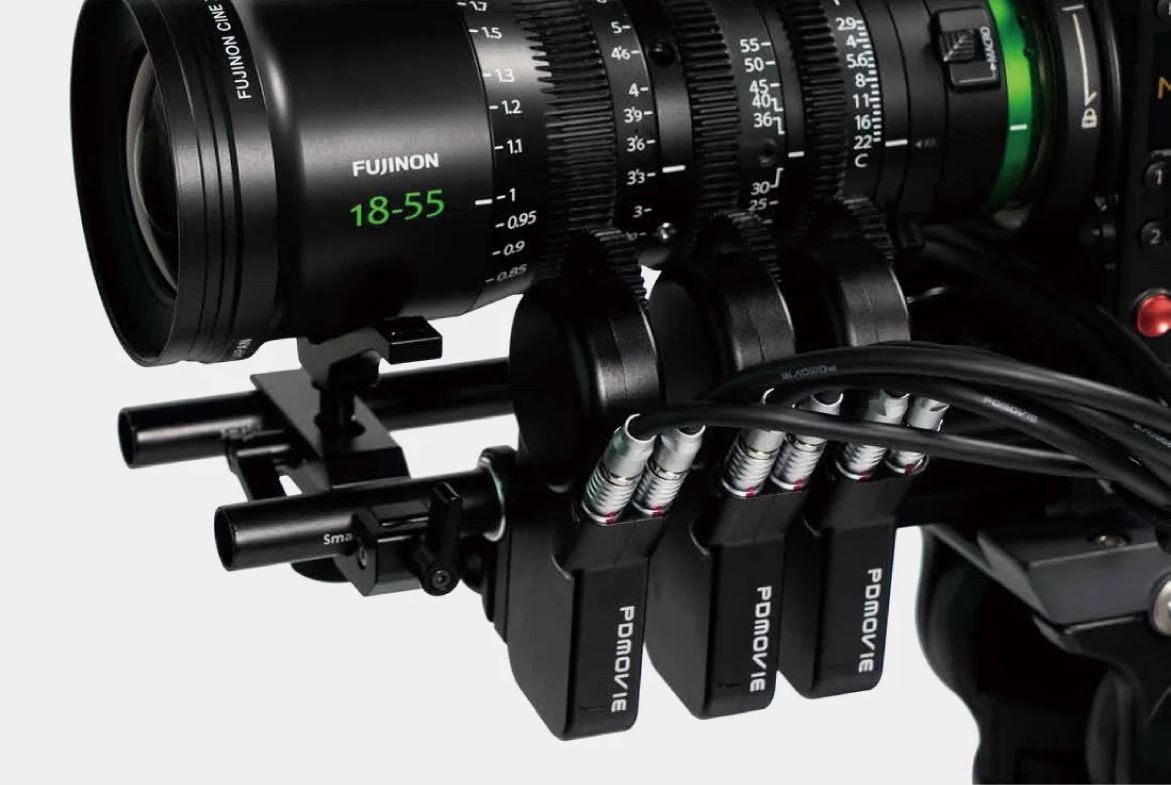

Simultaneous Application 2D And 3D
LIVE PRO, which not only controls each channel individually, it also switches two motors into the same channel. using as a 3D Synchronous follow focus.
| Product Manuals | |
|---|---|
| PDMOVIE LIVE PRO Triple Channel Wired Follow Focus Lens Control System - Product Manual |
Brand: PDMovie |
Code: PDL-PFZI
APN: 6976679540151 |
Brand: PDMovie |
Code: PDL-PFZI
APN: 6976679540151 |
At a glance
The PDMovie Live Pro is a high-performance wired follow focus system designed specifically for professional television studio and live broadcast environments. This versatile triple-channel system combines single-channel and dual-channel controllers with powerful brushless motors to provide precise, simultaneous control over focus, zoom, and iris.
Key Features
- Triple-channel control allows simultaneous, precise adjustment of focus, zoom, and iris.
- The single-channel controller features a 57mm handwheel with 7200-level resolution and an AB point lens stroke limit.
- The dual-channel controller features a smooth zoom rocker and a control wheel, easily mounting to tripod handles from 15mm to 30mm.
- Equipped with a powerful, fast, and lightweight brushless motor that delivers up to 0.8 Nm of torque with near-zero delay.
- Aviation-grade self-locking six-pin connector combines power and signal into a single durable cable for stable data transmission.
- Includes a luminous fluorescent marker ring to easily tag lens data in low-light environments.
- Supports both standard cinema lenses and DSLR camera lenses, accommodating varying levels of dampening and stroke lengths.
- Offers 2D and 3D synchronous follow focus capability by running two motors on a single channel.
With its robust construction and highly responsive control, this system provides a reliable lens control solution in even the most demanding production environments. Whether mounted on a tripod, gimbal, or shoulder rig, it delivers the seamless operation required by professional cinematographers and broadcasters.
Related Categories Camera Lens Accessories Cine Accessories
PDL-TC-PFSingle channel controller 57mm hand-wheel control AB point lens stroke limit Suitable collocation for control the focus which is the gimbal, tripod and other equipment |
|
|
PDL-TC-PFZDouble channel controller Traditional TV broadcast equipment AB point lens stroke limit Suitable collocation for control the focus, zoomand iris which is the gimbal, tripod and other equipment |
FOCUSThe PDL-TC-PF single channel controller has a control handwheel with a diameter of 57mm. Its damped feel and positioning system is accurate to 7200-level resolution, giving you easy focus control. |
|
|
Luminous Marker RingLive Pro comes with a fluorescence marker ring, it can easily tag lens data when used with a single-channel controller. The fluorescence marker ring can be clearly seen when used in environments with poor light conditions. |
ZOOM, IRIS/FOCUSPDL-TC - PFZ double channel controller has two control units which are rocker and wheel.The rocker control zoom is joules smoothly, and the wheel can be used to adjust confocal focus and iris simultaneously. In addition, it can quickly install on the diameter of 15mm-30mmtripod handle easilv. |
|
|
Brushless MotorLIVE PRO is equipped with a powerful, high-precision brushless motor, a powerful driving force, and smoothness, allowing it to quickly and smoothly control various large dampinglenses. |
The Three Channels Can Be Controlled SimultaneouslyInstall the single channel controller PDL-TC-PF and the dual channel controller PDL-TC - PFZ on the tripod handle then let your hand control the FOCUS, ZOOM or IRIS. In addition, you can also individually install the single/double channel on a rocker arm or shoulder carrying equipment to control the FOCUS, ZOOM, and IRIS. |
|
|
General And Stable Data TransmissionWhen the LIVE PRO is in some kind of harsh environment, such as severe shaking, severe cold and heat, long term wear and tear. The aviation self locking six pin plug provide its advantages : safe and reliable. it can keep the performance of the product in a stable state for long time. Also we combined the power supply with the signal, combining two different transmission lines directlv into one cable. That cable can get to work quickly and it super easy to use. |
Film Lens And Camera LensLIVE PRO supports applications for various types of lenses. It can be controlled easily, whether it is a long stroke, large damped motion filming, zoom lens or a short stroke light damped camera lens. |
|
|
Simultaneous Application 2D And 3DLIVE PRO, which not only controls each channel individually, it also switches two motors into the same channel. using as a 3D Synchronous follow focus. |
LIVE PRO is a wire follow focus system and developed for the television studio or live broadcast. The precise controller and the powerful motor enough to satisfy most of the professional users.

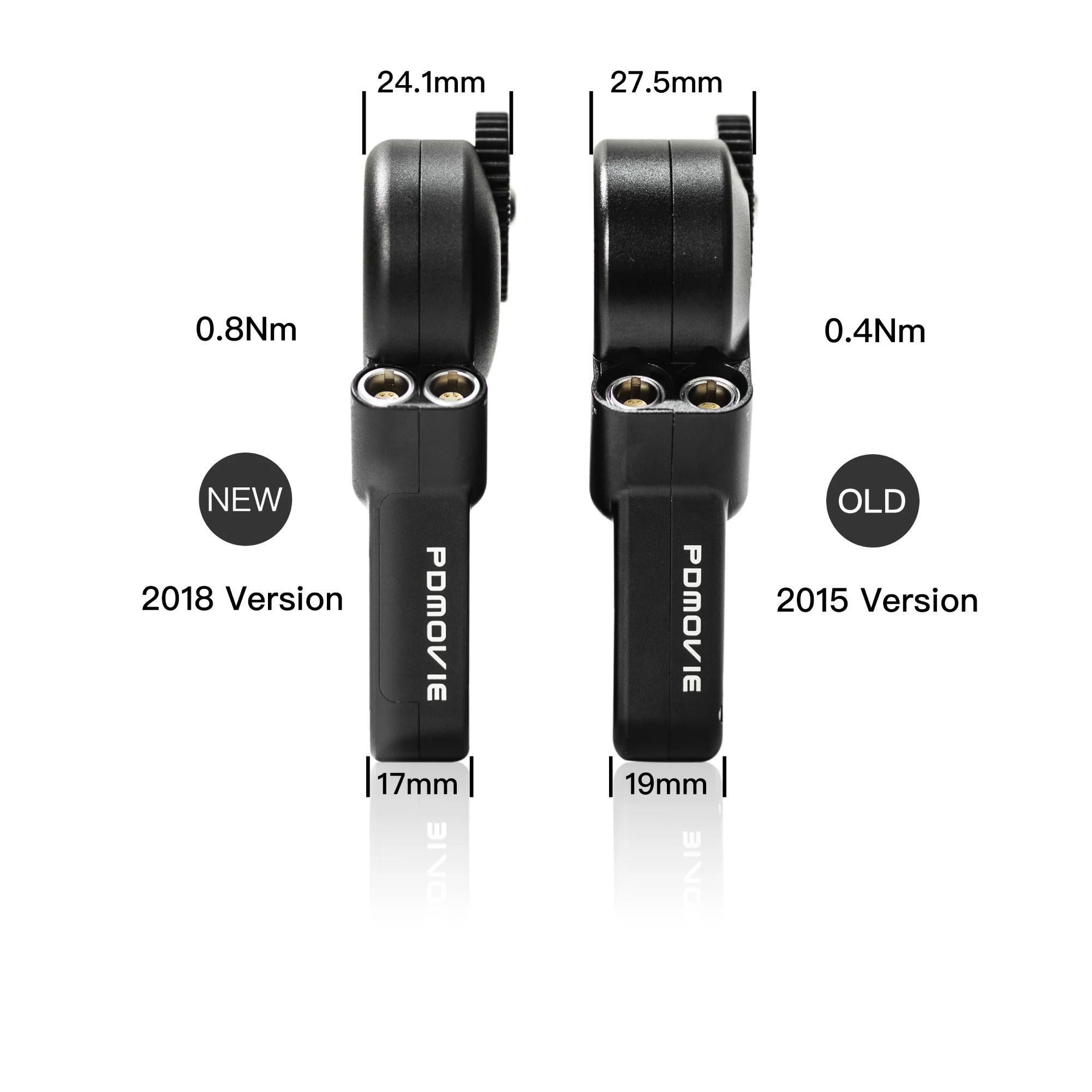

Original Foundation But Smaller

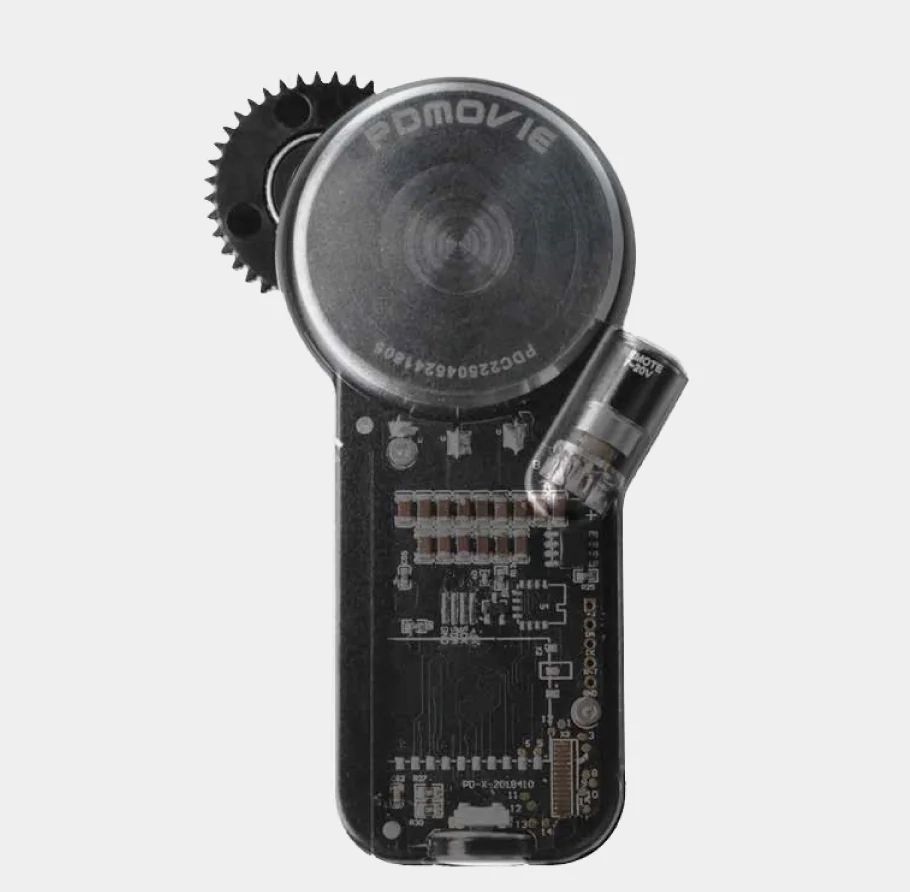

MOTOR AIR, the new member of the MOTOR, continues the previous simple design style. The fuselage is thinner, lighter, twice as fast and aerodynamic as the old one. The motor maximum instantaneous power is 0.8 Nm.,equivalent to 70 watts of electrical power. More responsive, almost no delays!
