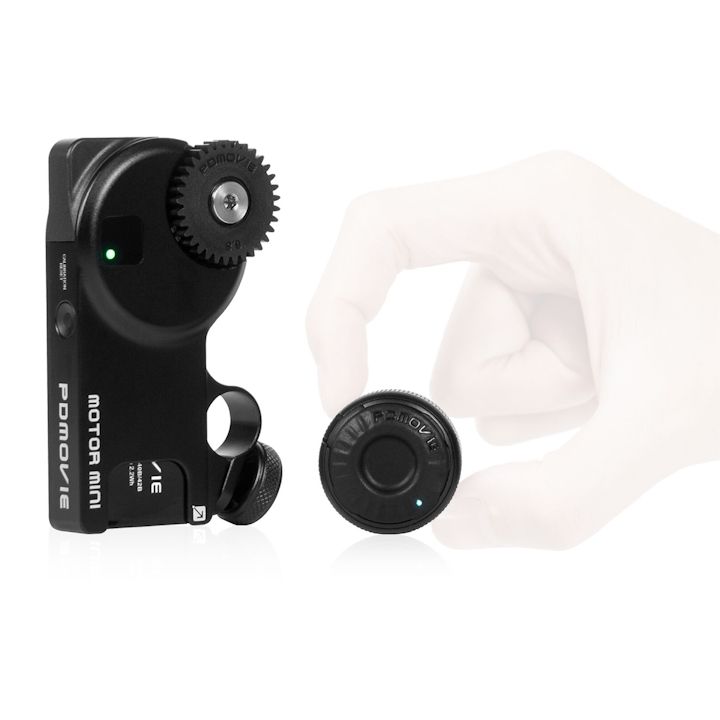

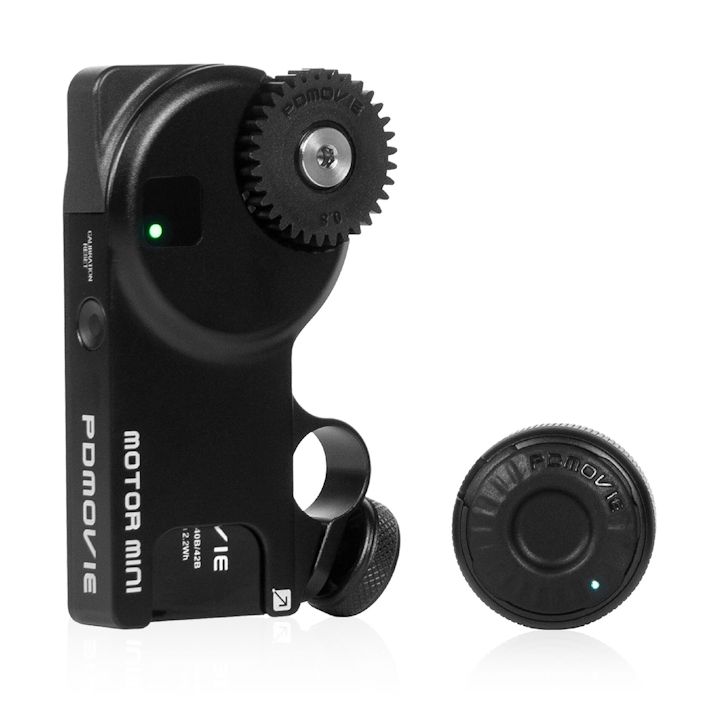

PDMOVIE LIVE AIR 3 Wireless Follow Focus Lens Control Kit
The details Determine The experience

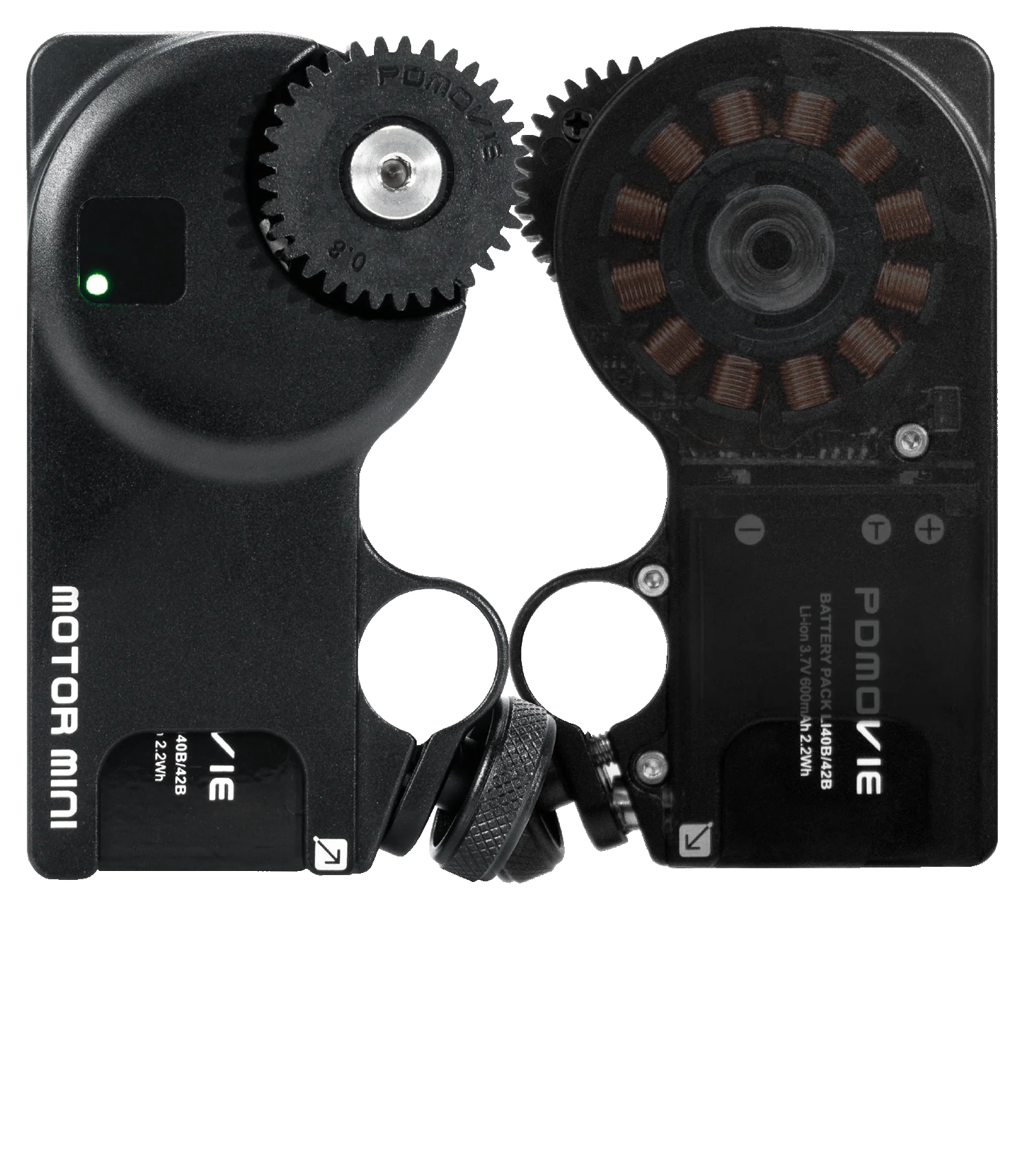

Integrating four modules of motor, receiving, driving and power supply
The volume of the module is 21cm², 20% of the total volume of the motor

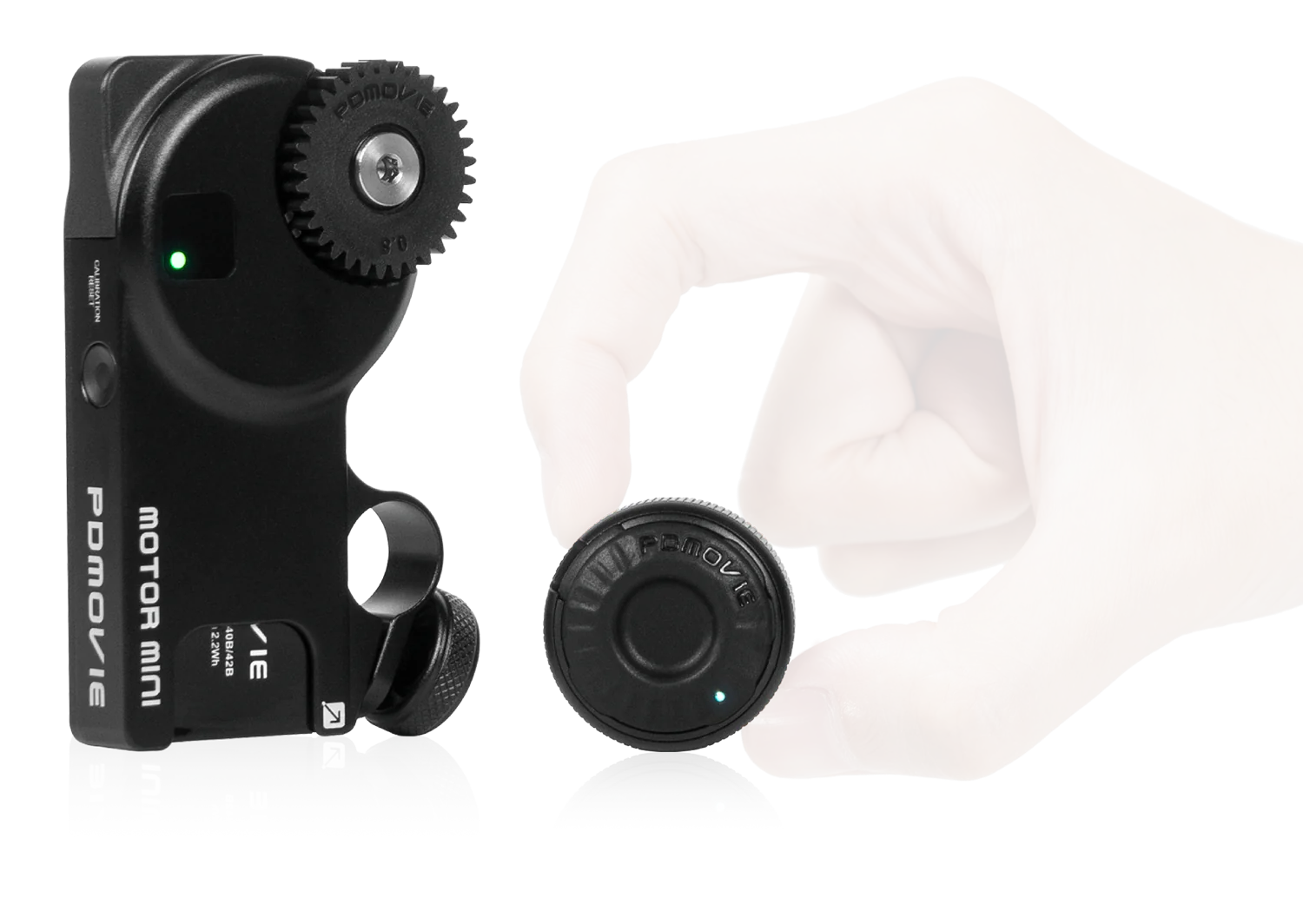

The details Determine The experience

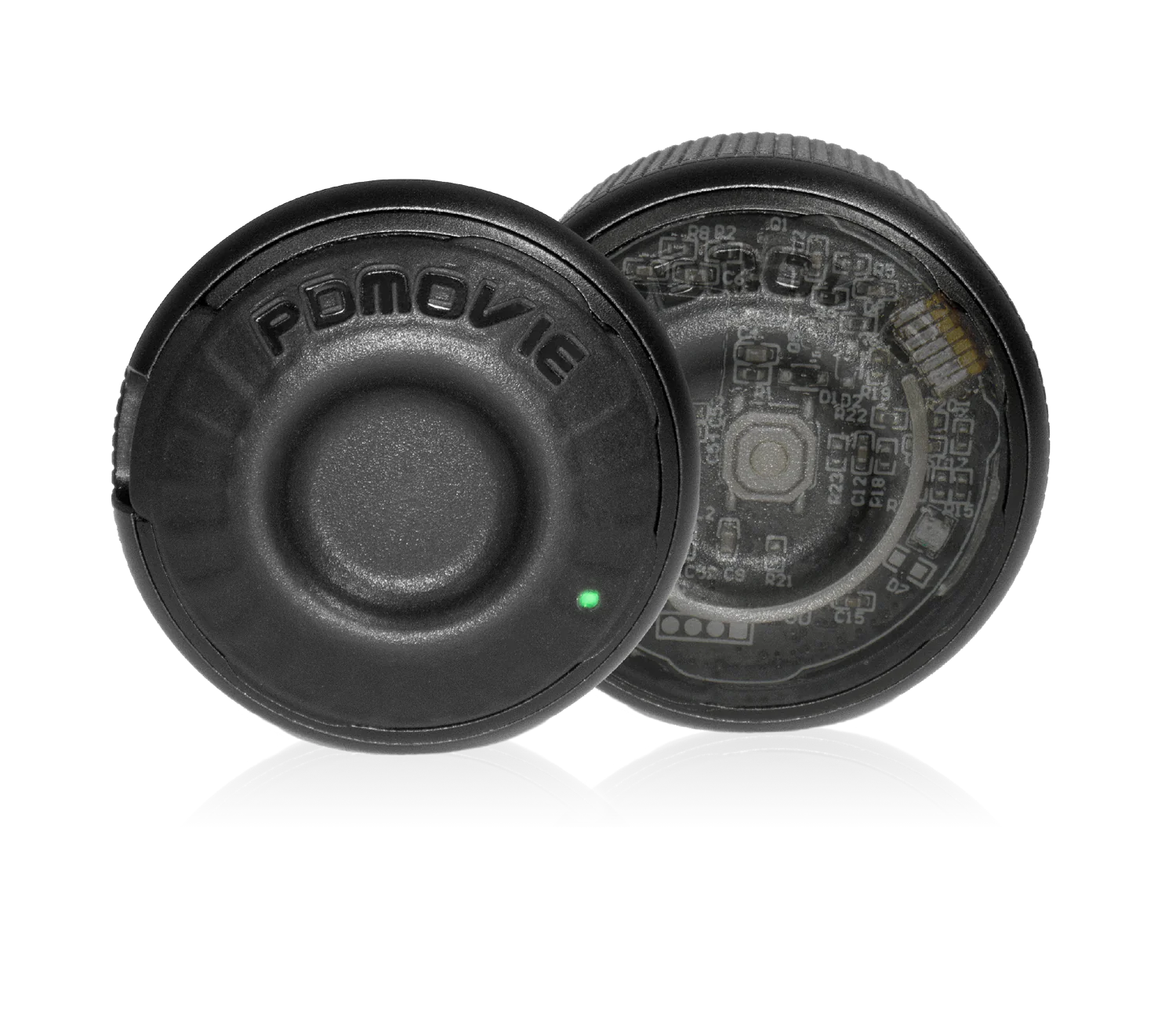

High precision integrated microchip
Combining signal processing and data transmission
The volume is only 31*31*30mm
Controller comes with 1/4 screw, As long as there are 1/4 screw holes, it can be installed.
Such as Installed on accessories
Controller comes with 1/4 screw, As long as there are 1/4 screw holes, it can be installed.

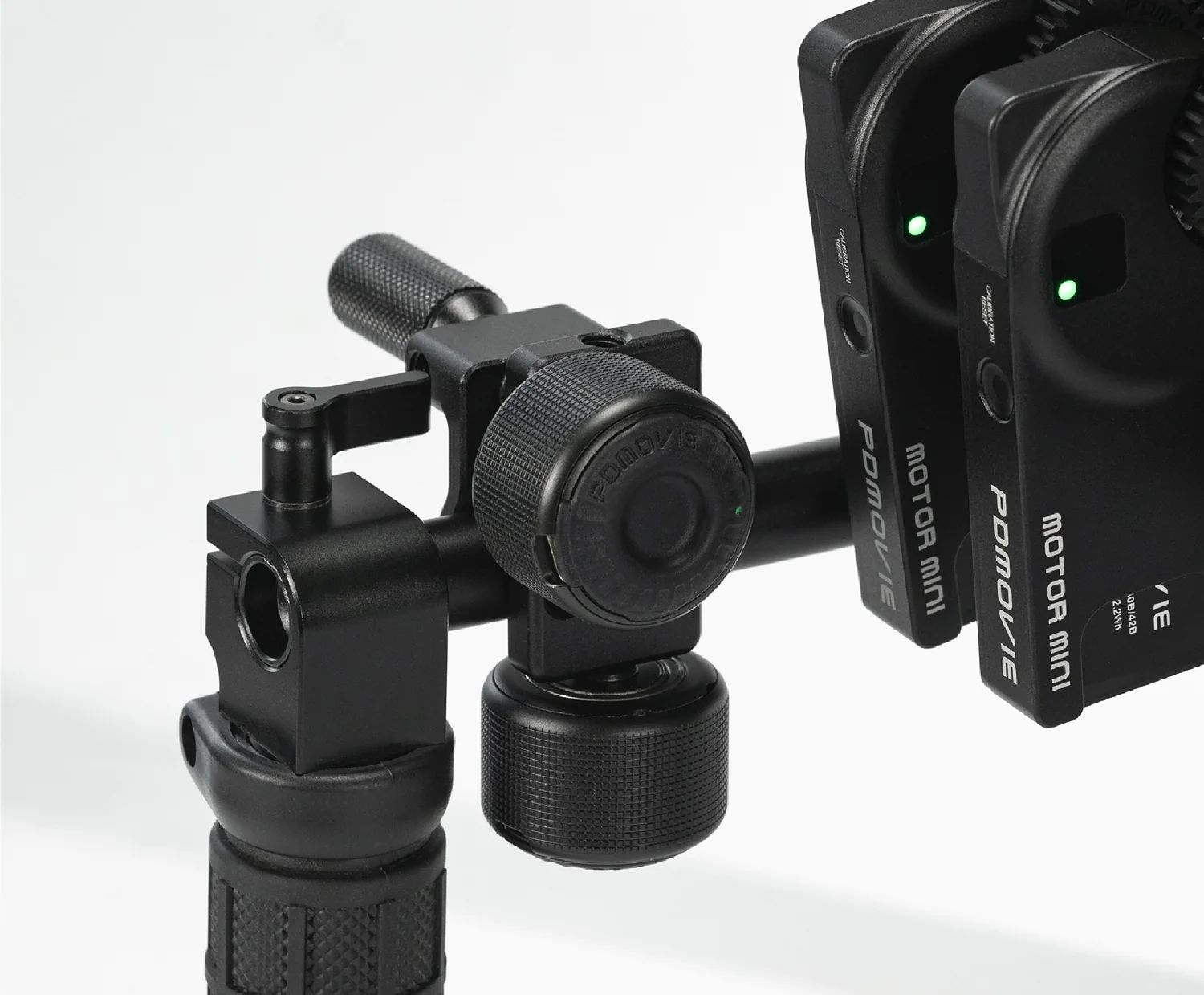

Such as Installed on the handle

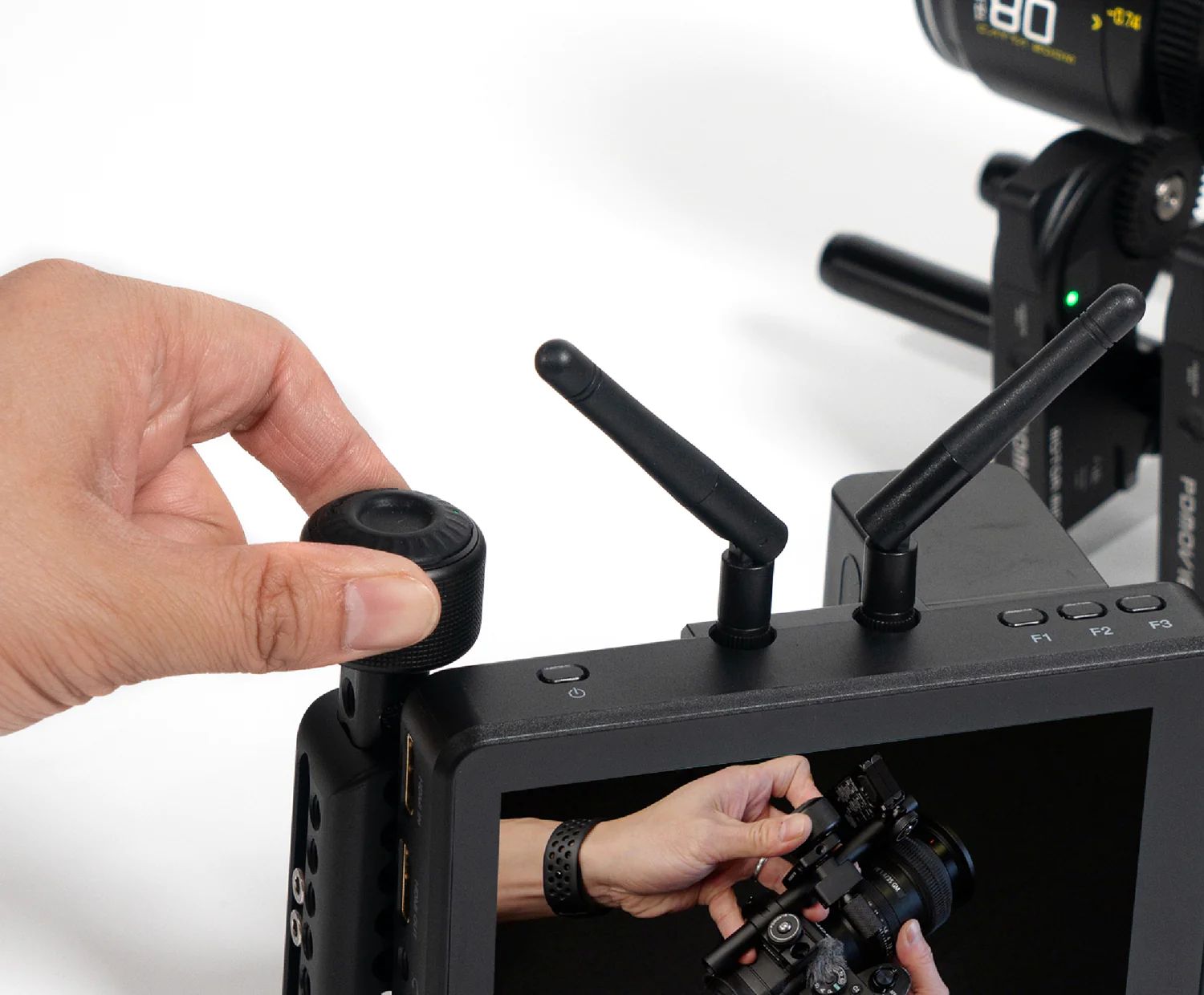

Controller comes with 1/4 screw, As long as there are 1/4 screw holes, it can be installed.
Such as Installed on the monitor

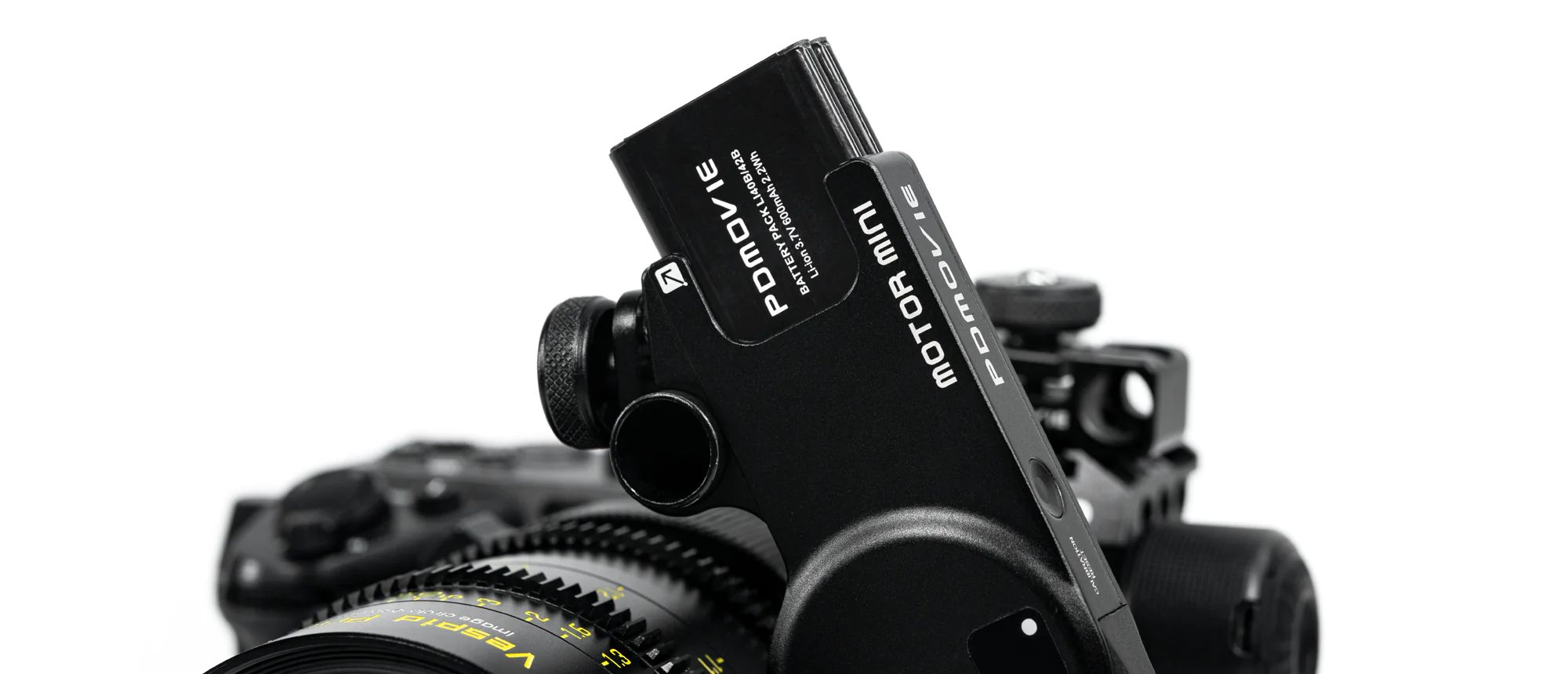

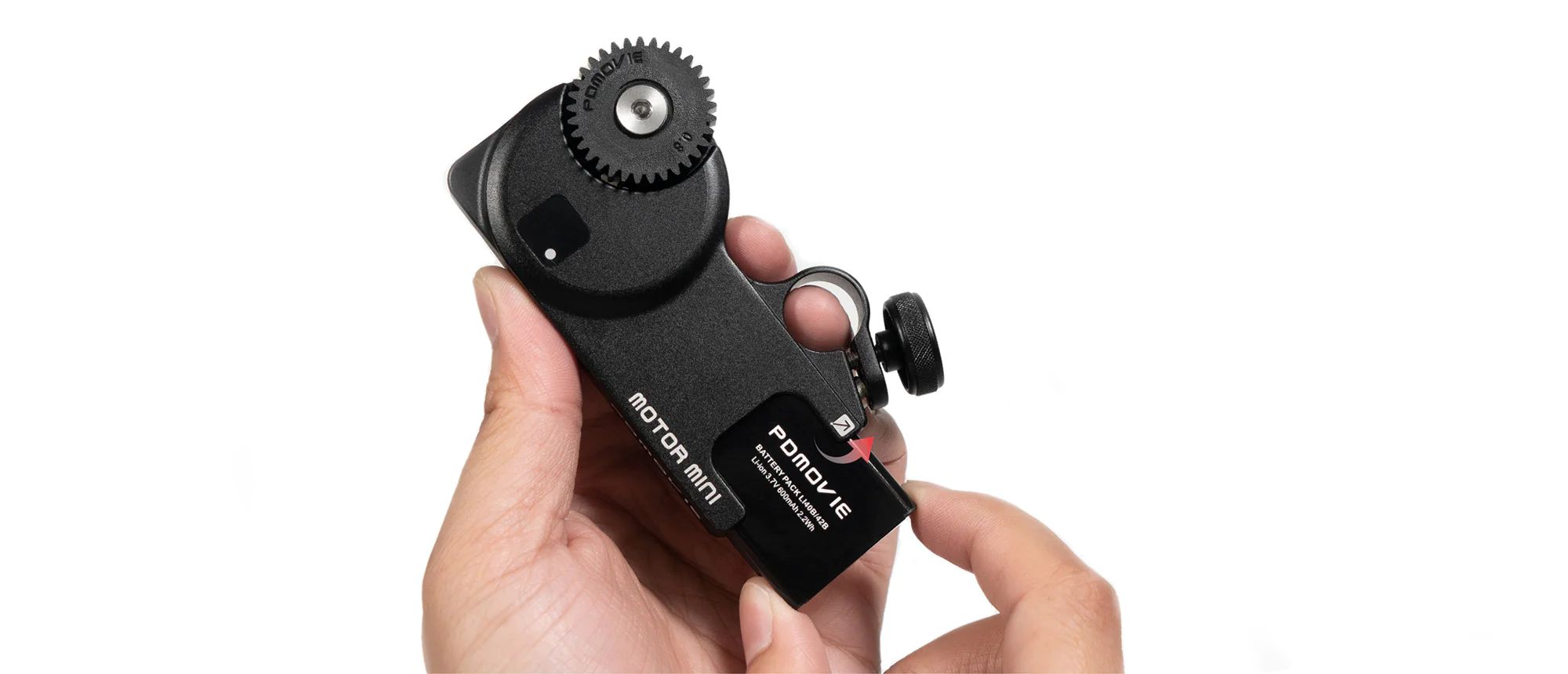

Easy To Replace
Lift and pull, quick battery change
LI42B Battery
The focus motor uses two LI-42B batteries as a replaceable power supply, and the battery life is 8 hours

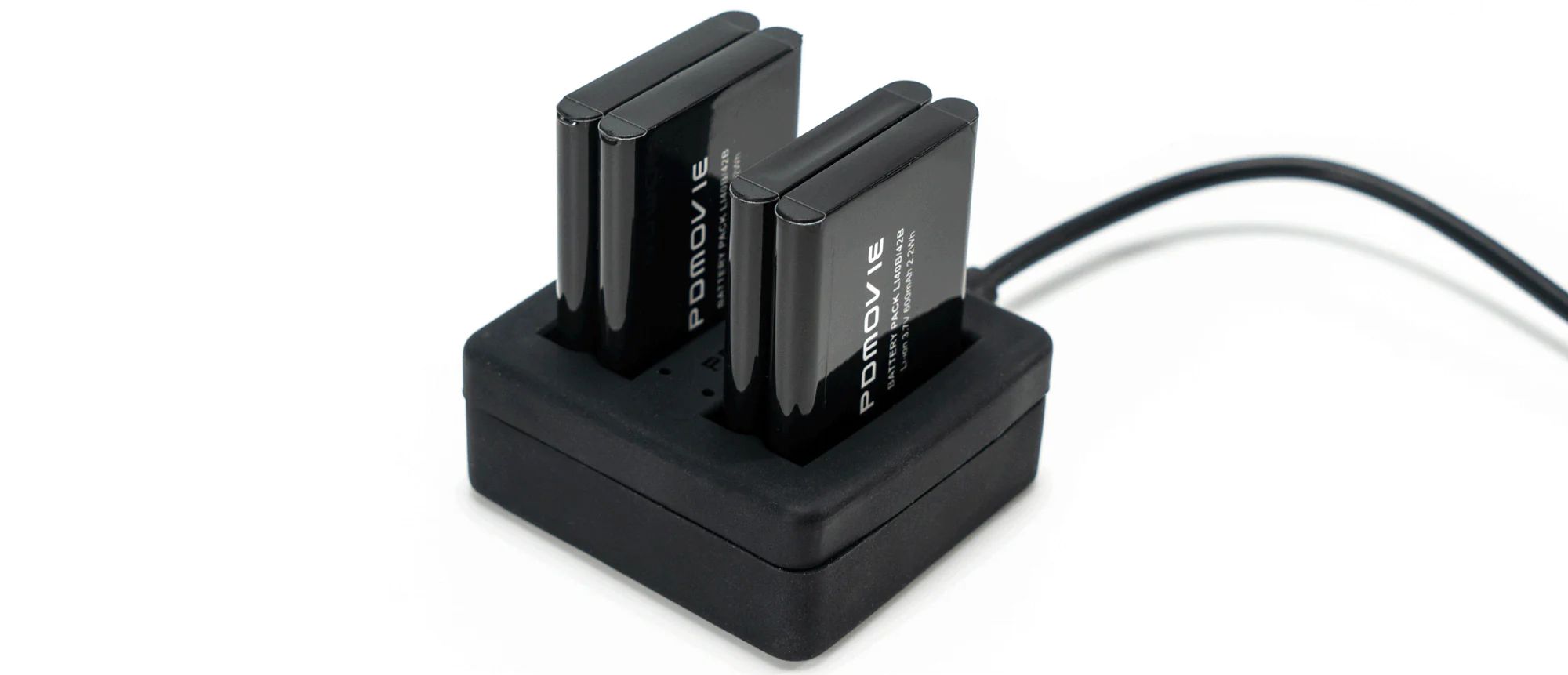

Special Charger For Motor Battery
Charge two sets of motor batteries at the same time, and it can be fully charged in two hours

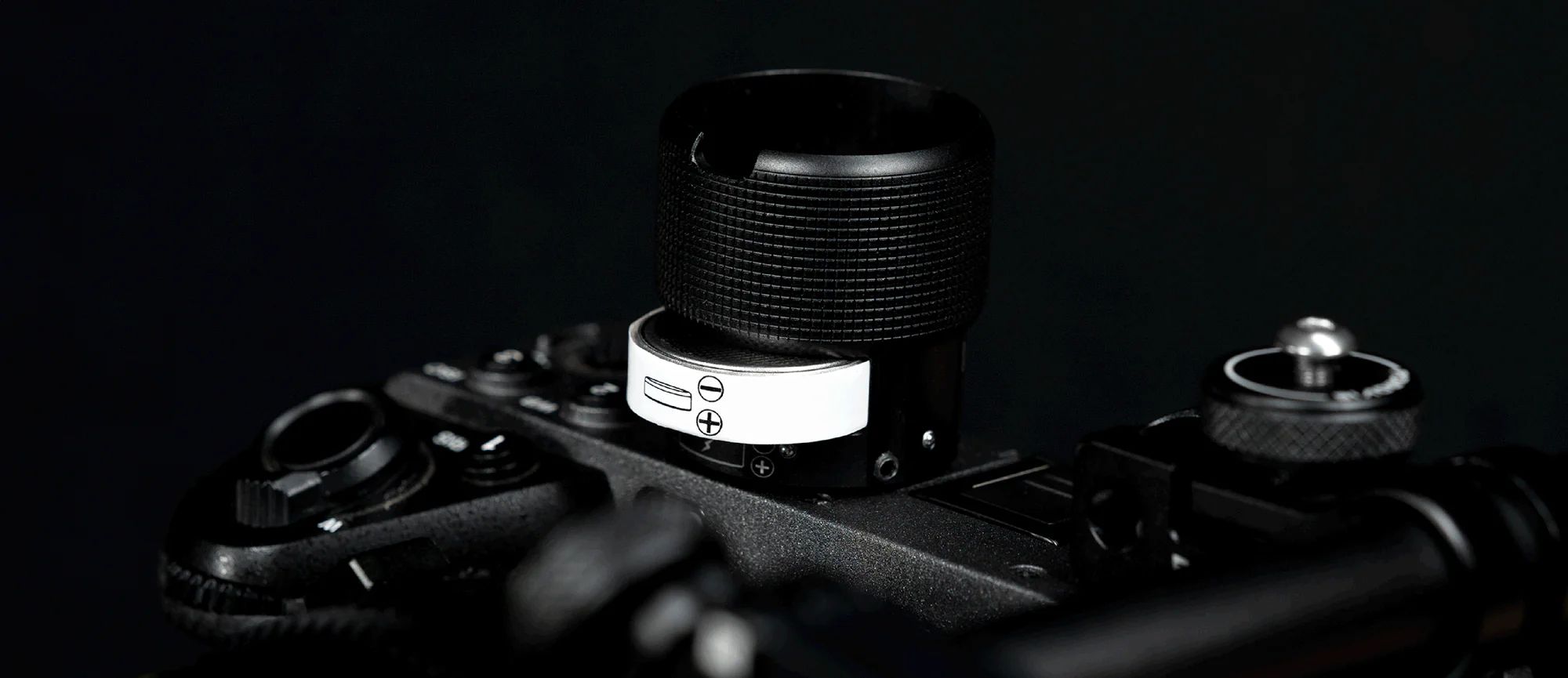

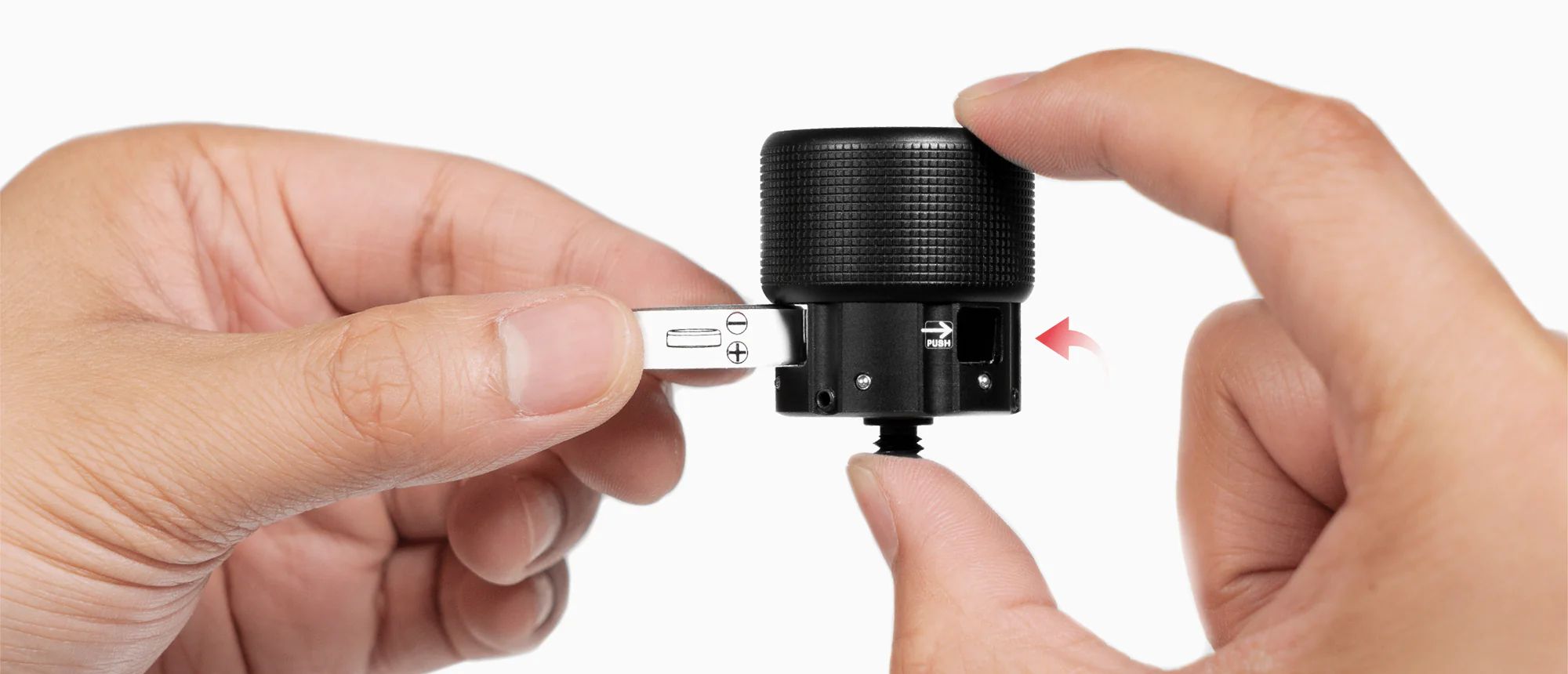

Easy To Replace
Pull and Push, quick battery change
LIR2477 Battery
The controller uses LIR2477 battery as a replaceable power supply, and the battery life is 10 hours
Two Charging Methods

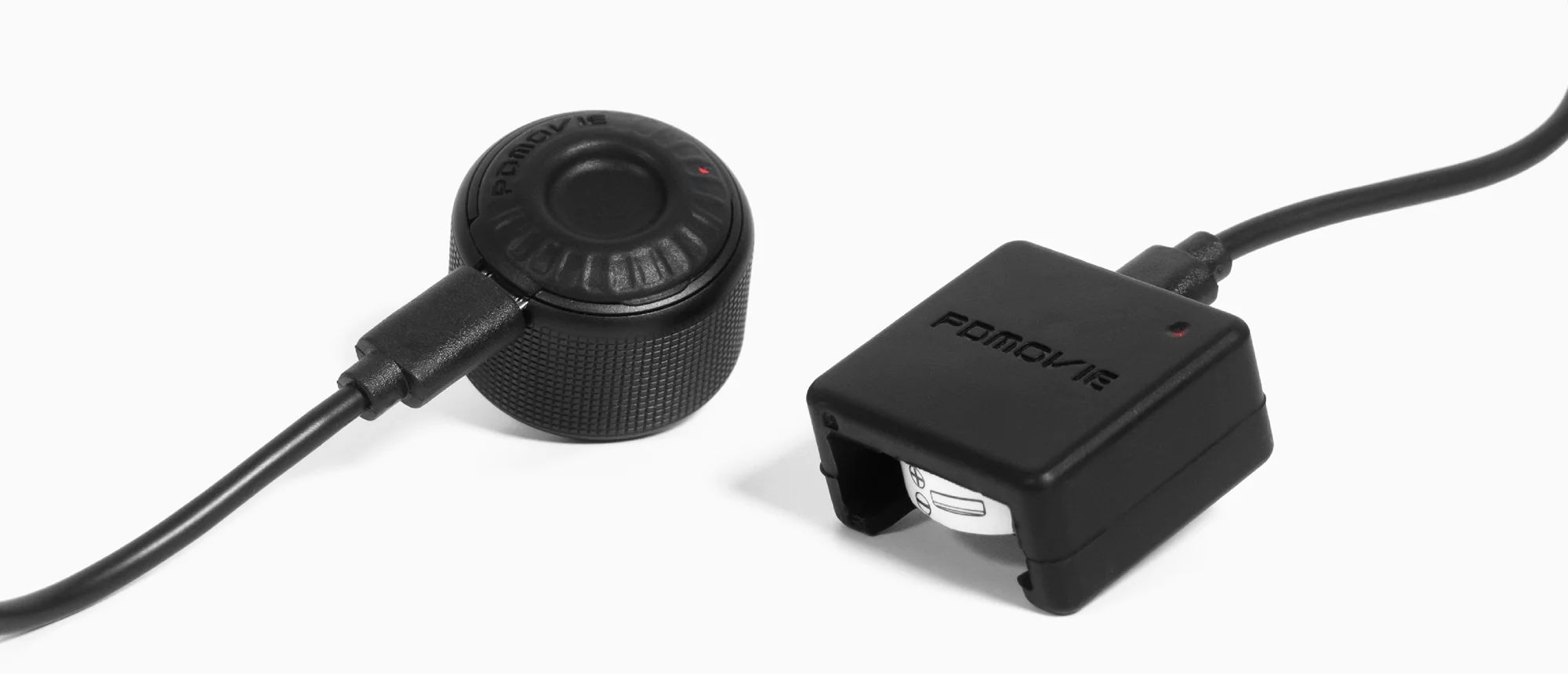

LIR2477 battery, can be charged directly through the controller,or use a dedicated charger to charge

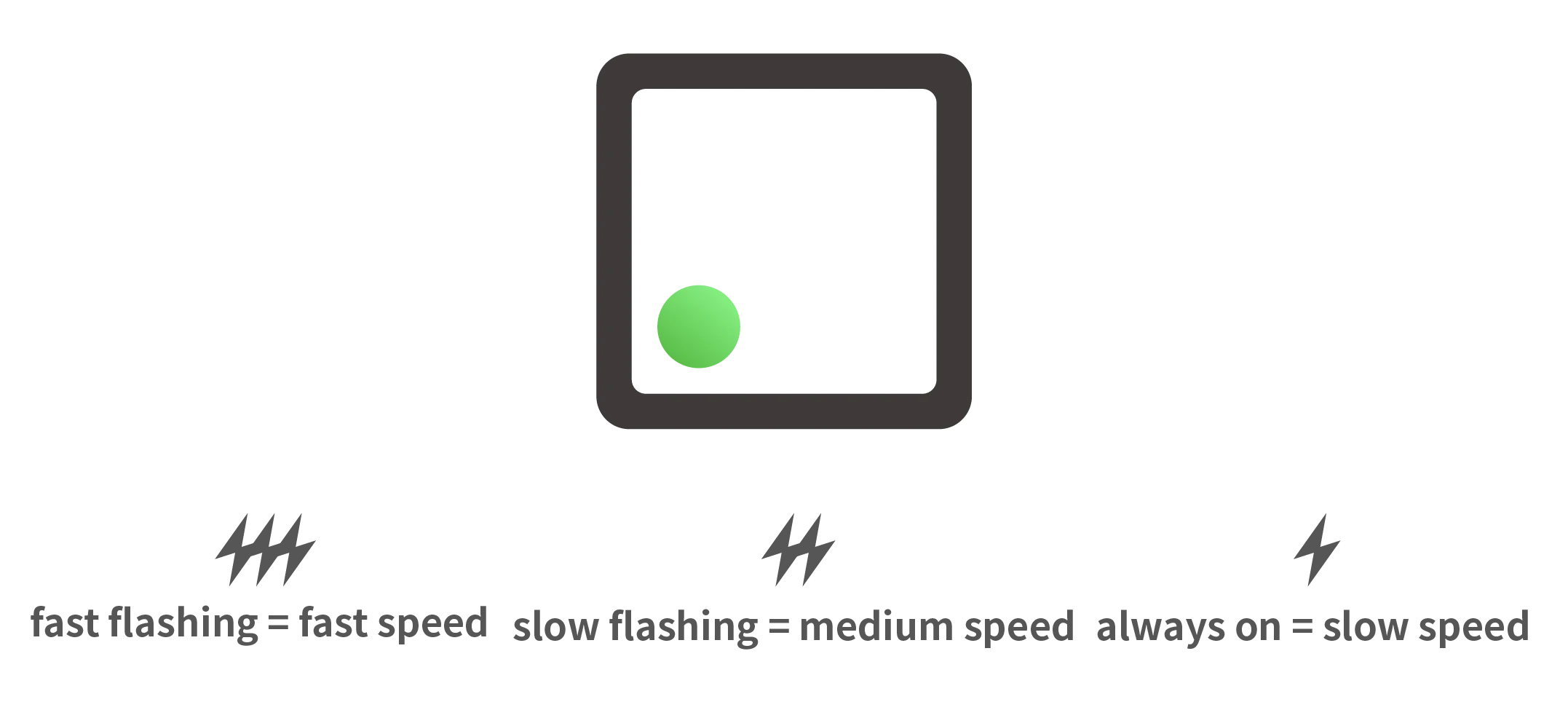

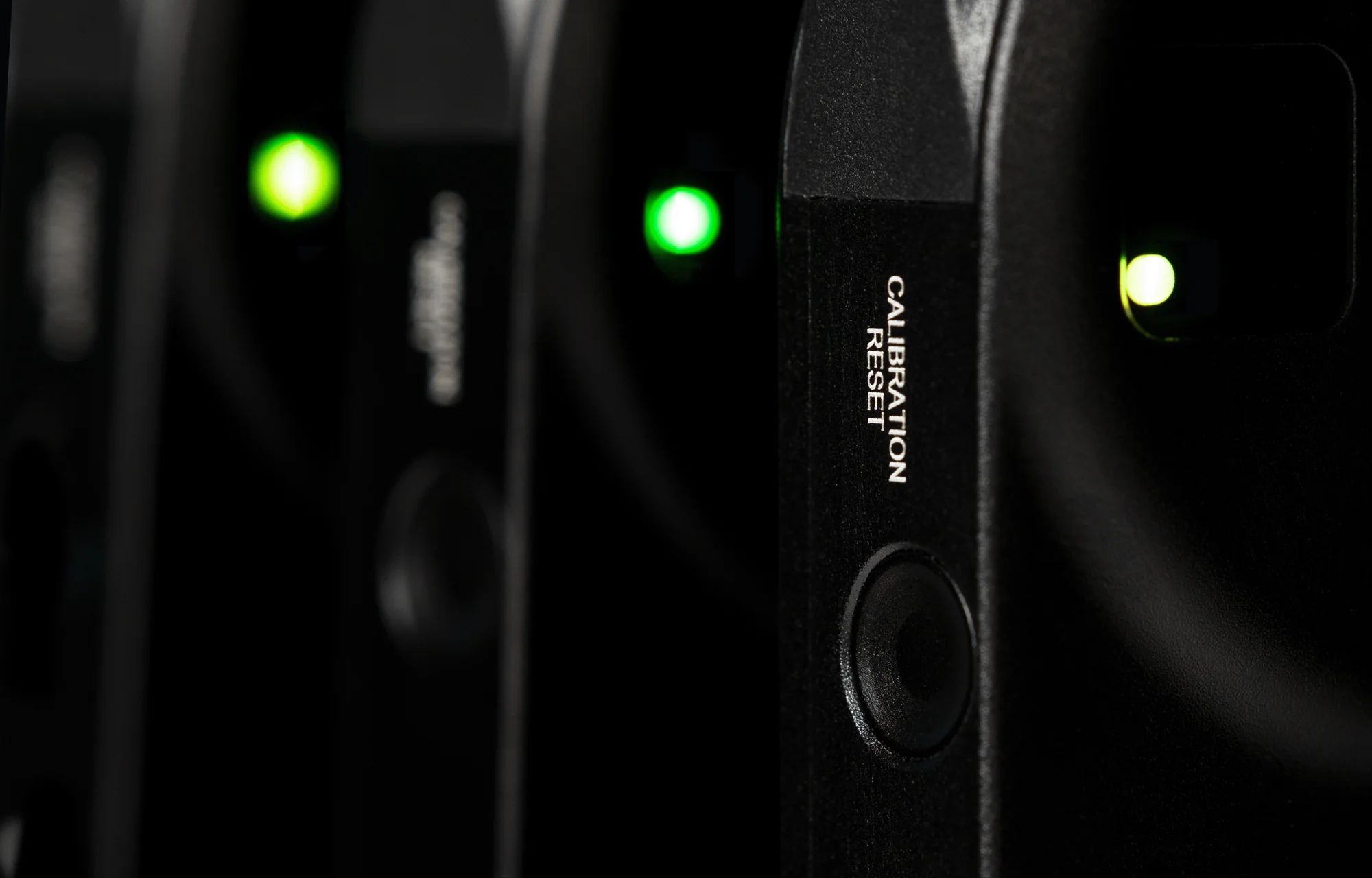

Indicator light
The flashing speed of the indicator light represents the current speed

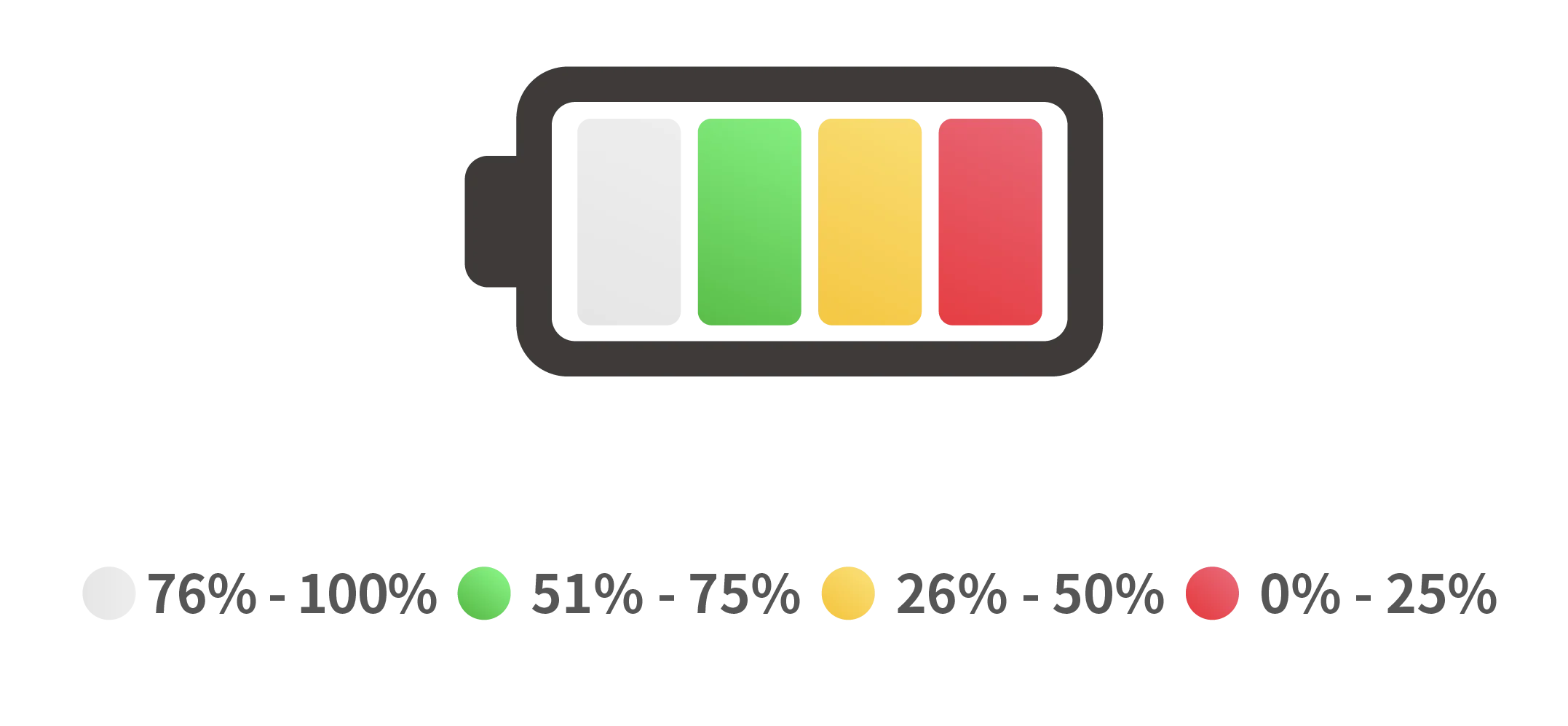

Power
The color of the indicator light represents the current power

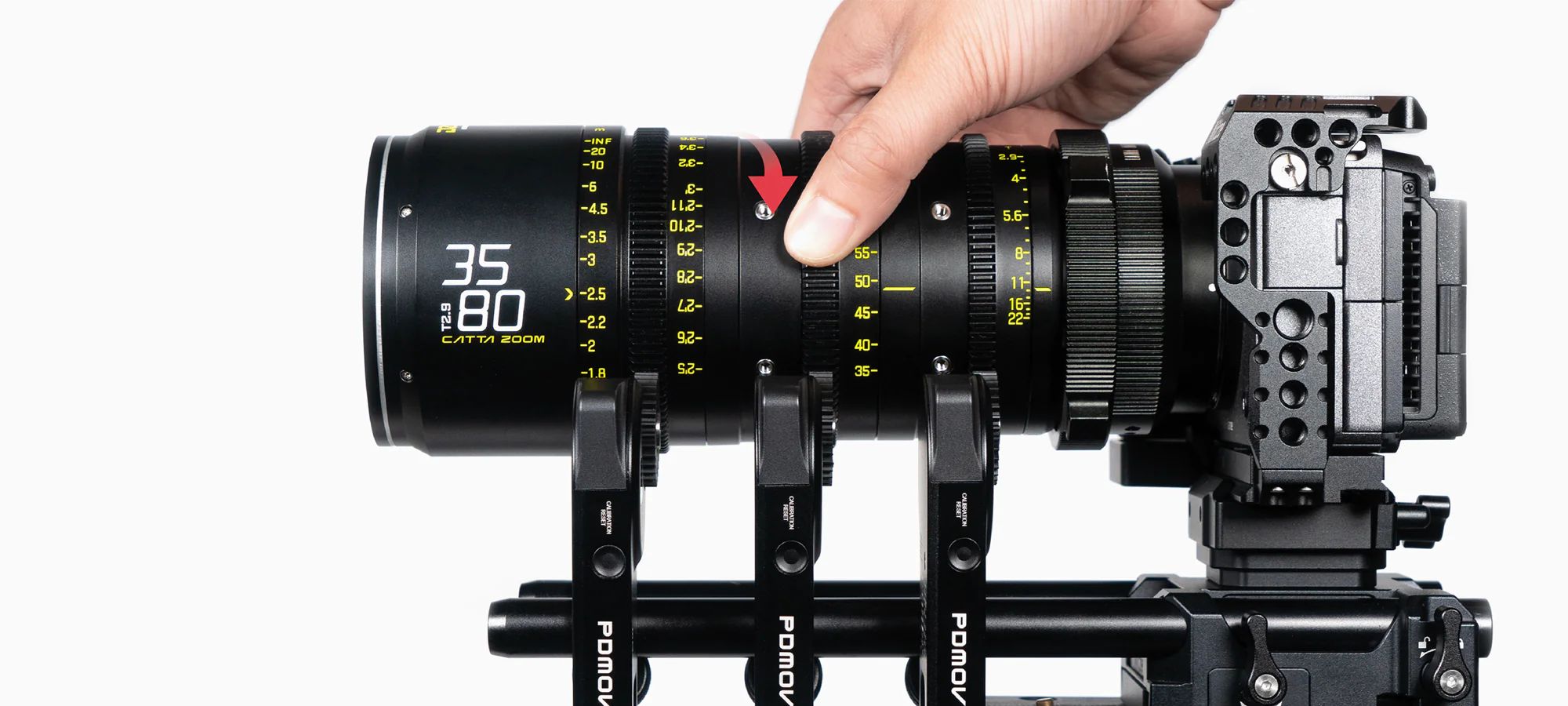

Easy Calibration
Through the motor button, can easily start automatic lens calibration with one button, such as using an infinity lens,Lens travel can also be set by manual calibration
Smart & Comprehensive Remote Air APP

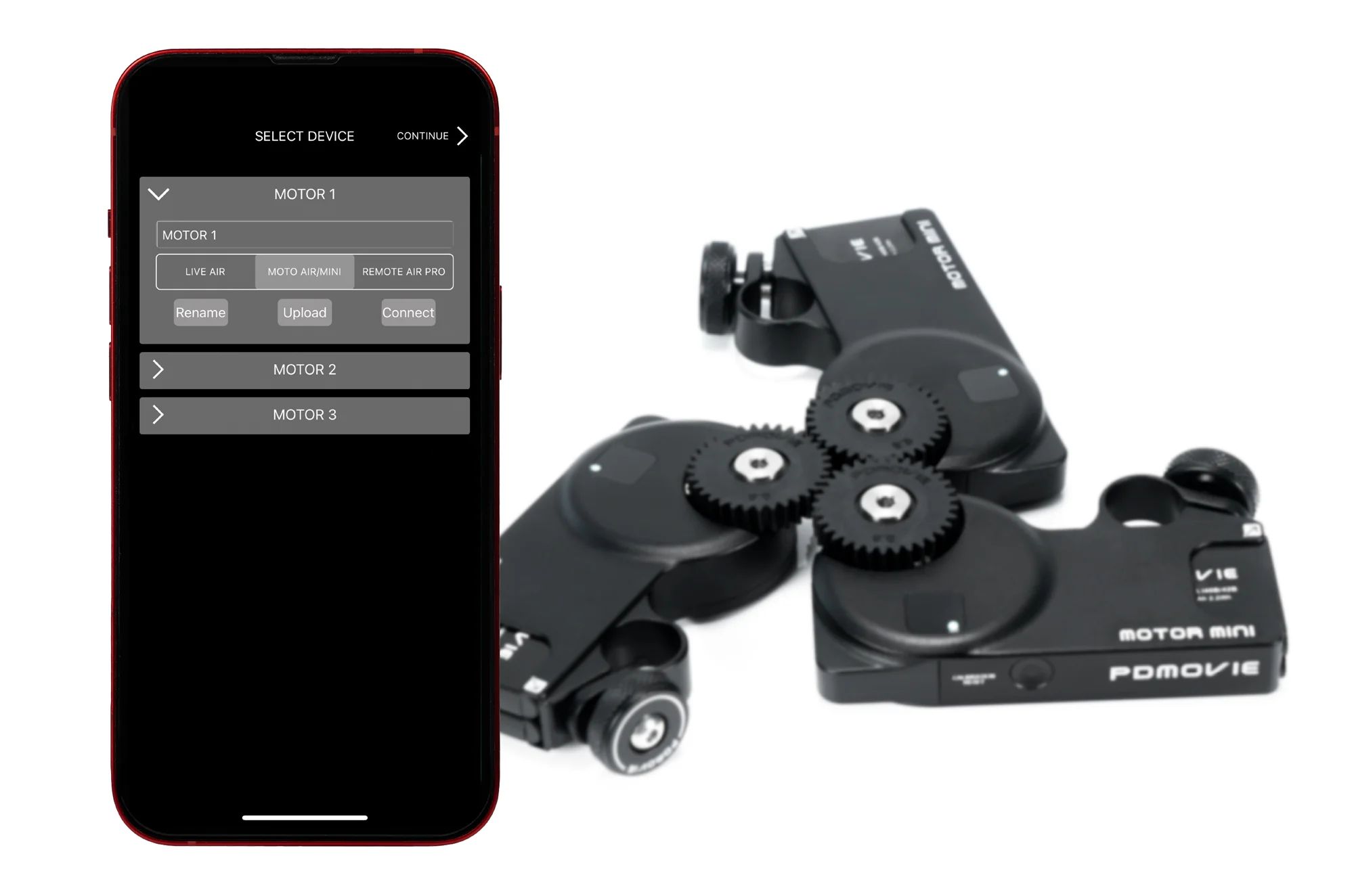

·Connect multiple motors at the same time
·Mark save lens data
·A-B point lens limit
·Motor runs automatically

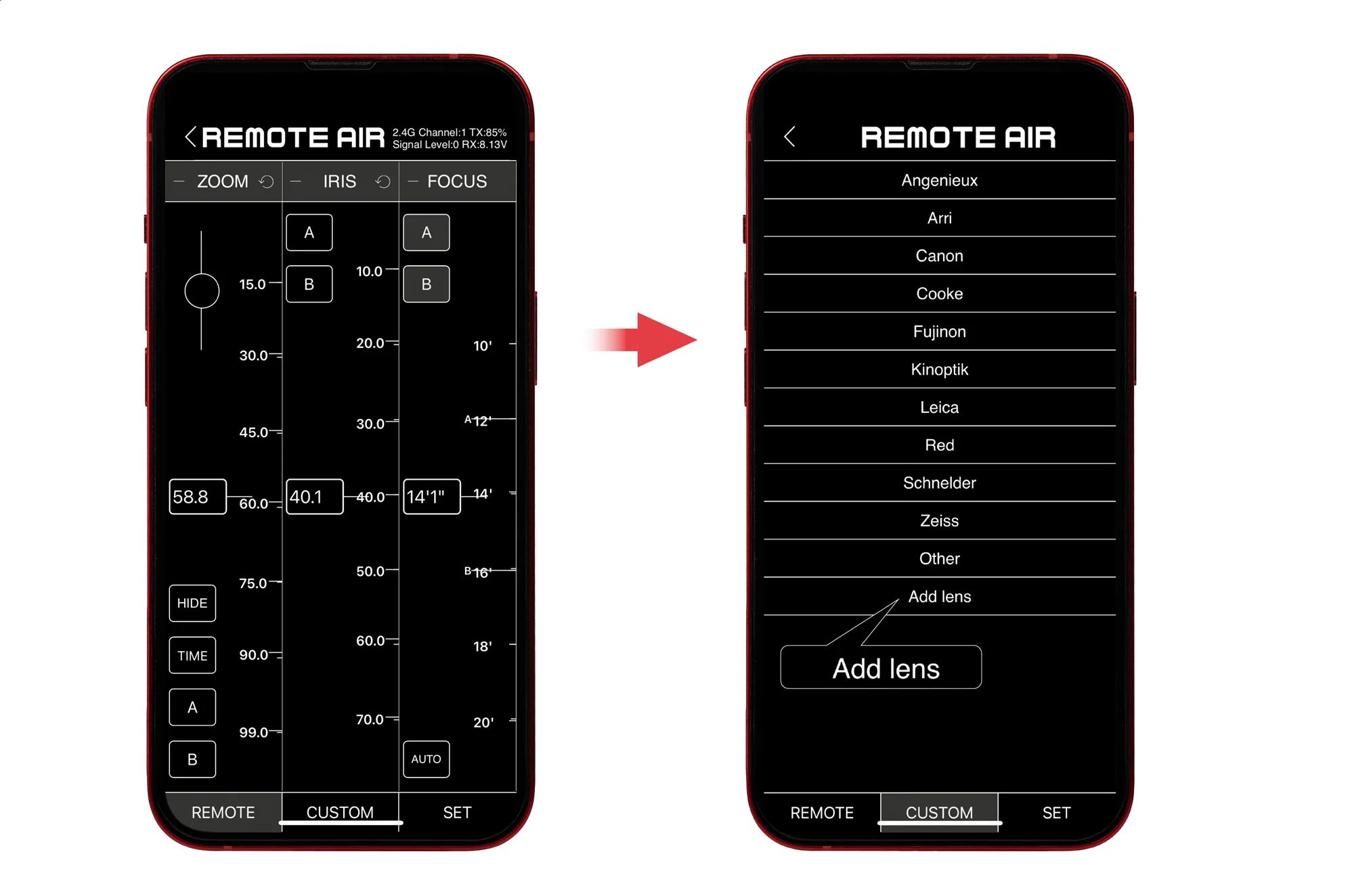

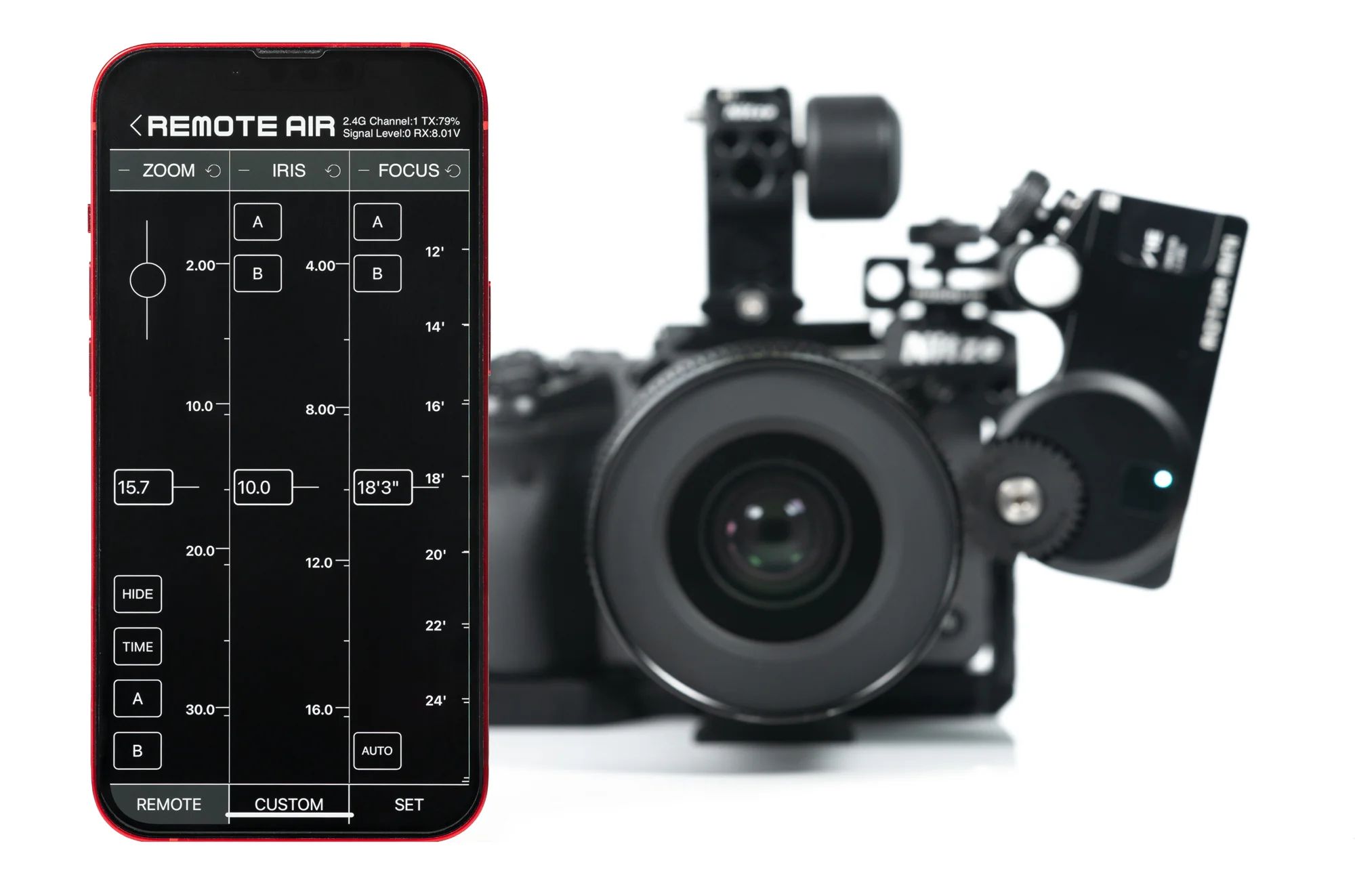

Smart & Comprehensive Remote Air APP

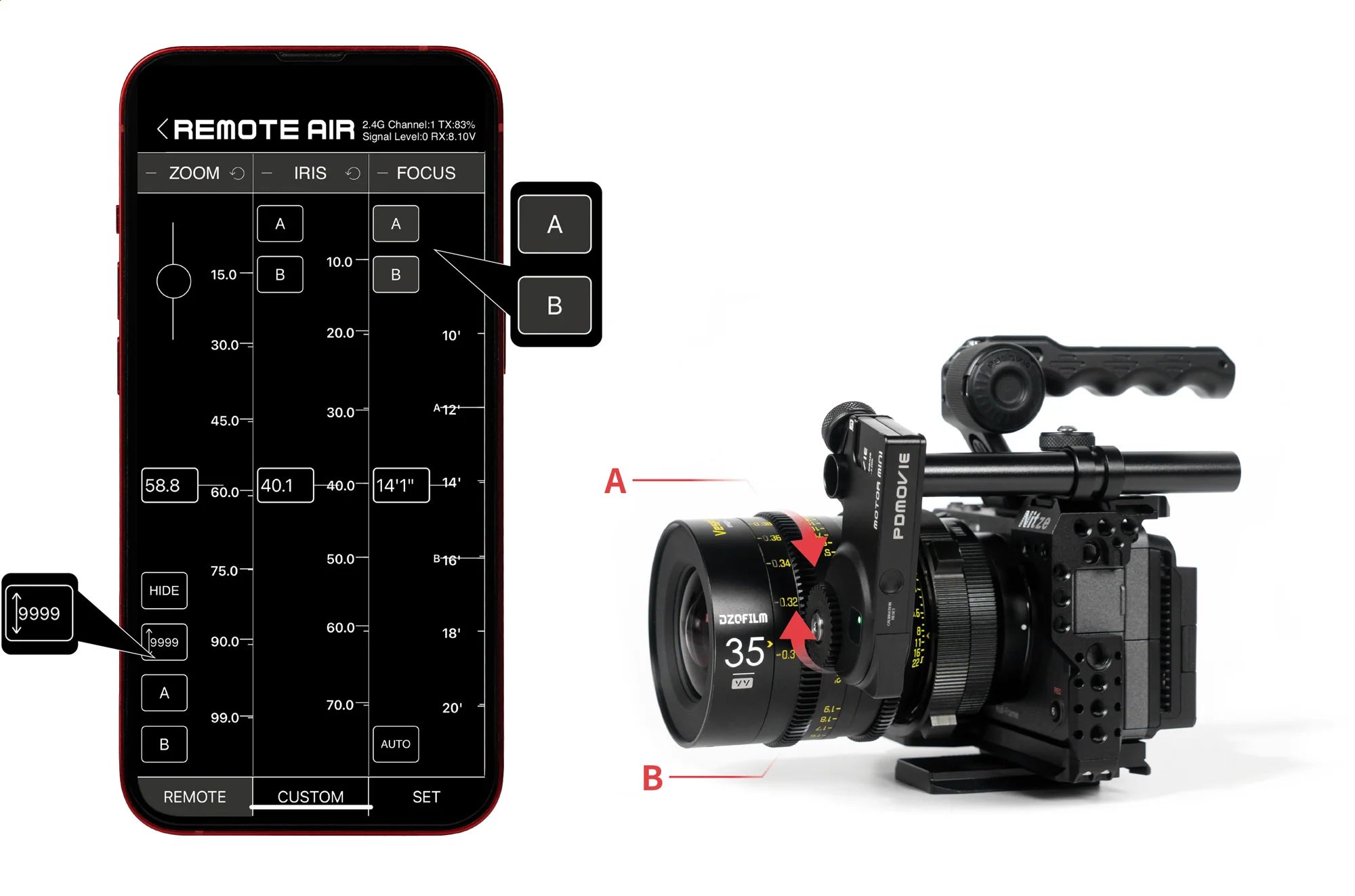

Smart & Comprehensive Remote Air APP
·APP can set the limit stroke of AB point
·After setting the AB point, it can be set to run automatically within 2-9999 seconds
Smart & Comprehensive Remote Air APP
·APP can save the set lens data, upload it to the background of the system, and then download it for use
PDMOVIE Bluetooth Focus Controller For PD-BTMP, PD-BTMP-N, PD-BTMP-S & PD-BTMP-SP Specs
General
|
Compatibility |
PDMOVIE PD-BTMP Motor / PD-BTMP-N Motor / PD-BTMP-S Motor / PD-BTMP-SP Motor |
|
Bluetooth Distance |
328' / 100 m |
Wireless
|
Wireless |
Bluetooth 5.0 |
|
Bluetooth |
Yes |
Battery
|
Battery Chemistry |
Lithium-Ion |
|
Battery Capacity |
200 mAh |
Power
|
DC Input Power |
3.6 VDC |
Environmental
|
Operating Temperature |
-4 to 140°F / -20 to 60°C |
Physical
|
Mounting |
1 x 1/4"-20 Screw |
|
Dimensions |
1.3 x 1.2" / 32 x 31 mm |
|
Weight |
1 oz / 28 g |
Packaging Info
|
Package Weight |
0.32 lb |
|
Box Dimensions (LxWxH) |
4 x 3 x 2" |
PDMOVIE MOTOR MINI Bluetooth Motor For LIVE AIR 2, 2S, And 3 Specs
General
|
Compatibility |
PDMOVIE PDL-TC-AFP Controller / PDL-TC-AZP Controller / PDL-TC-AFX Controller |
Wireless
|
Wireless |
Bluetooth 5.0 |
|
Bluetooth |
5.0 |
Battery
|
Battery Chemistry |
Lithium-Ion |
|
Battery Capacity |
600 mAh / 2.2 Wh |
Power
|
DC Input Power |
6.4 to 8.4 VDC |
Environmental
|
Operating Temperature |
-4 to 140°F / -20 to 60°C |
Physical
|
Mounting |
1 x 15 mm Rod Clamp |
|
Dimensions |
3.7 x 2 x 0.8" / 93 x 50.7 x 19.8 mm |
|
Weight |
4.7 oz / 132 g |
Packaging Info
|
Package Weight |
1.61 lb |
|
Box Dimensions (LxWxH) |
8.5 x 5.2 x 3.7" |
PDMOVIE LI-42B Battery For PD4-HT, PDL-TC-AFP, PDL-TC-AZP Controllers Specs
General
|
Compatibility |
PDMOVIE PD4-HT Controller / PDL-TC-AFP Controller / PDL-TC-AZP Controller |
Battery
|
Battery Chemistry |
Lithium-Ion |
|
Battery Capacity |
600 mAh / 2.2 Wh |
|
Output Voltage |
3.7 VDC |
Physical
|
Weight |
Not Specified by Manufacturer |
PDMOVIE LIR2477 Battery For PDL-TC-AFX Focus Controller Specs
General
|
Compatibility |
PDMOVIE PDL-TC-AFX Focus Controller |
Battery
|
Battery Chemistry |
Lithium-Ion |
|
Output Voltage |
3.6 VDC |
Physical
|
Weight |
Not Specified by Manufacturer |
Packaging Info
|
Package Weight |
0.04 lb |
|
Box Dimensions (LxWxH) |
9 x 7 x 0.55" |
PDMOVIE USB Charging Cable For REMOTE AIR PRO 3 Controller (3') Specs
General
|
Compatibility |
PDMOVIE REMOTE AIR PRO 3 Controller |
Inputs / Outputs
|
Connector 1 |
1 x USB-A Male |
|
Connector 2 |
1 x 6-Pin LEMO-Type Male |
Physical
|
Material of Construction |
Aluminum (Plug) |
|
Cable Length |
3' / 0.9 m |
PDMOVIE 2/4-Channel Battery Charger For LI-42B & LI42Bx2 Batteries Specs
General
|
Compatibility |
PDMOVIE LI-42B Battery / LI-42Bx2 Battery |
Power
|
Power Source |
USB |
Physical
|
Cable Length |
Not Specified by Manufacturer |
|
Dimensions |
Not Specified by Manufacturer |
|
Weight |
Not Specified by Manufacturer |
Packaging Info
|
Package Weight |
0.155 lb |
|
Box Dimensions (LxWxH) |
9 x 6.85 x 1.2" |
PDMOVIE 15mm Rod Clamp With Rod & Shoe Adapter For Motor Specs
Key Specs
|
Mounting |
Cage Mount: 2 x Included 1/4"-20 Male Screw, 1 x Built-In Cold Shoe |
|
Rod Standard |
15 mm Single Rod |
|
Rod Ports |
1 x 15 mm Rod Port |
|
Color |
Black |
|
Pan |
No |
|
Tilt |
No |
|
Roll |
No |
Mounting
|
Mounting |
Cage Mount: 2 x Included 1/4"-20 Male Screw, 1 x Built-In Cold Shoe |
|
Rod Standard |
15 mm Single Rod |
|
Rod Ports |
1 x 15 mm Rod Port |
|
Included Rods |
Yes |
PDMOVIE 15mm Rod (5.9") Specs
Physical
|
Diameter |
15 mm |
|
Length |
5.9" / 15 cm |
|
Thread Type |
No |
|
Number of Rods |
1 |
| Product Manuals | |
|---|---|
| PDMOVIE LIVE AIR 3 Wireless Follow Focus Lens Control Kit - Product Manual |
- PDMOVIE Bluetooth Focus Controller for PD-BTMP, PD-BTMP-N, PD-BTMP-S & PD-BTMP-SP
- PDMOVIE LIR2477 Battery for PDL-TC-AFX Focus Controller
- 1/4"-20 Screw
- PDMOVIE MOTOR MINI Bluetooth Motor for LIVE AIR 2, 2S, and 3
- PDMOVIE LI-42Bx2 Battery for PD-BTMP, PD-BTMP-N & PD-BTMP-S
- PDMOVIE 2/4-Channel Battery Charger for LI-42B & LI42Bx2 Batteries
- 0.8 MOD Gear
- 2 x PDMOVIE LI-42B Battery for PD4-HT, PDL-TC-AFP, PDL-TC-AZP Controllers
- PDMOVIE LIR2477 Battery for PDL-TC-AFX Focus Controller
- PDMOVIE USB Charging Cable for REMOTE AIR PRO 3 Controller (3')
- 2 x PDMOVIE 2/4-Channel Battery Charger for LI-42B & LI42Bx2 Batteries
- USB Cable
- PDMOVIE 15mm Rod Clamp with Rod & Shoe Adapter for Motor
- PDMOVIE 15mm Rod (5.9")
- 2 x 1/4"-20 Screw
- Allen Wrench
- PDMOVIE 15mm Rod (5.9")
- Lens Gear Ring
- Clamp Mount
Brand: PDMovie |
Code: PDL-AFX
MPN:
APN: 6976679540069 |
Supplier Code:
Brand: PDMovie |
Code: PDL-AFX
MPN:
APN: 6976679540069 |
Supplier Code:
At a glance
The details Determine The experienceIntegrating four modules of motor, receiving, driving and power supplyThe volume of the module is 21cm², 20% of the total volume of the motor |
|
|
The details Determine The experienceHigh precision integrated microchipCombining signal processing and data transmission The volume is only 31*31*30mm |
Controller comes with 1/4 screw, As long as there are 1/4 screw holes, it can be installed.Such as Installed on accessories |
|
|
Controller comes with 1/4 screw, As long as there are 1/4 screw holes, it can be installed.Such as Installed on the handle |
Controller comes with 1/4 screw, As long as there are 1/4 screw holes, it can be installed.Such as Installed on the monitor |
|
|
Easy To ReplaceLift and pull, quick battery change |
LI42B BatteryThe focus motor uses two LI-42B batteries as a replaceable power supply, and the battery life is 8 hours |
|
|
Special Charger For Motor BatteryCharge two sets of motor batteries at the same time, and it can be fully charged in two hours |
Easy To ReplacePull and Push, quick battery change |
|
|
LIR2477 BatteryThe controller uses LIR2477 battery as a replaceable power supply, and the battery life is 10 hours |
Two Charging MethodsLIR2477 battery, can be charged directly through the controller,or use a dedicated charger to charge |
|
|
Indicator lightThe flashing speed of the indicator light represents the current speed |
PowerThe color of the indicator light represents the current power |
|
|
Easy CalibrationThrough the motor button, can easily start automatic lens calibration with one button, such as using an infinity lens,Lens travel can also be set by manual calibration |
Smart & Comprehensive Remote Air APP·Connect multiple motors at the same time ·Mark save lens data ·A-B point lens limit ·Motor runs automatically |
|
|
Smart & Comprehensive Remote Air APP |
Smart & Comprehensive Remote Air APP·APP can set the limit stroke of AB point ·After setting the AB point, it can be set to run automatically within 2-9999 seconds |
|
|
Smart & Comprehensive Remote Air APP·APP can save the set lens data, upload it to the background of the system, and then download it for use |

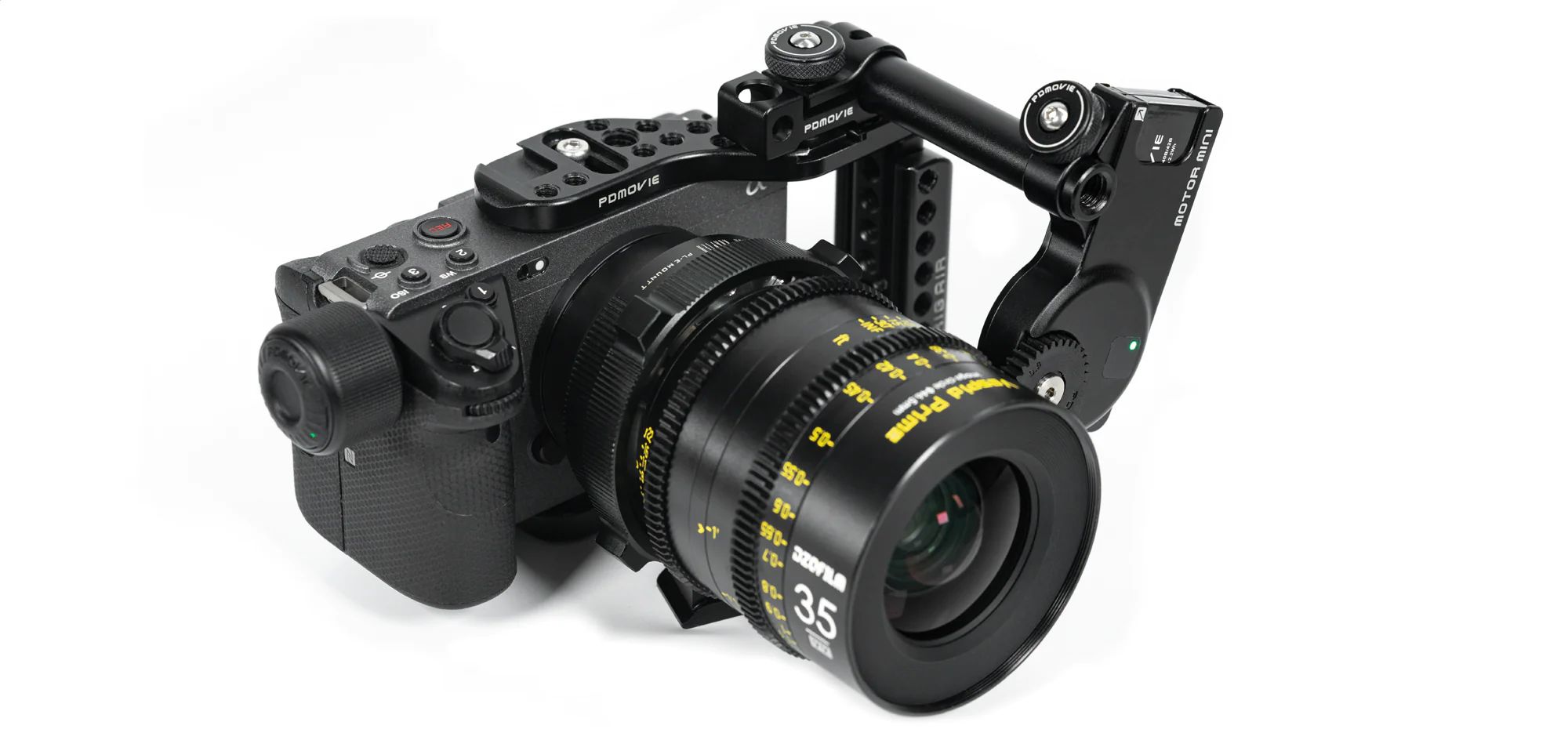

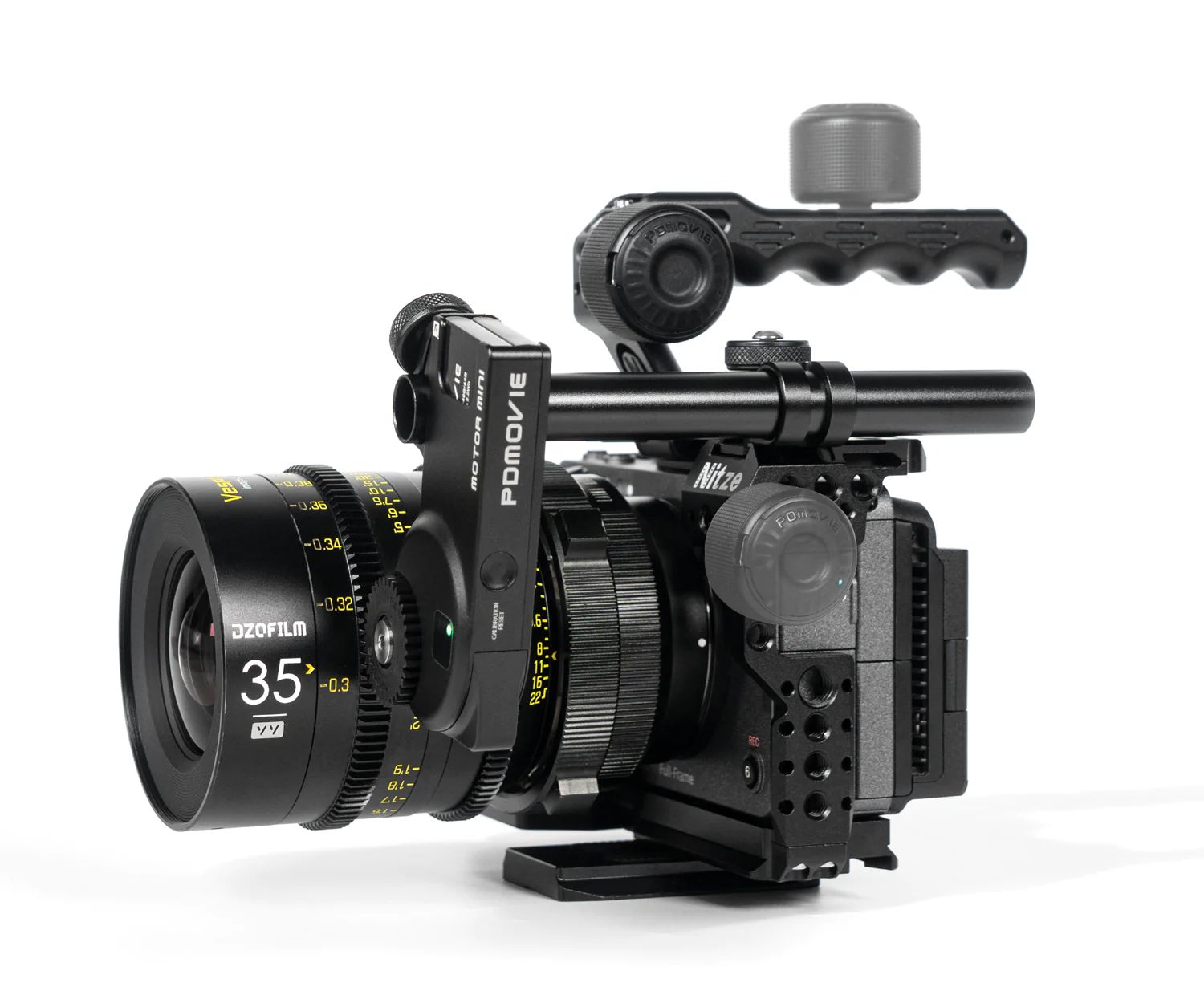

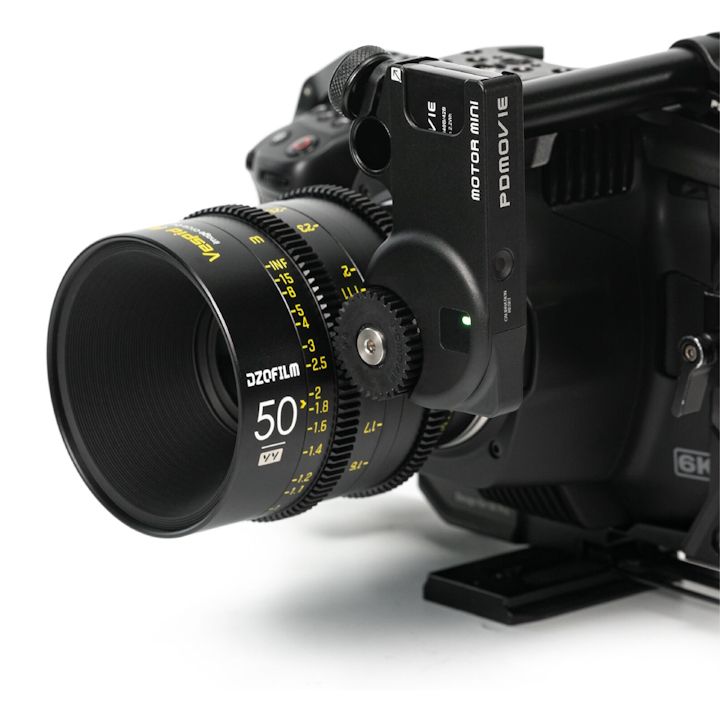

LIVE AIR 3
Small Size Big Function
The new LIVE AIR series brings a new experience of wireless focus control.PDMOVIE has been deeply involved in the field of focus for many years. Strictly control the quality and details, develop unique integrated chip technology, connect multiple modules, and achieve finer focus and more extreme operating experience.
Disappearing Signal antenna. But signal never goes away！！

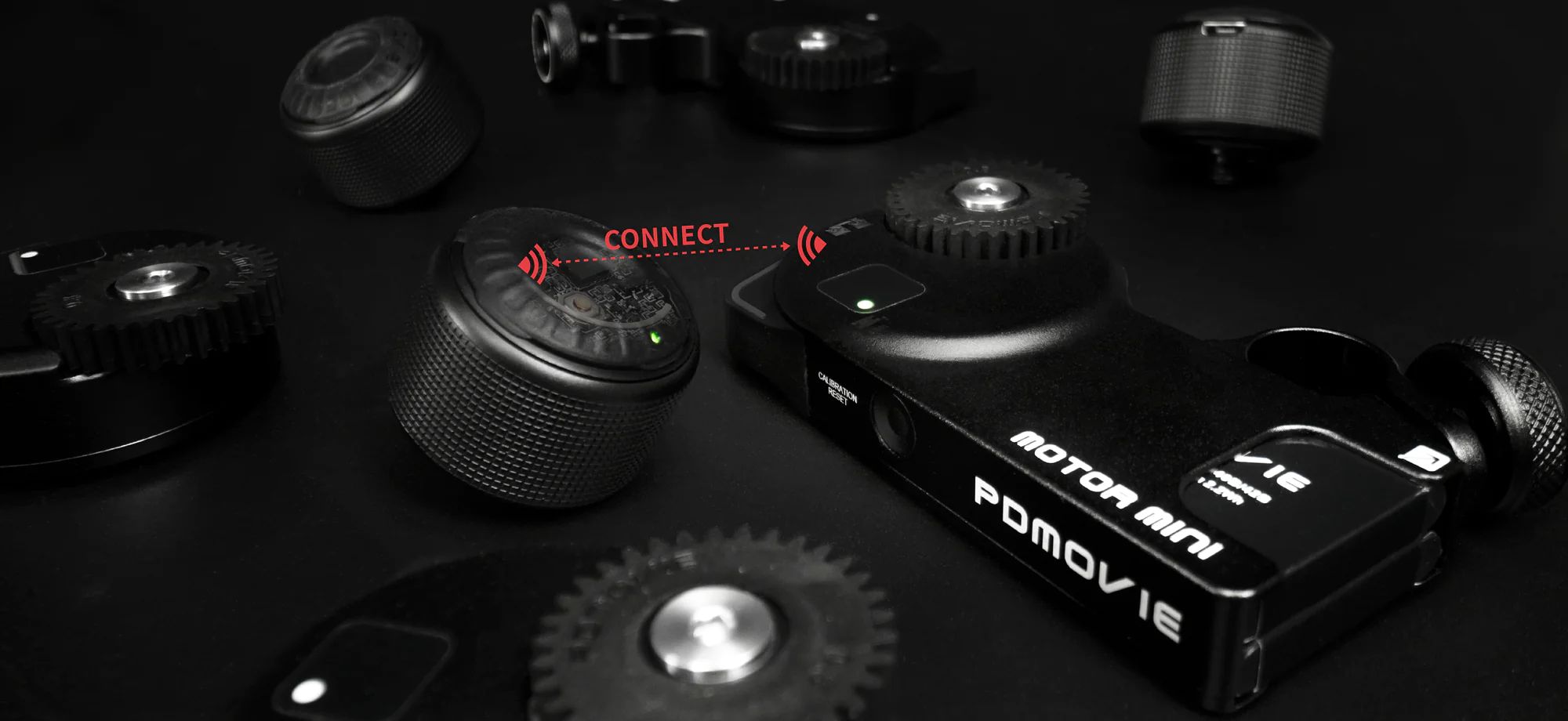

The controller and motor are paired at the factory. Automatically connect at startup

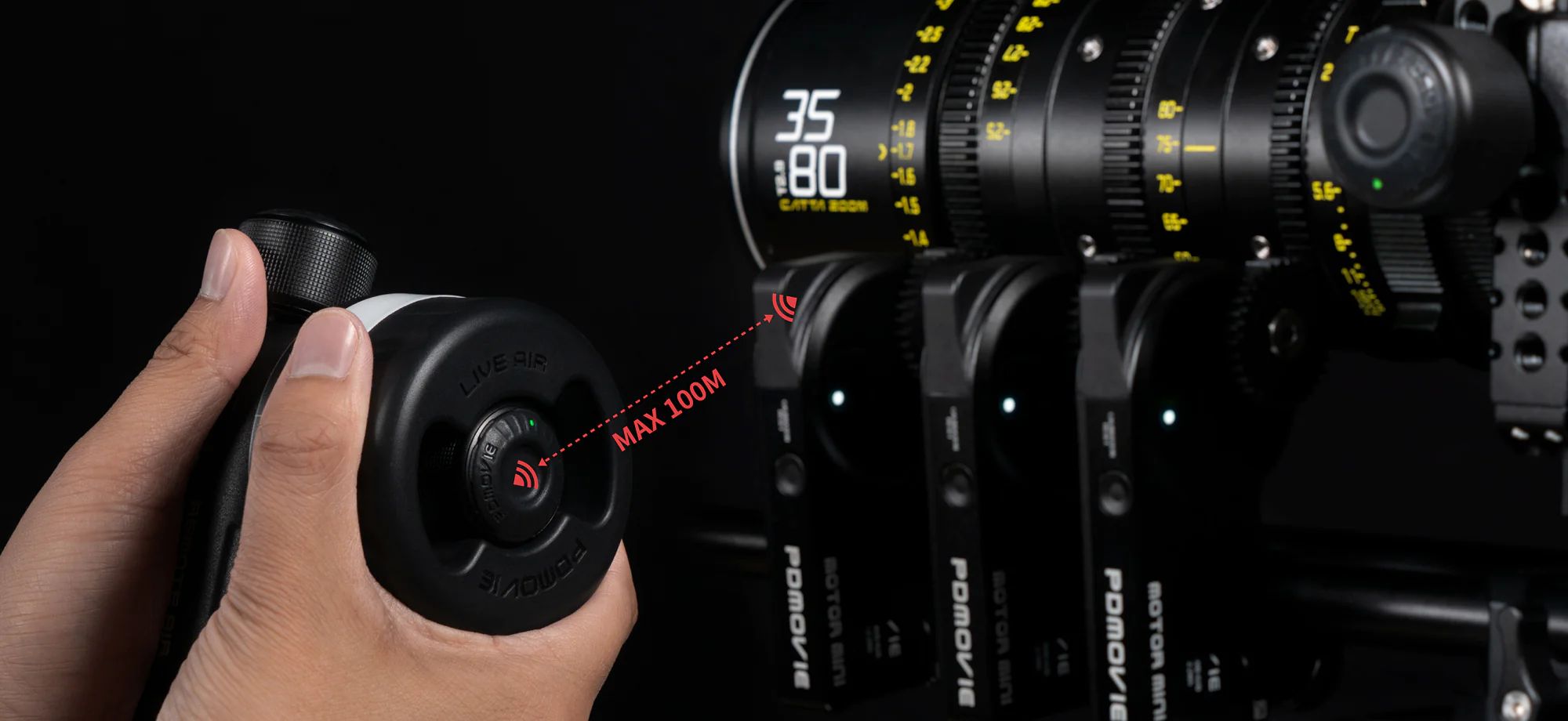

The latest Bluetooth 5.3 technology Unique signal module design. The signal distance is increased by 10 times, and the signal range can reach 100 meters.

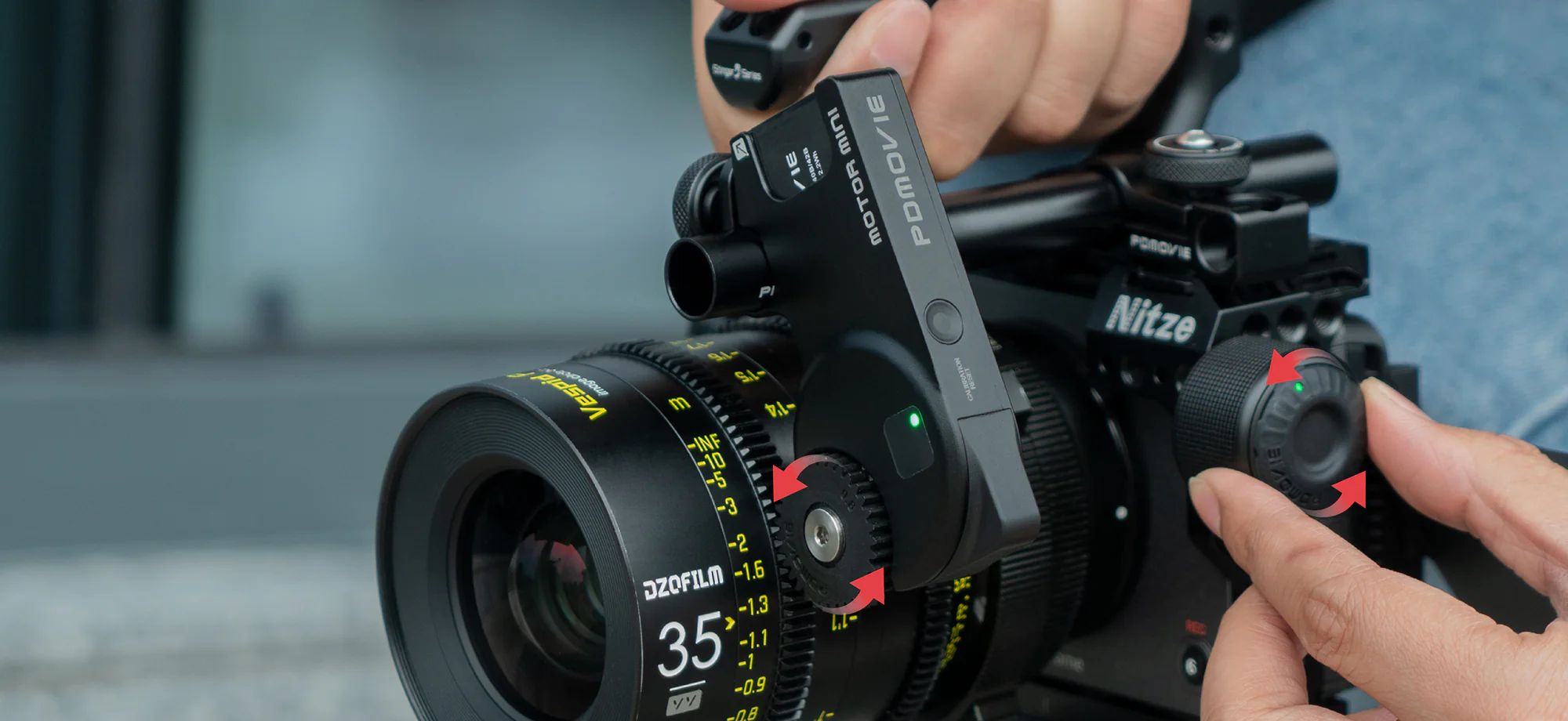

The motor has strong power！It is worth using

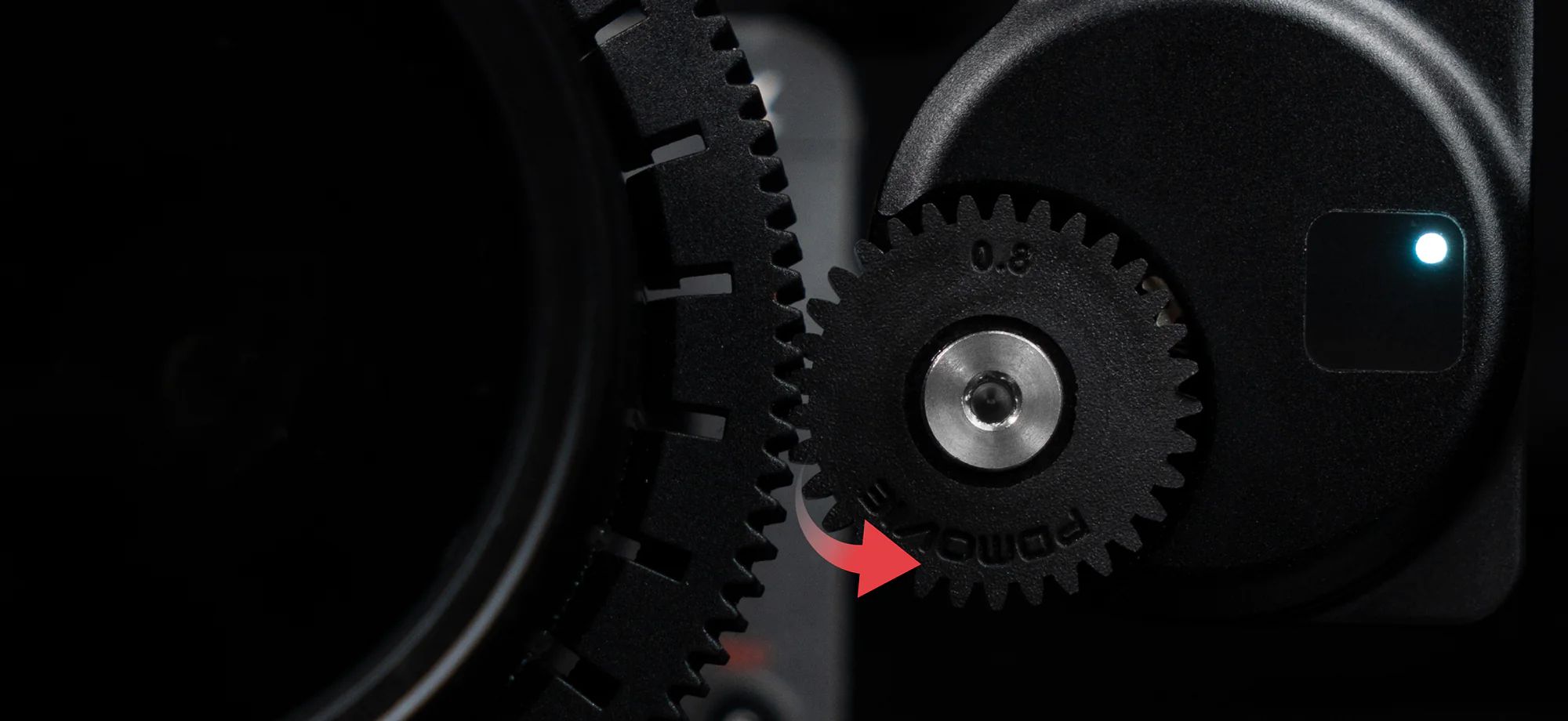

Powerful motor, 0.5Nm torque, low delay, fast response, precise positioning

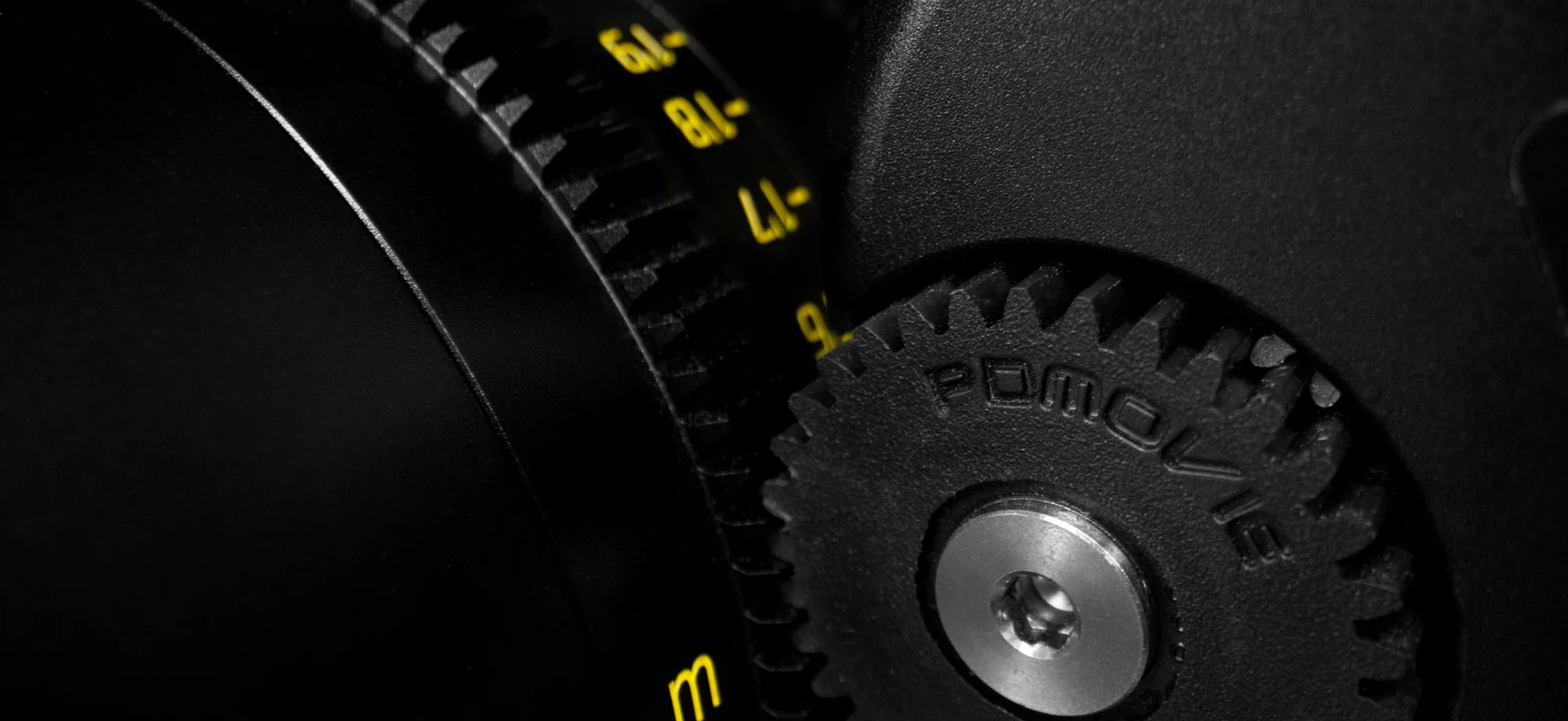

Standard 0.8Mod gear, optional 0.4/0.5/0.6mod to easily control various lenses
The resolution of each revolution of the motor is 16384dpi,and the stroke resolution of the controller is 16384dpi. The Operation instructions can be executed with ultra-low-latency response speed.
One button,one light. All functions can be realized.
Easy To Operate
Both the controller and the motor are only equipped with a signal light and a button, and all setting operations can be completed by pressing the button.The current state of the motor can be obtained through the signal lamp
Abundant expansion accessories. Deal with different scenarios.

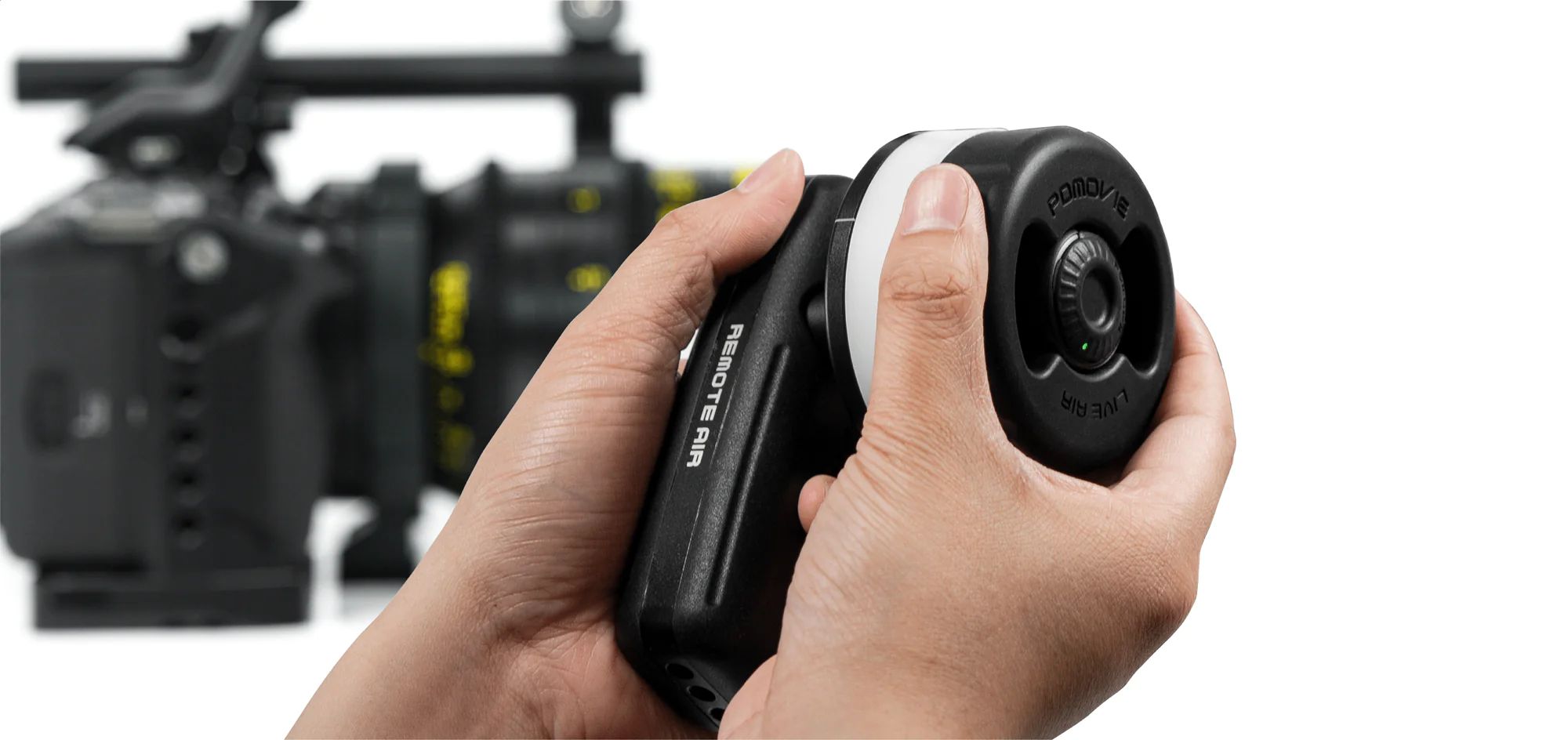

Handwheel Extension Accessories
·75mm large hand wheel telescopic device, individual combat can be converted to team combat at any time.
·The handle is detachable, and there are 7 1/4 screw holes on the hand wheel, which is very convenient for combined installation

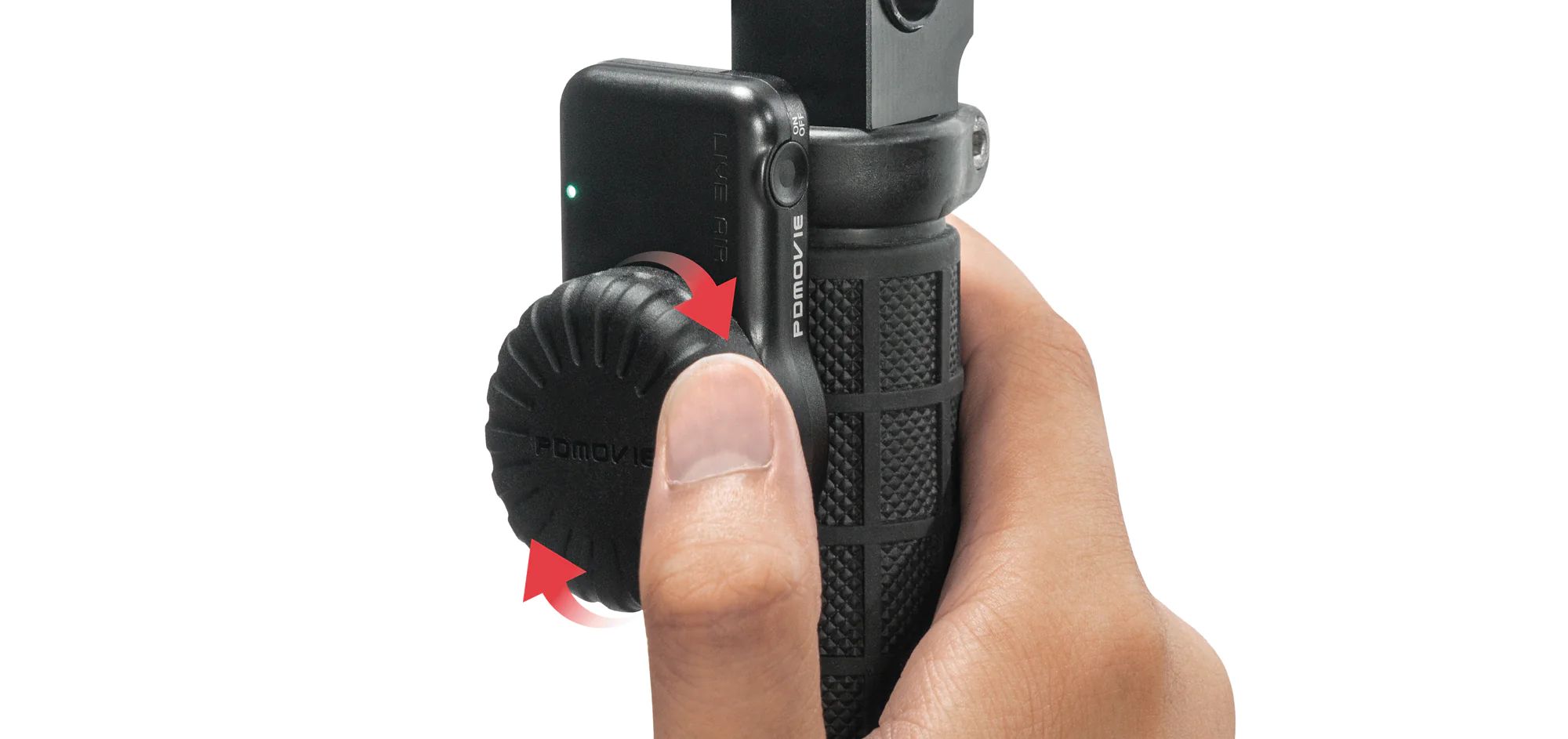

Thumb Wheel Controller
PDL-TC-AFP controller is a handwheel controller specially used for focus control, Rotation range 300°, Battery life 6-8 hours.

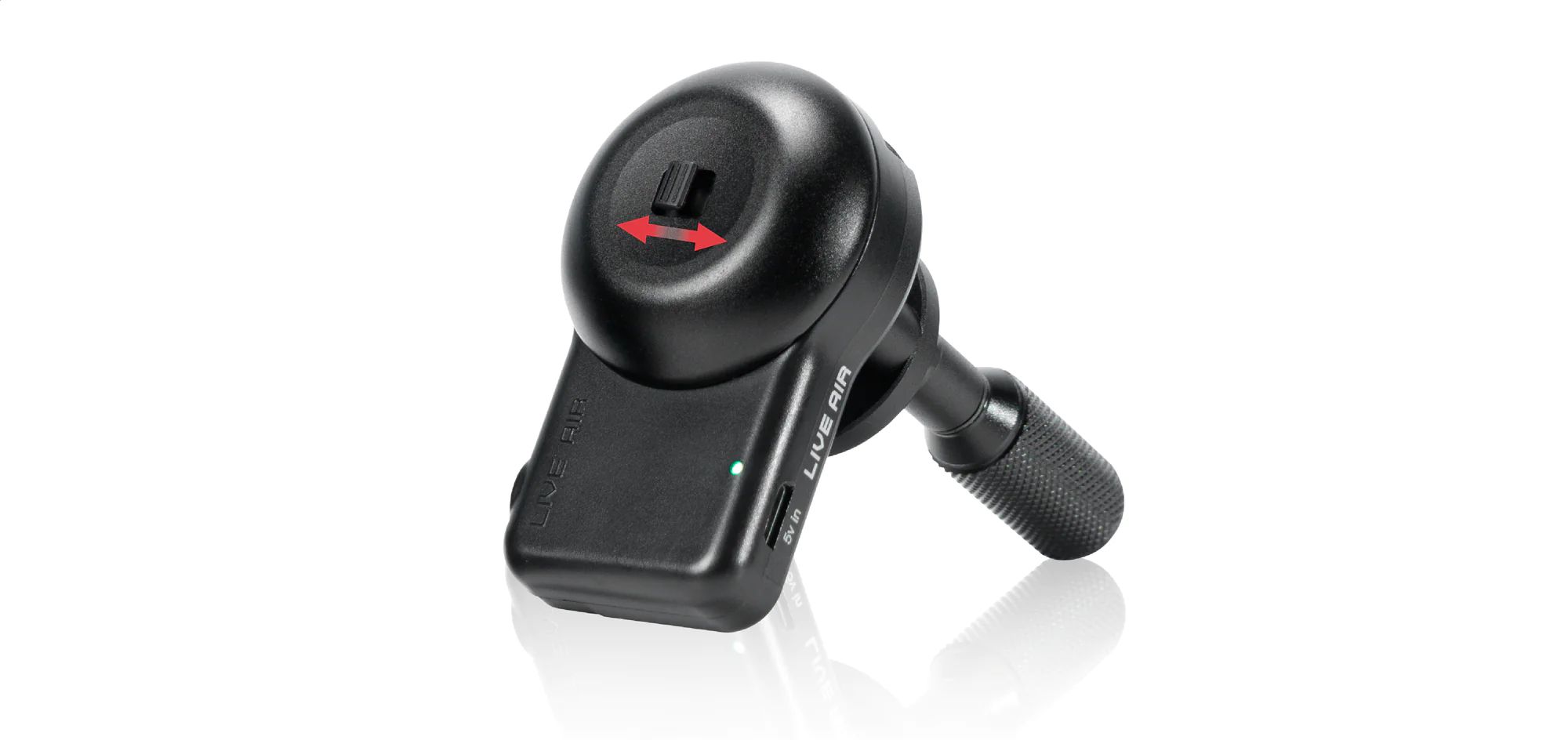

Push-Pull Controller
PDL-TC-AZP controller is a push-pull rod controller specially for focal length control.There are 3 adjustable speeds,The farthest control distance can reach 100 meters.
Universal Extension Cage
RIG AIR's unique handle sliding design, only need to adjust the height of the handle, it can be compatible with most of the SLR/SLR cameras on the market. Multiple expansion screw holes are reserved for easy installation of various kits.
