UNV NVR 16CH 2 SATA 16POE 4TB NVR302-16EP164TB | C.R. Kennedy

UNV NVR 16CH 2 SATA 16POE 4TB

UNV NVR 16CH 2 SATA 16POE 4TB

PRODUCT ENQUIRY
Brand: Uniview   |    Code: NVR302-16EP164TB
APN: 0235X0GG   |    Supplier Code:
Video/Audio Input
IP Video Input 16-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 320Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI:
4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/ Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30
Hard Disk
SATA 2 SATA interfaces
Capacity up to 8TB for each disk
Redundancy Redundant recording
Smart
VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search
Statistical Analysis People counting

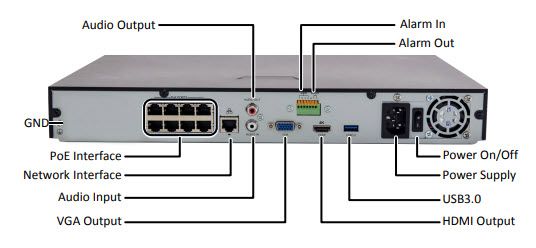

External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In 4-ch
Alarm Out 1-ch
PoE
Interface 16 independent 100 Mbps PoE network interfaces
Max Power Max 30W for single port
Max 240W in total ( 15W for each )
Supported Standard IEEE 802.3af/at
General
Power Supply 100 ~ 240 V AC Power Consumption: ≤ 20 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 380 mm × 315mm × 46 mm(15" × 12.4"×1.8")
Weight ( without HDD ) ≤2.48kg(5.47lb)
