UNV NVR 16CH 2 SATA 16 PoE 4TB **
- 16 channels input
- 16 PoE ports
- Up to 12 Megapixels resolution recording
- ONVIF cameras compatible
- Free EZCloud and EZView for remote access
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 320Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Decoding | |
| Decoding format | Ultra 265, H.265, H.264 |
| Live view/ Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30 |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | up to 8TB for each disk |
| Redundancy | Redundant recording |
| Smart | |
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search | Face search, Behavior search |
| Statistical Analysis | People counting |

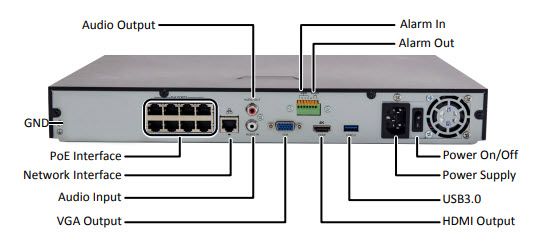

| External Interface | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| PoE | |
| Interface | 16 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30W for single port Max 240W in total ( 15W for each ) |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Power Supply | 100 ~ 240 V AC Power Consumption: ≤ 20 W( without HDD ) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions(W×D×H) | 380 mm × 315mm × 46 mm(15" × 12.4"×1.8") |
| Weight ( without HDD ) | ≤2.48kg（5.47lb） |
| Product Manuals | |
|---|---|
| UNV NVR 16CH 2 SATA 16 PoE 4TB ** - Product Manual | Specifications |
| UNV NVR 16CH 2 SATA 16 PoE 4TB ** - Specifications |
Brand: Uniview |
Code: NVR302-16EP164TB
MPN:
APN: 9319499199104 |
Supplier Code:
Brand: Uniview |
Code: NVR302-16EP164TB
MPN:
APN: 9319499199104 |
Supplier Code:
At a glance
- 16 channels input
- 16 PoE ports
- Up to 12 Megapixels resolution recording
- ONVIF cameras compatible
- Free EZCloud and EZView for remote access
DESCRIPTION
- Support Ultra 265/H.265/H.264 video formats
- 16-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Plug & Play with up to 8/16 independent PoE network interfaces
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
