UNV NVR 16CH 2 SATA 16 PoE 4TB

UNV NVR 16CH 2 SATA 16 PoE 4TB

  IN STOCK
PRODUCT ENQUIRY
  • 16 channels input
  • 16 PoE ports
  • Up to 12 Megapixels resolution recording
  • ONVIF cameras compatible
  • Free EZCloud and EZView for remote access
Brand: Uniview   |    Code: NVR302-16EP164TB
APN: 0235X0GG   |    Supplier Code:

DESCRIPTION

  • Support Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • HDMI and VGA simultaneous output
  • Up to 12 Megapixels resolution recording
  • 2 SATA HDDs, up to 10TB for each HDD
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • Plug & Play with up to 8/16 independent PoE network interfaces
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

FUNCTIONS


Video/Audio Input
IP Video Input 16-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 320Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI:
4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/ Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30
Hard Disk
SATA 2 SATA interfaces
Capacity up to 8TB for each disk
Redundancy Redundant recording
Smart
VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search
Statistical Analysis People counting

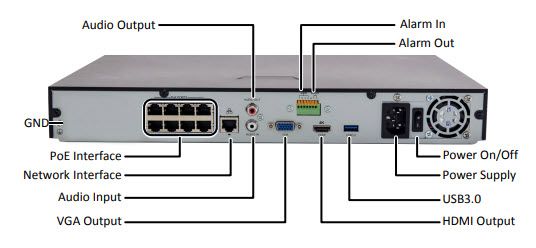

External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In 4-ch
Alarm Out 1-ch
PoE
Interface 16 independent 100 Mbps PoE network interfaces
Max Power Max 30W for single port
Max 240W in total ( 15W for each )
Supported Standard IEEE 802.3af/at
General
Power Supply 100 ~ 240 V AC Power Consumption: ≤ 20 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 380 mm × 315mm × 46 mm(15" × 12.4"×1.8")
Weight ( without HDD ) ≤2.48kg(5.47lb)
This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

FEATURES

DESCRIPTION

  • Support Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • HDMI and VGA simultaneous output
  • Up to 12 Megapixels resolution recording
  • 2 SATA HDDs, up to 10TB for each HDD
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • Plug & Play with up to 8/16 independent PoE network interfaces
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

FUNCTIONS


SPECIFICATIONS

Video/Audio Input
IP Video Input 16-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 320Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI:
4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/ Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30
Hard Disk
SATA 2 SATA interfaces
Capacity up to 8TB for each disk
Redundancy Redundant recording
Smart
VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search
Statistical Analysis People counting
External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In 4-ch
Alarm Out 1-ch
PoE
Interface 16 independent 100 Mbps PoE network interfaces
Max Power Max 30W for single port
Max 240W in total ( 15W for each )
Supported Standard IEEE 802.3af/at
General
Power Supply 100 ~ 240 V AC Power Consumption: ≤ 20 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 380 mm × 315mm × 46 mm(15" × 12.4"×1.8")
Weight ( without HDD ) ≤2.48kg(5.47lb)
