Video/Audio Input |
IP Video Input |
4-ch |
Two-way Audio Input |
1-ch, RCA |
Network |
Incoming Bandwidth |
40Mbps |
Outgoing Bandwidth |
64Mbps |
Remote Users |
128 |
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE,SSL,TLS,SNMP,HTTPS |
Video/Audio Output |
HDMI/VGA Output |
HDMI: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output |
1-ch, RCA |
Synchronous Playback |
4-ch |
Corridor Mode Screen |
3/4 |
Decoding |
Decoding format |
Ultra 265,H.265, H.264 |
Liveview/ Playback |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability |
1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1 |
Hard Disk |
SATA |
1 SATA interface |
Capacity |
up to 8TB for each disk |
Smart |
VCA Detection |
Face detection, Intrusion detection,Cross line detection,Audio detection,Defocus detection,Scene change detection, Auto tracking |
VCA Search |
Facesearch, Behavior search |
Statistical Analysis |
People counting |

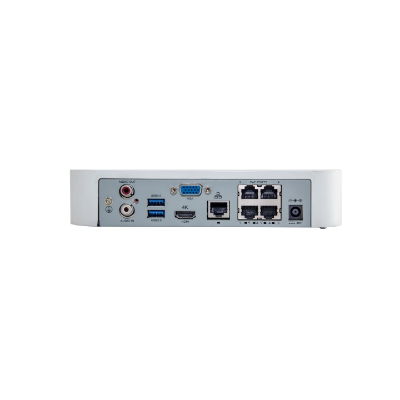

External Interface |
Network Interface |
1 RJ-45 10M/100M self-adaptive Ethernet Interface |
USB Interface |
Rear panel:2 x USB2.0 |
PoE |
Interface |
4 independent 100 Mbps PoE network interfaces |
Max Power |
Max 30W for single port Max 54W in total ( 13.5W for each) |
Supported Standard |
IEEE 802.3at, IEEE 802.3af |
General |
Power Supply |
48V DC Power Consumption: ≤ 8 W( without HDD ) |
Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
Dimensions(W×D×H) |
42 × 205 × 205mm ( 1.7" × 8.1" × 8.1" ) |
Weight ( without HDD ) |
0.59kg ( 1.3 lb ) |
