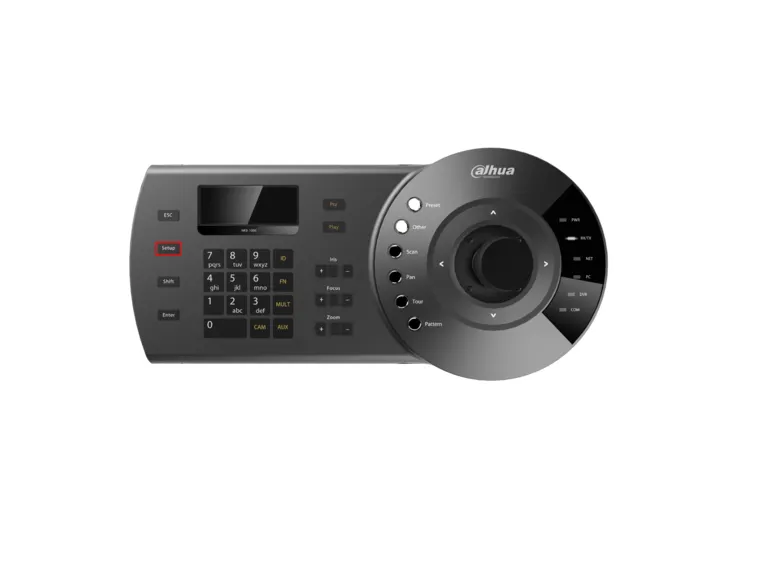

Dahua PTZ Keyboard controller

Dahua PTZ Keyboard controller

IN STOCK
10-14 DAYS
PRODUCT ENQUIRY
  • Dahua High Speed Dome
  • Dahua Standalone DVR
  • Network Video Server Connection
  • RS485, RS422 (reserved), USB, RS232 & Network
  • Three Dimensional Joystick Control of PTZ Functions
  • Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions
  • On-Screen Menu & User Operation Procedure Tips
  • Connect to SmartPSS or DSS platform via USB
Brand: Dahua   |    Code: NKB1000
APN: 6939554908422   |    Supplier Code:

Model

Model

NKB1000

General

Keyboard Key panel

Electromechanical

Joystick

3-axis, vector-solving, with twisting, return to-center head

Keyboard Connector

RJ-45, RS232, RS485, RS422 (reserved), USB

Keyboard Communication

Direct Mode, Network Mode

Direct Mode

Interface:

1 RS232/2 RS485

DVR Protocol: DH-2

Dome Protocol: DH-SD1/PELCO-D/PELCO-P, etc

Network Mode

Interface: RJ45

DVR/Network Dome:

IP Address/Port/Protocol

Display

LCD, 75.2mm×33.85mm

Maximum Number of Users

64 (including "admin")

Max RS485 Addresses (Each User)

256

Max Number of PTZ (IPC) That Can be Added over Network (Each User)

2048

Environmental

Power Supply

Power adapter, input 100V~240V 50Hz/60Hz, output DC12V/2A

Power Consumption

5W

Working Temperature

-10~+55℃

Working Humidity

10% ~ 90%

Atmosphere Pressure

86kpa~106kpa

Dimension

330mm×139mm×53mm (W×D×H)(height: 103mm including joystick)

Weight

1.3kg (Including package)
