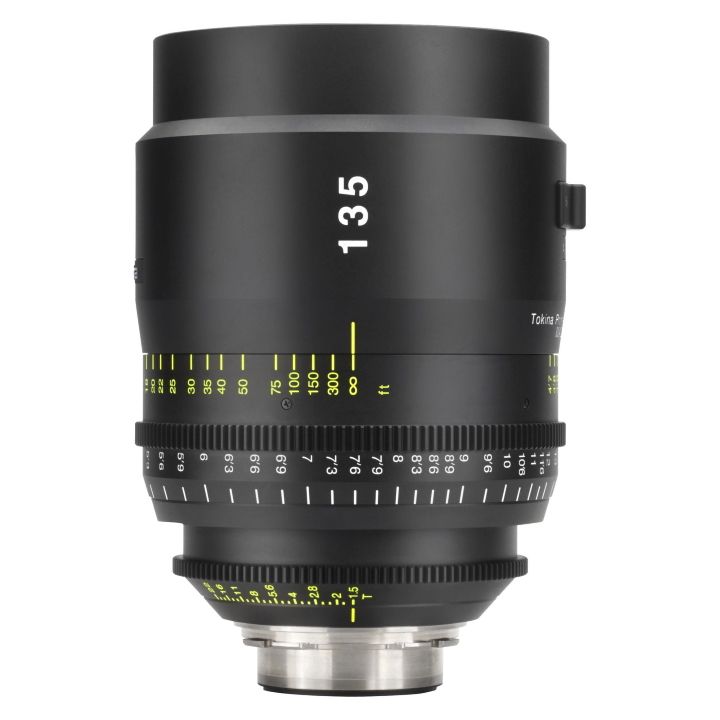

Focal Length |
135mm |
Lens Mount |
ARRI PL |
Format |
Large Format |
Image Circle |
46.7 mm |
Maximum T-Stop |
T1.5 |
Minimum T-Stop |
T22 |
Optical Design |
16 Elements in 14 Groups |
Iris Blades |
9 |
Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch |
Front Diameter |
114 mm |
Filter Thread |
112 mm |
Focus Scales |
Imperial |
Lens Support |
Lens Support Foot with 1/4"-20 Mounting Thread |
Length |
7.36" / 187 mm |
Weight |
6.59 lb / 2.99 kg |
To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!
To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.
High resolution modern optics featuring free form design for visual acuity matching the human eye. Fast T1.5 lenses with sensor coverage well beyond full frame. Craft images with more control in challenging lighting conditions. Keep your subject right where you left it with our virtually zero breathing optical design. Precision and versatility for the future. Cinematography is your art, ours is technology.
Focal Length |
135mm |
Lens Mount |
ARRI PL |
Format |
Large Format |
Image Circle |
46.7 mm |
Maximum T-Stop |
T1.5 |
Minimum T-Stop |
T22 |
Optical Design |
16 Elements in 14 Groups |
Iris Blades |
9 |
Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch |
Front Diameter |
114 mm |
Filter Thread |
112 mm |
Focus Scales |
Imperial |
Lens Support |
Lens Support Foot with 1/4"-20 Mounting Thread |
Length |
7.36" / 187 mm |
Weight |
6.59 lb / 2.99 kg |
