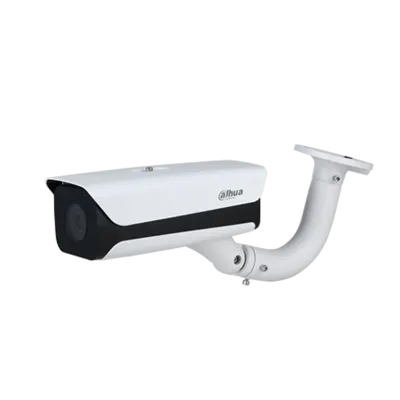

Dahua IP 4MP 2.7-13.5mm Shorter range ANPR LPR **

Loading
  • Dahua IP 4MP 2.7-13.5mm Shorter range ANPR LPR **

  •  Adopts high-performance CMOS image sensor and processor for in-depth extraction and analysis of vehicle information 24/7.
  •  Embraces deep learning algorithm for accurate recognition of vehicles without license plate, and vehicle model, vehicle logo, vehicle series, vehicle color, and more.
  •  Various signal, data and communication interfaces; supports connecting to extra devices, such as barrier.
  •  Built-in LED illuminator for simplified installation.
  •  Motorized vari-focal lens, easy for installation and commissioning.
  •  Integrated design with low power consumption, and IP67 protection grade.

Illuminator Number

6 IR illuminators, brightness adjustable

Image Sensor

1/1.8'' CMOS

Image Resolution

2688 × 1520 (OSD black strip excluded)

Video Resolution

Main stream: 4M (2688 × 1520), 1080p (1920 × 1080), 720p (1280 × 720)
Sub stream: 720p (1280 × 720), D1 (704 × 576, 704 × 480), CIF (352 × 288, 352 × 240)

Video Frame Rate

PAL: Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream: (1280 × 720@25 fps, 704 × 576@25fps, 352 × 288@25 fps)
NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 704 × 408@30 fps, 352 × 240@30 fps)

Bit Rate

H.264B: 32 Kbps–32768 Kbps
H.264M: 32 Kbps–32768 Kbps
H.264H: 32 Kbps–32768 Kbps
H.265: 32 Kbps–32768 Kbps
MJPEG: 512 Kbps–65536 Kbps

Video Compression

H.264B/H.264M/H.264H/H.265/MJPEG

Picture Encoding Format

JPEG

Noise Reduction

3D NR

White Balance

Full auto, auto color temperature range, customized color temperature

Electronic Shutter Speed

1/50–1/10,000 auto or manual

WDR

96 db

Edge Enhancement

Yes

Exposure Mode

Full auto, customized auto, customized

Iris Control

Auto iris (W:1.4—T:2.15)

Performance

Trigger Mode

Video detection; I/O coil

Shutter

Single shutter

Storage

1 built-in TF card slot. Supports Kingston 16 G, 32 G, 64 G, and 128 G; Dahua 16 G, 32 G, 64 G, and 128 G; SanDisk 16 G, 32 G, 64 G, and 128 G

Image Tampering Prevention

Yes. Video/picture can be checked through watermark and verification

Field of View

H: 114.6° (W)–48.3° (T)
V: 59.0° (W)–27.1° (T)
D: 141.6° (W)–55.5° (T)

Illumination Distance

12 m (39.37 ft)

Capture Distance

3 m–6 m (9.84 ft–19.69 ft)

Detected Width

3 m –4 m (9.84 ft–13.12 ft)

Min. Illumination

0.002 lx (built-in illuminator on)

Max. Detection Speed

30 km/h (18.64 miles per hour)

Alarm Event

Alarm for events of no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access

Security

Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

OSD Overlay

Supports overlay of time, address, plate, vehicle (color, type, accuracy), vehicle posture, counterfeit, checkpoint direction, trigger source, and custom

Automatic Network Replenishment (ANR)

Yes. Platform/FTP

Auto Registration

Yes

Intelligence

Vehicle Detection

Vehicle capture rate ≥ 99%

Vehicle Recognition

Supports recognizing vehicle type, vehicle color, features of driver and front-seat passenger, licensed/unlicensed vehicle. Vehicle recognition rate ≥ 95%

Video Metadata

Yes

Intelligent Track Frame

Intelligent frame display. Supports displaying vehicle plate and vehicle path

Port

Lens Mount

Φ16

Analog Output

1

Network

1 × 100/1000 M Ethernet port (RJ-45)

RS-485

2

RS-232

1

Alarm Input

3, optocoupler input (on-off input)

Alarm Output

3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers

Audio Input

1-channel RCA port

Audio Output

1-channel RCA port

General

Power Supply

12V DC, 24V AC, PoE+

Power Consumption

< 20 W

Operating Temperature

−30°C to +65°C (−22°F to +149 °F)

Operating Humidity

10%RH–90%RH (no condensation)

Casing

Metal + plastic

Protection Grade

IP67

Dimensions

486.7 mm × 124.3 mm × 185.5 mm (19.16" × 4.89" × 7.30") (L × W × H)

Net Weight

1.9 kg (4.19 lb)

Gross Weight

3.3 kg (7.28 lb)

Installation

Bent pole bracket (included)

Lens

Standard 2.7 mm–12 mm (0.11''–0.47'')

Certification

CE, FCC

Yes

RoHS

Yes
