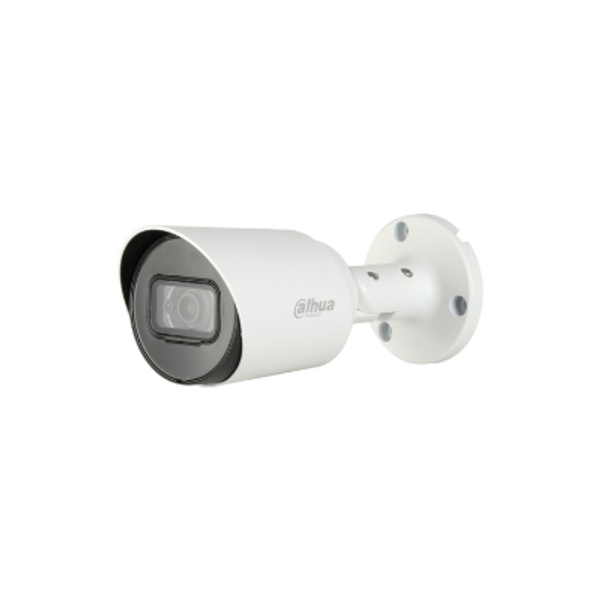

Dahua HDCVI 4MP IP67 IR 2.8mm Bullet Camera ** HACHFW1400TBS2 | C.R. Kennedy

Dahua HDCVI 4MP IP67 IR 2.8mm Bullet Camera **

Dahua HDCVI 4MP IP67 IR 2.8mm Bullet Camera **

IN STOCK
10-14 DAYS
PRODUCT ENQUIRY
  • Max. 30pfs@4MP
  • HD and SD output switchable
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • Max. IR length 30m, Smart IR
  • IP67, DC12V

Brand: Dahua   |    Code: HACHFW1400TBS2
APN: CRK9901131   |    Supplier Code: HACHFW1400TBS2

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.

* Audio input is available for some models of HDCVI cameras.

Long Distance Transmission

HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 700m for 4MP HD video via coaxial cable, and up to 300m via UTP cable.*

*Actual results verified by real-scene testing in Dahua's test laboratory.

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Smart IR

The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

Multi-formats

The camera supports multiple video formats including HDCVI, CVBS, and other two common HD analog formats in the market. This feature makes the camera compatible with not only XVRs, but also most existing HD/ SD DVRs.

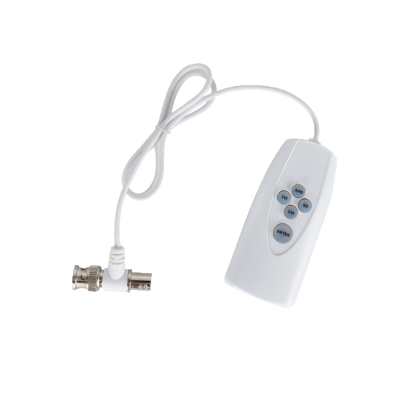

* Use OSD menu to switch HDCVI to other video formats. Use PFM820 UTC Controller to switch CVBS to HDCVI video format

Multi-language OSD

OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

Protection

The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Elaborate Design

In order to minimize the interference against on-going business activities, as well as meeting aesthetics requirements, the camera is designed with dark front face.

Experience superior 4MP video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Lite series 4MP HDCVI camera features a compact design and offers a high quality image with rich details at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
Camera
Image Sensor 1/2.7" CMOS
Effective Pixels 2560(H)×1440(V), 4MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98feet)
IR On/Off Control Auto / Manual
IR LEDs 1
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F2.0
Angle of View H: 76.4° (97.0°/48.6°) V: 41.6° (52°/27.9°)
Focus Control N/A
Close Focus Distance 1400mm (800mm/2500mm) 55.1'' (31.5''/98.4'')
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI Definition / Distance  Detect: 25px/m / 56m
Observe: 63px/m / 22m
Recognize: 125px/m / 11m
Identif: 250ppm / 6m
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Video
Resolution 4MP (2560×1440)
Frame Rate 25/30fps@4MP, 25/30fps@1080P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface N/A
Electrical
Power Supply 12V DC ±30%
Power Consumption Max. 4W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance IP67
Construction
Casing Aluminium
Dimensions 176mm×72.4mm×72.5mm (6.93"×2.85"×2.85")
Net Weight 0.37kg (0.82lb)
Gross Weight 0.48kg (1.06lb)
