Dahua Face Recognition Access Control Terminal DHI-ASI7213Y-T1 | C.R. Kennedy

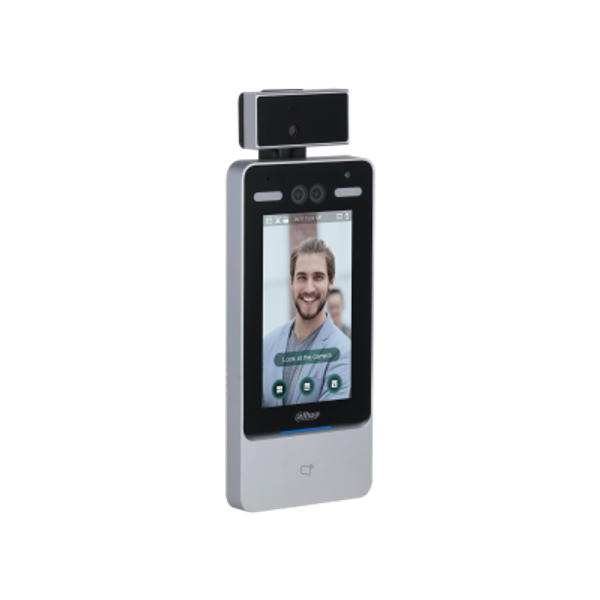

Dahua Face Recognition Access Control Terminal

Dahua Face Recognition Access Control Terminal

  IN STOCK
PRODUCT ENQUIRY

Face Recognition Access Controller with 7 Inch LCD display with resolution of 1024 × 600

Brand: Dahua   |    Code: DHI-ASI7213Y-T1
APN: 6939554930652   |    Supplier Code:
  •  7 Inch LCD display with resolution of 1024 × 600
  •  2 MP CMOS, WDR
  •  Auto fill light reduces light pollution
  •  Can hold 50,000 users, 50,000 face images, 50,000 cards, 50,000 password, 50 administrators, and 100,000 records
  •  Support face, IC card, password unlock and unlock through their combinations
  •  With face detection box; the largest face among faces that appear at the same time is recognized first; the maximum face size can be configured on the web
  •  Face-camera distance: 0.3 m–2.0 m; human height: 0.9 m–2.4 m (lens- ground distance: 1.4 m)
  •  With face recognition algorithm, the access controller can recognize more than 360 positions on human face
  •  Face recognition speed: 0.35 s per face
  •  Support liveness detection
  •  Accurate recognition in backlight and front light
  •  Various unlock status display modes protect user privacy
  •  Support enabling/disabling the temperature monitoring mode; temperature monitoring range is 30 °C to 45°C; temperature monitoring distance range is 0.3 m–1.2 m; temperature monitoring error is ≤0.5°C; report temperature anomaly alarm
  •  Support mask detection, report alarm of abnormal events without wearing a mask
  •  Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card exceeding threshold alarm
  •  Support general users, patrol users, VIP users, guest users, and special users

System

Main Processor

Embedded Processor

Internet Protocol

IPv4, RTSP, RTP, TCP, UDP, P2P

OSDP Protocol

Yes

Interoperability

ONVIF; CGI

SDK and API

Support SDK

Basic

Display

7-inch display

Screen Type

Capacitive Screen

Resolution

600 (H) × 1024 (V)

Camera

1/2.8" 2MP CMOS high definition WDR dual camera

WDR

120 dB

Light Compensation

Auto white light
Auto IR light

Status Indicator

1 indicator light. Red: Error; Green: Normal; Blue: Working

Voice Prompt

Yes

Housing Material

PC+ABS

Function

Unlock Mode

Card/remote/password/Face unlock and unlock through their cmbinations;
Face unlock under temperature monitoring mode

Card Reading Type

IC card

Period List

128

Holiday Period

128

First-Card Unlock

Yes

Remote Verification

Yes

Peripheral Card Reader

1 RS-485, 1 Wiegand

Multiple Authentication

Yes

Real-Time Surveillance

Yes

Web Configuration

Yes

Performance

Card Reading Distance

5 cm

Face Recognition Range

Face-camera distance: 0.3 m–2.0 m
Human height: 0.9 m–2.4 m

Face Verification Accuracy

99.5%

Face Recognition Time

0.35 s

Temperature Monitoring Range

30°C to 45°C (86°F to 113°F)

Temperature Monitoring Error

≤ 0.5 s

Temperature Monitoring Distance

0.3 m–1.2 m

Temperature Monitoring Height

135 cm–185 cm

(when temperature monitoring distance is 0.5 m)
120 cm–210 cm

(when temperature monitoring distance is 1.2 m)

Capacity

User Capacity

50, 000

Face Image Capacity

50, 000

Card Capacity

50, 000

Password Capacity

50, 000

Record Capacity

100, 000 records

Port

RS-485

1

Wiegand

1 (input or output)

USB

1 USB2.0 port

Network

1 100Mbps network port

Alarm Input

2 (switch quantity)

Alarm Output

2 (relay)

Alarm Linkage

Yes

Exit Button

1

Door Status Detection

1

Lock Control

1

Alarm

Anti-Passback

Yes

Tamper

Yes

Duress

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

Illegal Card Exceeding Threshold

Yes

General

Power Supply

Provided

Power Supply Mode

DC 9V–15V 1A

Power Consumption

≤ 12W

Product Dimensions

336.9 mm × 130.1 mm × 40.5 mm

(13.26" × 5.12" × 1.59")

Packaging Dimensions

Controller packging: 380 mm × 235 mm × 124 mm (14.96" × 9.25" × 4.88")
Protective case: 494 mm × 402 mm × 275 mm

(19.45" × 15.83" × 10.83")

Working Temperature

Temperature monitoring mode disabled: –10°C to 55°C (14°F to 131°F)
Temperature monitoring mode enabled: +10°C to +35°C (+50 °F to +95°F)

Working Humidity

10%RH–90%RH (non-condensing)

Working Environment

Indoor

Gross Weight

2.0 kg (4.41 lb)

Installation

Wall mount

Certifications

CE/FCC
