Dahua Thermal Kit 2 with NVR, tripods, black body

Dahua Thermal Kit 2 with NVR, tripods, black body

IN STOCK
5-7 DAYS
PRODUCT ENQUIRY
Brand: Dahua   |    Code: DH-THERMAL-KIT2

This is a Kit item made up of the following products:

FUNCTIONS

The Dahua Human Body Temperature Monitoring solution offers the latest hybrid thermal network camera that combines a Vanadium Oxide (VOx) sensor with a 2 MP visible-light sensor. The solution also provides a blackbody calibration device that maintains a constant temperature as a reference point for the thermal camera. The thermal camera coupled with the blackbody calibration device delivers a contactless solution for continuous, contactless, and non-invasive temperature monitoring.

Human Body Temperature Measuring technology assists in preventing the spread of viral diseases by allowing for quick, accurate detection of elevated body temperatures. Thermal imaging equipment can easily be installed and implemented to detect elevated body temperature in environments such as airports, hospitals, clinics, office buildings, cruise ships, and any large public gathering location.



Uncooled Vanadium Oxide (VOx) Technology

Dahua thermal cameras use an uncooled Vanadium Oxide (VOx) sensor that delivers higher thermal sensitivity in a more compact and cost-effective package. Vanadium Oxide cameras are also more reliable, as compared to other thermal imaging technologies, due to less moving parts.

High Thermal Sensitivity

The VOx detector offers high thermal sensitivity (≤ 50 mK) that allows Dahua thermal cameras to distinguish objects in a scene with minimal temperature differences. The camera captures detailed images where thermal contrast between object and background is minimal.

Smart Alarm

The camera is equipped with a white-light illuminator and an external speaker that can be triggered when the camera detects an abnormal event either via the thermal or the visible-light sensor. The camera also takes a snapshot of the scene and can record the snapshot.

Overview

The Dahua DH-HTM-KIT1 consists of Dahua TPCBF5421T *NEW* 5 Series Thermal Camera and Dahua DH-TPC-HBB-AHW Black Body temperature reference box. Featuring a dual lens, fixed bullet camera, this series provides an all-in-one solution for capturing video surveillance for indoor and outdoor applications. Together with Thermal and Visible Technology, the camera is the perfect solution for dark, small area monitoring applications. The series combines one thermal camera for monitoring in total darkness and one visible camera with Smart IR for confirming details.

https://www.crkennedy.co.nz/dahua-thermal-camera



  • Highly accurate temperature measurement (within ±0.3°)
  • Non-contact screening, pedestrians pass by quickly (undisturbed traffic flow)
  • Multi-person measurement, up to 15 persons at one time
  • Whit light and siren alerts when alarm is triggered
  • Uses A.I Technology to detect if people are not wearing masks
    • 1 x Dahua HTM Thermal camera
    • 1 x Dahua Black Body Reference Unit HTM Thermal Camera
    • 1 x Dahua Adapter plate for HTM Thermal camera or Black Body



    SPECIFICATIONS

    Thermal
    Effective Pixels 400 × 300
    Pixel Pitch 17μm
    Spectral Range 8μm–14μm
    Spectral Range 8μm–14μm
    Thermal Sensitivity (NETD) ≤40mK@f/1.0
    Focal Length 13 mm
    Field of View Horizontal: 30°,
    Vertical: 22.6°;
    Focus Mode Athermalized
    Aperture F/1.0
    Digital Detail Enhancement (DDE) Yes
    AGC Auto; Manual
    Noise Reduction 2D NR; 3D NR
    Image Flip 180°
    Color Palettes 18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2 .etc)
    Temperature Measurement Range 30°C to 45°C (86°F to 113°F)
    Temperature Accuracy ±0.3°C (with black body) when the environment temperature is 10°C to 30°C (50°F to 86°F)
    Visible
    Image Sensor 1/2.8 inch CMOS
    Effective Pixels 1920 × 1080
    Max. Resolution 2MP
    Electronic Shutter Speed 1/30000s–1s
    Min. Illumination Color: 0.01 Lux@F1.6
    Black & white: 0.001 Lux@F1.6
    0 Lux (IR on)
    IR Illumination Distance ≥50 m (164 ft)
    IR Illuminator On/Off Control Auto; Manual
    Focal Length 8 mm
    Aperture F/2.0
    Field of View Horizontal: 40°,
    Vertical: 22°
    Focus Mode Fixed
    Close Focus Distance 0.7 m (2.3 ft)
    BLC Yes
    WDR Yes
    HLC Yes
    White Balance Auto/Manual/Indoor/Outdoor/Tracking/Sodium lamp/Street lamp/Natural
    AGC Auto; Manual
    Noise Reduction 2D NR; 3D NR
    S/N Ratio ≥ 55 dB
    Region of Interest (RoI) Yes
    Image Flip 180°
    Exposure Compensation Yes
    Video and Audio
    Video Compression H.265/H.264M/H.264H/H.264B
    Resolution Thermal
    Main stream: 1280 × 1024, 1280 × 960 , 1280 × 720, 400 × 300. 1280 × 960 by default
    Sub stream: 640 × 512, 640 × 480, 400 × 300. 400×300 by default

    Visible
    Main stream: 1080P (1920 × 1080), 720P (1280 × 720), D1 (704 × 576). 1080P by default
    Sub stream: D1 (704 × 576), CIF (352 × 288). CIF by default
    Frame Rate Thermal (50Hz):
    Main stream: 1fps–25fps adjustable. 25fps by default; sub stream: 1fps–25fps adjustable. 15fps by default.

    Visible (50Hz):
    Main stream: 1fps–25fps adjustable. 25fps by default; sub stream: 1fps–25fps adjustable. 15fps by default.
    Audio Compression G.711a; G.711mu; AAC; PCM
    Network
    Protocol HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP;Multicast; SFTP; 802.1x;
    Edge Storage Micro SD card (256G)
    Interoperability ONVIF; CGI; DAHUA SDK
    Browser IE: IE8 and the later, and explorer with IE core
    Google: 42 and the earlier
    Firefox: 42 and the earlier
    User/Host 20 users at most (total bandwidth 64M)
    Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
    Certification
    Certifications CE: EN55032:2015; EN61000-3-2:2014
    FCC:CFR 47 FCC Part15 subpart B; ANSI C63.4-2014
    Port
    Ethernet 1 10M/100M Ethernet port (RJ-45)
    Audio Input 1
    Audio Output 1
    Alarm Input 2
    Alarm Output 1
    RS-485 1 pair
    Power
    Power Supply 12V±20% DC; POE (802.3af); ePOE
    Power Consumption Basic consumption: <8W (12V DC)
    Max consumption: <18W (12V DC, without power adapter)
    Environment
    Operating Temperature 10°C to +30°C (50°F to 86°F)
    Operating Humidity ≤93%@40°C (104°F)
    Ingress Protection IP67
    Structure
    Structure 291.6 mm × 103.8 mm × 96.7 mm( 11.48" × 4.09" ×3.81")
    Packaging Dimensions 365 mm × 175 mm × 176 mm (14.37" × 6.89" × 6.93" )
    Net Weight ≤1.8 kg (3.97 lb)
    Gross Weight ≤2.3 Kg (5.07 lb)

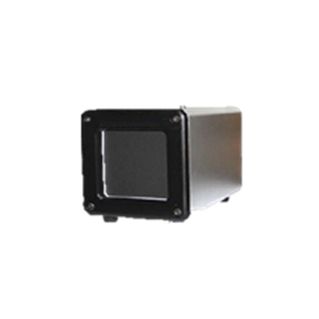

    Blackbody

    Working temperature Factory settings □35.0 □37.0 □40.0(Environment temperature 5.0°C ~ 50.0°C adjustable)
    Effective radiant surface 70mm×70mm
    Temperature resolution 0.1°C
    Temperature accuracy ±0.2℃(single point)
    Temperature stability ±( 0.1~0.2 )℃/30min
    Effective emissivity 0.97
    Temperature sensor Pt100
    Power supply 220VAC 50Hz 35W
    Net weight 1.8 kg
    Dimensions W110 mm× H120 mm ×D180 mm
    Ambient temperature/humidity 0℃~40℃/ ≤80%RH
