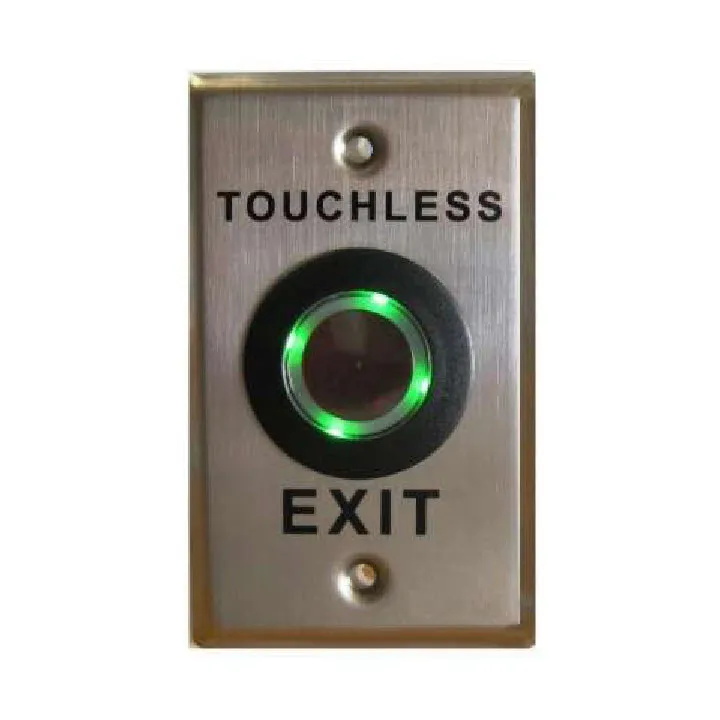

DFM SS Touchless exit button dual LED IP67 fly leads W70 x H115 x D26mm

Touchless Exit Button IP67

Can be activated by simple hand wave or approach. Compact design fit into standard mounting blocks.

Fully water proof IP67
Two isolated relay outputs NO/NC rated 1A/30vdc
Selectable timer: Momentary or 10sec
Stainless Steel Plate W70 x H115 x D26mm
LED Voltage 12vdc

Brand: RISCO | Code: DFMWEL3761S MPN:
APN: 9319499195236 | Supplier Code:

At a glance

Touchless Exit Button IP67

Can be activated by simple hand wave or approach. Compact design fit into standard mounting blocks.

Fully water proof IP67
Two isolated relay outputs NO/NC rated 1A/30vdc
Selectable timer: Momentary or 10sec
Stainless Steel Plate W70 x H115 x D26mm
LED Voltage 12vdc

Touchless Exit Button

Touchless button WEL3761 is uniquely designed for the application where sanitary conditions are needed, like hospitals, cleanrooms, food processing factories and laboratory. It also provides much easier access for the disabled to open doors through a sensor.

The switch can be activated by a simple hand wave or approach ? sanitary and easier access
No moving parts
Fully waterproof IP67 rated
Compact design ? can be easily fitted into a surface mounting box
Dual colour LED illumination
Two isolated relay outputs NO and NC ? can be used to drive strikes or magnet/electric relay locks directly
Output timer selectable: 2 or 10 seconds
Stainless steel or plastic mounting plate
